KOVYEL · CONDUCTOR CONNECTORS & EQUIPMENT CLAMPS JCD Meter Box Connection Clamps
METER SERVICE CONNECTION CLAMP · CATALOGUE-BACKED RANGE

JCD Meter Box Connection Clamps

Conductor Connectors & Equipment Clamps · Drawing-confirmed project supply

KOVYEL JCD meter box clamps connect incoming aluminium, copper or transition conductors to metering and household service branches. The range covers single-main models from JCD-16 to JCD-300 and main-to-branch models with 25-70 mm² branch conductors.

Drawing-Matched Project RFQ Supply JCD model and rated-current table confirmed by KOVYEL
Product categoryConductor Connectors & Equipment Clamps
Representative rangeJCD-16 to JCD-300 plus JCD-25/70 to JCD-300/70 transition models
Technical basisJCD model and rated-current table confirmed by KOVYEL
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

JCD Meter Box Connection Clamps: product overview

KOVYEL JCD meter box clamps connect incoming aluminium, copper or transition conductors to metering and household service branches. The range covers single-main models from JCD-16 to JCD-300 and main-to-branch models with 25-70 mm² branch conductors.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductJCD Meter Box Connection Clamps
CategoryConductor Connectors & Equipment Clamps
Representative range / modelsJCD-16 to JCD-300 plus JCD-25/70 to JCD-300/70 transition models
Standards / reference basisJCD model and rated-current table confirmed by KOVYEL
Typical applicationsMeter box incoming connections; Household service branches; Urban and rural low-voltage networks; Copper-aluminium transition points

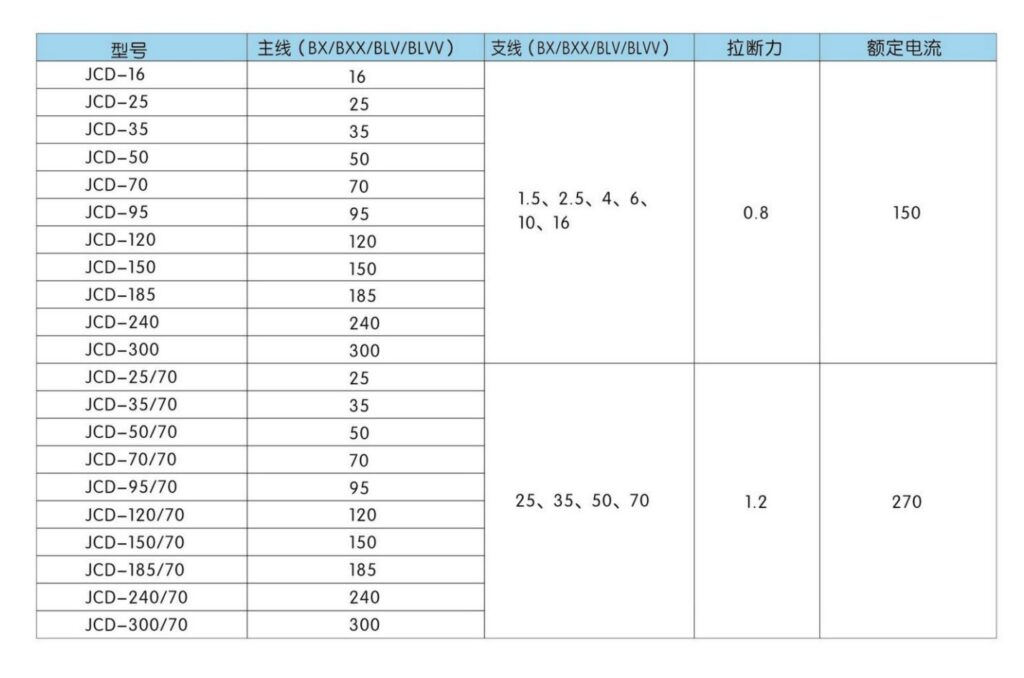

Single-main modelsJCD-16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300
Single-main branch range1.5, 2.5, 4, 6, 10 or 16 mm²
Single-main rated current150 A
Transition modelsJCD-25/70, 35/70, 50/70, 70/70, 95/70, 120/70, 150/70, 185/70, 240/70 and 300/70
Transition branch range25, 35, 50 or 70 mm²
Transition rated current270 A
System voltage300/500 V and 600/1000 V applications described in the product range
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

Meter box incoming connections

C-type constant-pressure connector body

02

Household service branches

Aluminium-alloy construction

03

Urban and rural low-voltage networks

Copper and aluminium conductor combinations

04

Copper-aluminium transition points

Single-main and main-to-branch variants

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

Match the exact JCD Meter Box Connection Clamps Supplier model to the approved cable, equipment and installation schedule before comparing the supply scope and required acceptance documents.

JCD Meter Box Connection Clamps Supplier: equipment-terminal and conductor transition approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for JCD Meter Box Connection Clamps Supplier.

ItemInformation for technical approval
01Exact offered model and BOQ item for JCD Meter Box Connection Clamps Supplier, with the controlling drawing revision.
02Conductor designation, material, construction and actual size.
03Meter-box or transformer terminal geometry and required contact-material transition.
04Connection duty, matched fastening parts, installation instructions and acceptance records.

Define the BOQ supply scope

Identify both the conductor and the meter-box or transformer terminal on the approved connection drawing. Define the exact clamp, contact-material transition and included fastening parts. Clarify the adjoining equipment and conductor supply separately.

Technical submittals and inspection requirements

Provide conductor construction, terminal geometry and project connection duty. Request the exact offered-model drawing, contact-material information, installation procedure and specified connection acceptance records. Confirm the terminal and conductor interfaces before approving a substitution.

Packing, identification and delivery

Label connectors by the selected model and main/branch conductor reference. Reconcile quantities by connection type rather than combining different conductor pairs in an unspecified lot.

Buyer questions

Can one conductor cross-section define the connector model?

Provide both main and branch conductor materials, designations and cross-sections. Select the exact model from the applicable matrix and confirm the matched grooves and installation procedure.

How should JCD Meter Box Connection Clamps Supplier be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

PRODUCT SELECTION SUMMARY

JCD Meter Box Connection Clamps: key facts for technical buyers.

Concise catalogue facts for model comparison, product matching and AI-assisted technical research.

What is JCD Meter Box Connection Clamps?

KOVYEL JCD meter box clamps connect incoming aluminium, copper or transition conductors to metering and household service branches. The range covers single-main models from JCD-16 to JCD-300 and main-to-branch models with 25-70 mm² branch conductors. The listed range is JCD-16 to JCD-300 plus JCD-25/70 to JCD-300/70 transition models.

Which models or ratings are covered?

The published KOVYEL range is JCD-16 to JCD-300 plus JCD-25/70 to JCD-300/70 transition models. Final configuration is confirmed against the required electrical, mechanical and dimensional data.

What information is needed to select JCD Meter Box Connection Clamps?

For a matched quotation, provide: Required JCD model, single-main or transition arrangement and quantity; Main and branch conductor materials, cross-sections and actual diameters; Required branch count, system voltage and operating current; Meter-box dimensions, conductor routing and connection drawing; Insulation, terminal protection and installation environment requirements; Required project standards and test documents, destination and delivery schedule.

QUOTATION CHECKLIST

Send these details for an accurate offer.

A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.

01Required JCD model, single-main or transition arrangement and quantity
02Main and branch conductor materials, cross-sections and actual diameters
03Required branch count, system voltage and operating current
04Meter-box dimensions, conductor routing and connection drawing
05Insulation, terminal protection and installation environment requirements
06Required project standards and test documents, destination and delivery schedule

Have a BOQ, drawing or equipment schedule?

Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.

Send Project RFQ →

PRODUCT AND INTERFACE SELECTION

Compare service and distribution branch connectors.

Confirm main and branch conductor sizes, insulation construction, voltage, current and enclosure geometry. Meter-box, piercing and protected T-type connections require their own interface and installation checks.
