Surge Arresters & Monitoring
Surge arresters, disconnectors, counters and monitoring equipment for distribution, transmission and substation insulation coordination. Request a quotation with the system single-line diagram and arrester schedule.
Specify system nominal and highest voltage, grounding method, continuous operating voltage or MCOV/Uc, nominal discharge current, residual-voltage requirement, energy or line-discharge duty, creepage distance, pollution severity, housing material, pressure-relief or disconnector requirement, mounting and lead arrangement. Identify counter or online-monitoring interfaces separately.
Arrester class, protective level, short-circuit performance, IEC/IEEE compliance and environmental suitability must be supported by documents and test evidence for the exact offered model. Coordinate the arrester with the protected equipment insulation level and the project insulation-coordination study.
Catalogue products with project-specific matching.
Final model, material, dimensions, standard and test scope are confirmed against the approved RFQ data.
Keep arrester selection separate from monitoring accessory selection
Identify the protection application and the offered arrester type before reviewing electrical values. Counters, monitors and other accessories also need their own interface and installation requirements.
| Selection point | What the purchase specification should identify |
|---|---|
| System conditions | System and equipment requirements, grounding arrangement and service conditions specified by the responsible project engineer. |
| Arrester technical schedule | Required continuous operating and rated conditions, protection and discharge requirements, and applicable model-specific data and test scope. |
| Installation interface | Housing, clearances, mounting dimensions, conductor terminals and environmental requirements. |
| Monitoring scope | Exact counter or monitor function, compatibility with the offered arrester and the required mounting and connection details. |
For the quotation, separate the complete arrester, mounting parts and requested monitoring accessories. Use the technical-document schedule to identify evidence needed for each offered model. A catalogue voltage label alone is not a completed arrester selection.

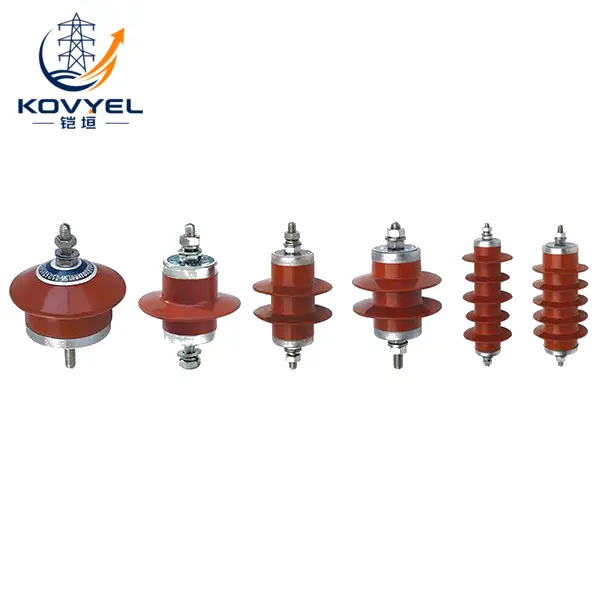

Distribution-Class Surge Arrester
KOVYEL Distribution-Clas…
Pollution-Resistant Surge Arrester
KOVYEL Pollution-Resista…

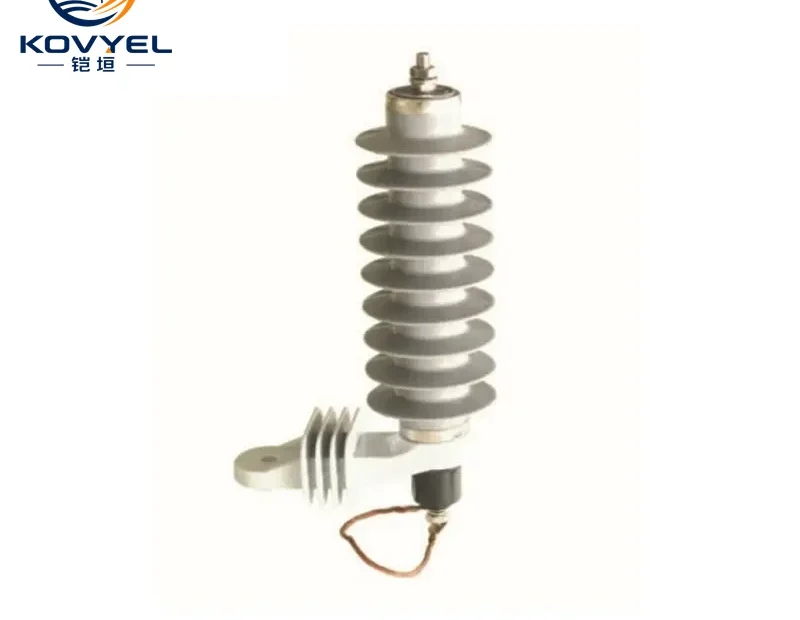

Polymer Type Lightning Arrester
Polymer Type Lightning A…

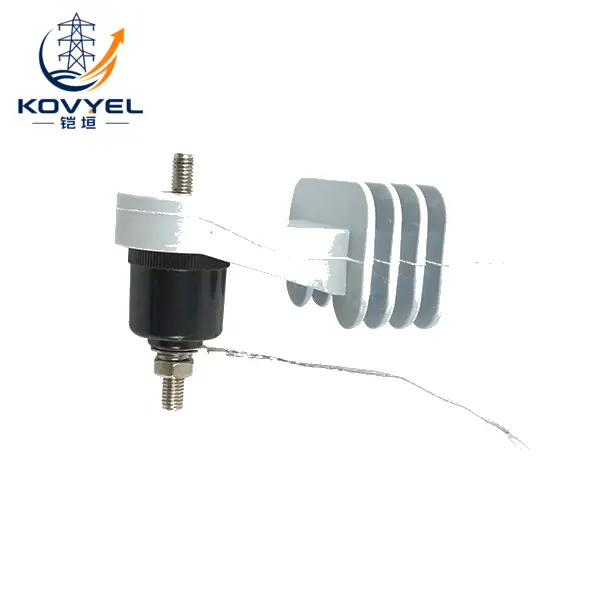

Surge Arrester Disconnector Counter and Online Monitor
KOVYEL Surge Arrester Di…
Transmission Line Surge Arrester
KOVYEL Transmission Line…
PRODUCT RANGE AND PROCUREMENT
