ABC Accessories & Insulation Piercing Connectors · Drawing-confirmed project supply

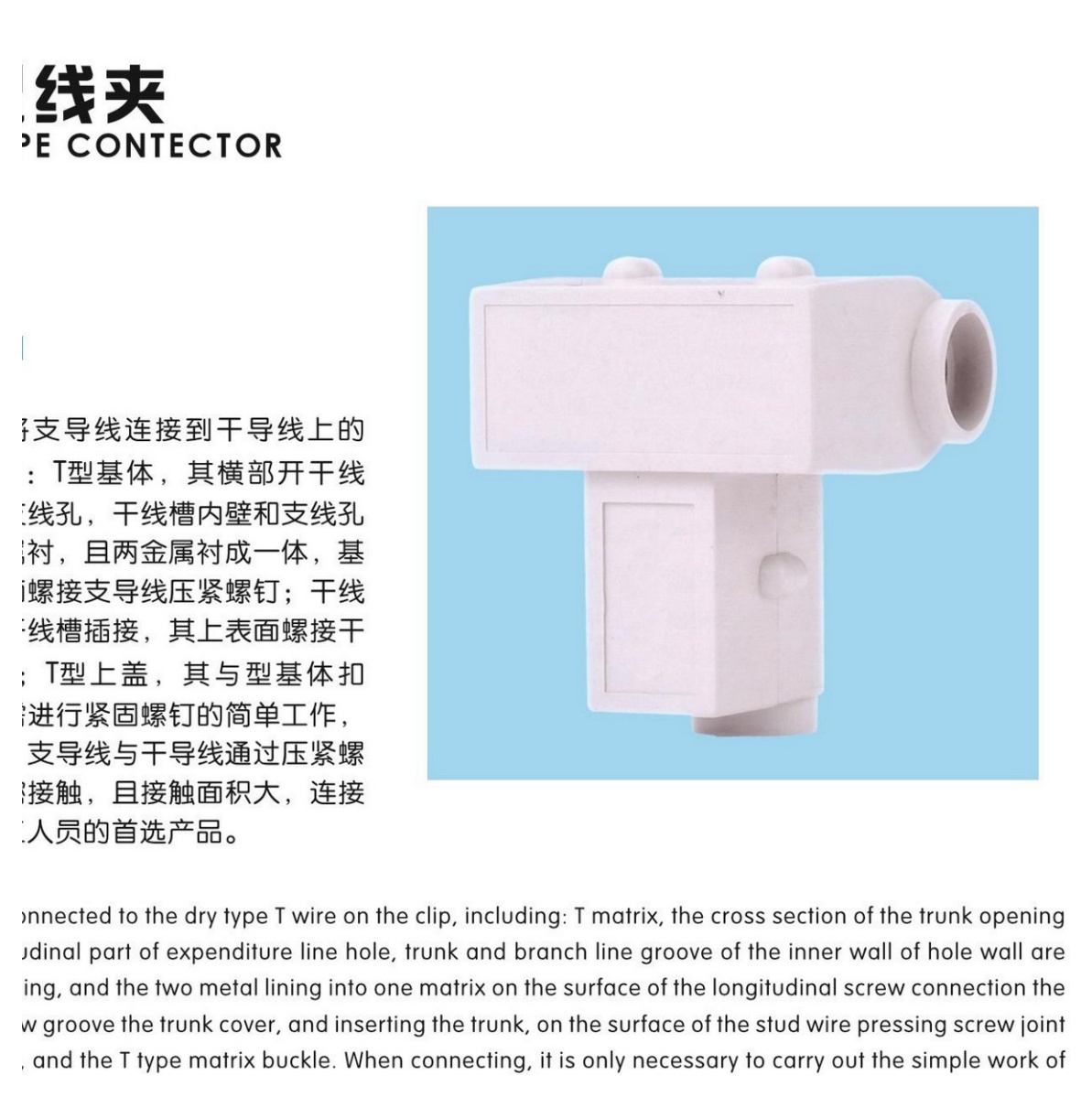

KOVYEL insulated T-type connectors form compact branch joints on live-distribution conductor layouts. The insulated shell and plated metal contact components support direct T connections with main conductors from 6 to 300 mm².
KOVYEL insulated T-type connectors form compact branch joints on live-distribution conductor layouts. The insulated shell and plated metal contact components support direct T connections with main conductors from 6 to 300 mm².
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | Insulated T-Type Branch Connectors |
|---|---|
| Category | ABC Accessories & Insulation Piercing Connectors |
| Representative range / models | T-25/16, T-70/35, T-120/70, T-240/95 and T-300/240 |
| Standards / reference basis | Insulated T-type connector model and conductor data confirmed by KOVYEL |
| Typical applications | Insulated main-line branch connections; Compact distribution cabinets; Building power distribution; Conductor T joints with limited installation space |

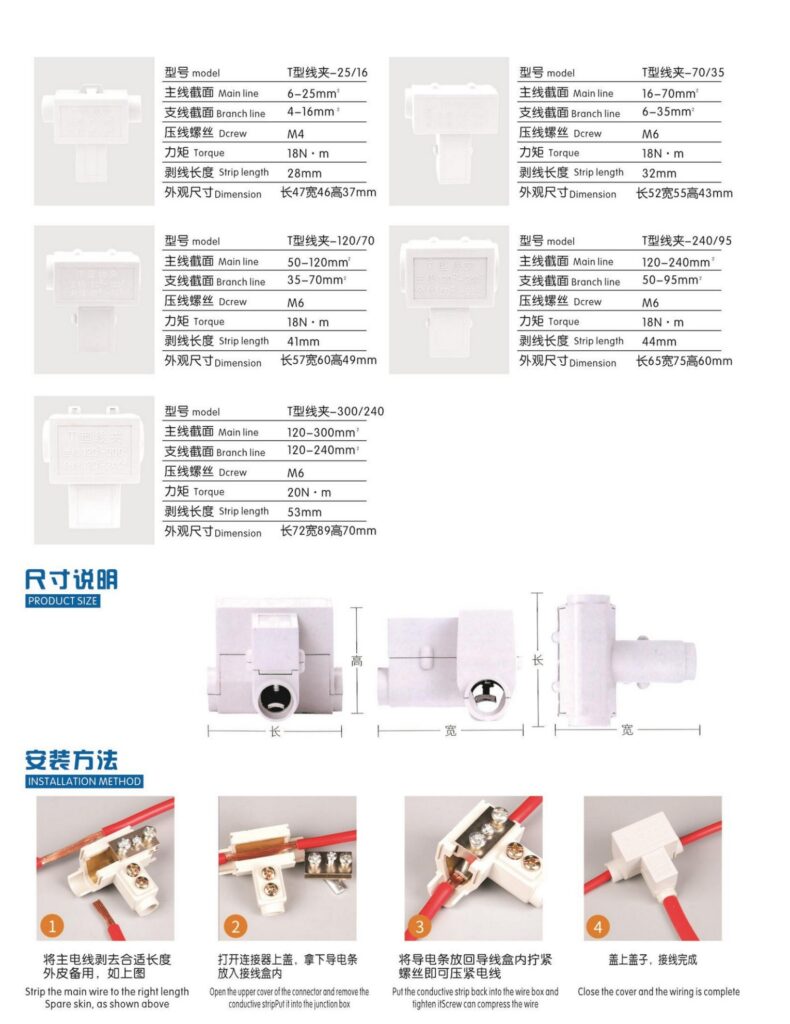

| T-25/16 | Main line 6-25 mm²; branch 4-16 mm²; M4 screw |
| T-70/35 | Main line 16-70 mm²; branch 6-35 mm²; M6 screw |
| T-120/70 | Main line 50-120 mm²; branch 35-70 mm²; M6 screw |
| T-240/95 | Main line 120-240 mm²; branch 50-95 mm²; M6 screw |
| T-300/240 | Main line 120-300 mm²; branch 120-240 mm²; M6 screw |
| Installation torque | 18-20 N·m depending on model |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Fully insulated T-shaped enclosure
Main line remains continuous
Compact screw-clamped contact assembly
Five conductor-range combinations
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL insulated T-type connectors form compact branch joints on live-distribution conductor layouts. The insulated shell and plated metal contact components support direct T connections with main conductors from 6 to 300 mm². The listed range is T-25/16, T-70/35, T-120/70, T-240/95 and T-300/240.
The published KOVYEL range is T-25/16, T-70/35, T-120/70, T-240/95 and T-300/240. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
