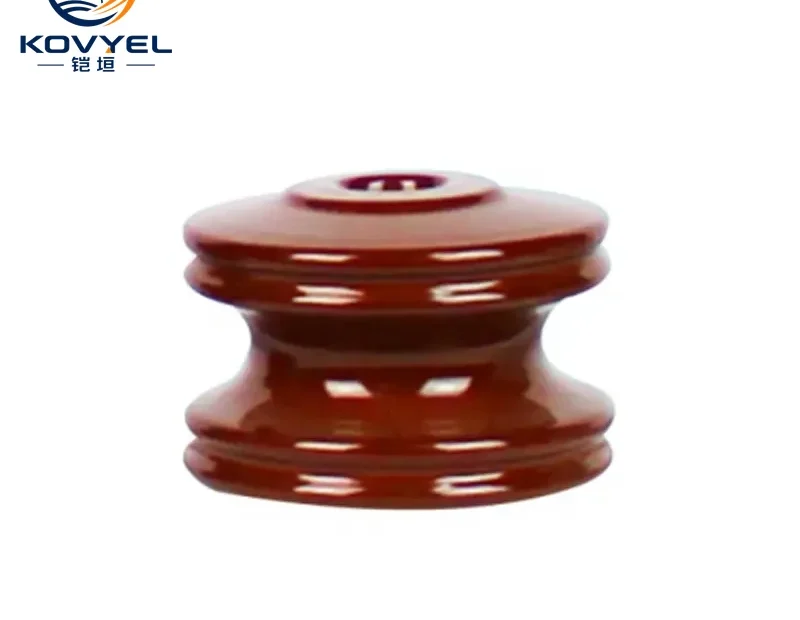

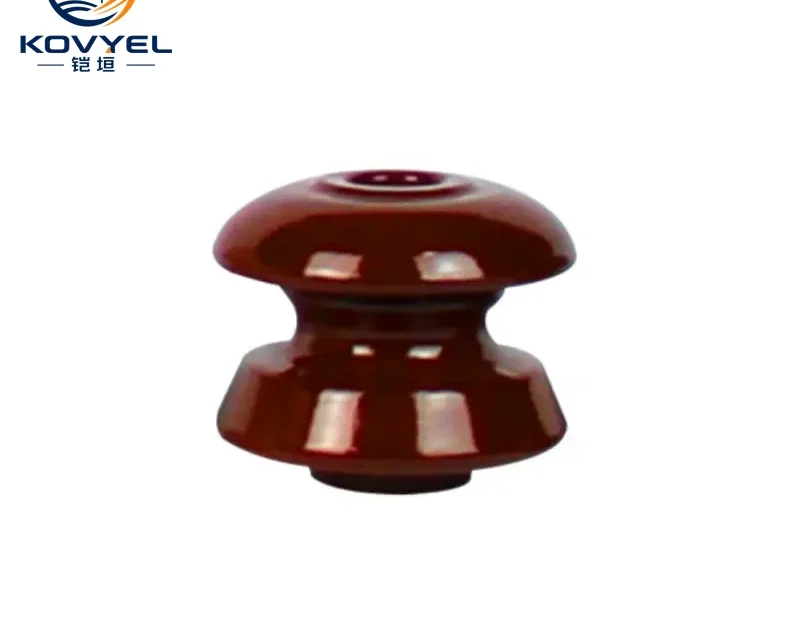

Shackle & Spool Insulators
Compare shackle and spool insulator families and spool insulators for the approved conductor-support arrangement. Confirm system voltage, conductor position, dimensions, required mechanical duty and mounting interface against the utility drawing. Send the material and insulation specification, matched fixing hardware, installation conditions and quantities for quotation. Product family names do not replace the dimensional and assembly checks needed for final selection.
Catalogue products with project-specific matching.
Final model, material, dimensions, standard and test scope are confirmed against the approved RFQ data.
Match shackle and spool insulators to the bracket
Use the conductor arrangement and support drawing to select the insulator profile and mounting hardware. Similar external shapes can have different mounting dimensions.
Include these fields in your RFQ
- Shackle or spool type and material
- Overall dimensions, bore and groove profile
- Conductor arrangement and mechanical duty
- Electrical and environmental requirements
- Bracket, bolt and assembly scope
Send itemised quantities with the relevant drawing or technical schedule. The quotation should identify the offered model, included accessories and any unresolved selection inputs.
Request a quotation for Shackle & Spool InsulatorsPRODUCT RANGE AND PROCUREMENT
