KOVYEL · CONDUCTOR CONNECTORS & EQUIPMENT CLAMPS JXT2 Series Protected T-Type Connectors
PROTECTED T-TYPE BRANCH CONNECTOR · CATALOGUE-BACKED RANGE

JXT2 Series Protected T-Type Connectors

Conductor Connectors & Equipment Clamps · Drawing-confirmed project supply

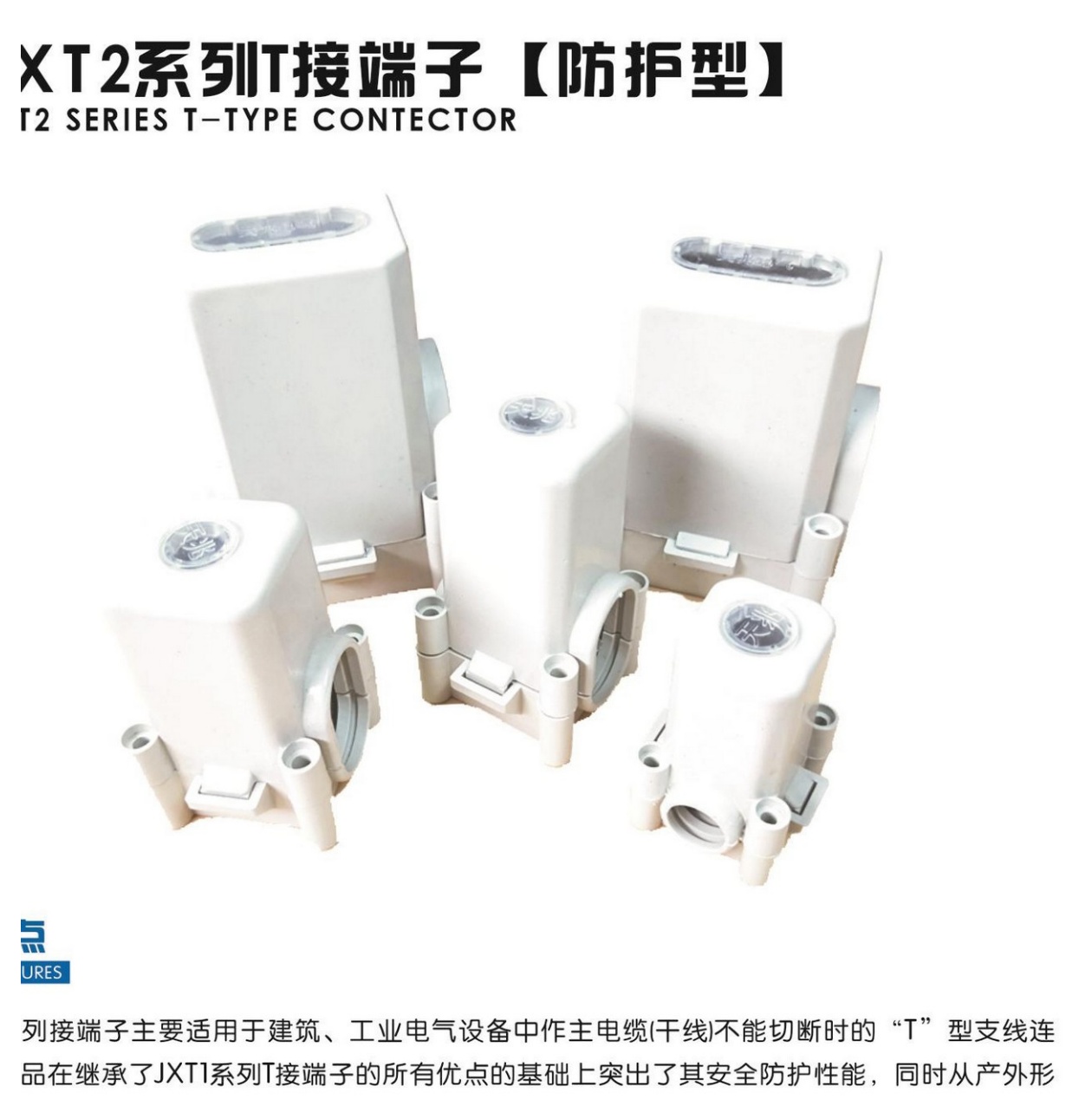

KOVYEL JXT2 protected T-type connectors provide enclosed branch joints for uninterrupted main conductors in building and industrial distribution systems. The family covers main conductors up to 300 mm² and branches up to 240 mm².

Drawing-Matched Project RFQ Supply JXT2 model, current, conductor and torque data confirmed by KOVYEL
Product categoryConductor Connectors & Equipment Clamps
Representative rangeJXT2-50(35), JXT2-70(50), JXT2-95(70), JXT2-150(120) and JXT2-240(185)
Technical basisJXT2 model, current, conductor and torque data confirmed by KOVYEL
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

JXT2 Series Protected T-Type Connectors: product overview

KOVYEL JXT2 protected T-type connectors provide enclosed branch joints for uninterrupted main conductors in building and industrial distribution systems. The family covers main conductors up to 300 mm² and branches up to 240 mm².

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductJXT2 Series Protected T-Type Connectors
CategoryConductor Connectors & Equipment Clamps
Representative range / modelsJXT2-50(35), JXT2-70(50), JXT2-95(70), JXT2-150(120) and JXT2-240(185)
Standards / reference basisJXT2 model, current, conductor and torque data confirmed by KOVYEL
Typical applicationsBuilding main-line T connections; Industrial distribution branches; Enclosed aluminium-to-aluminium joints; Compact protected conductor taps

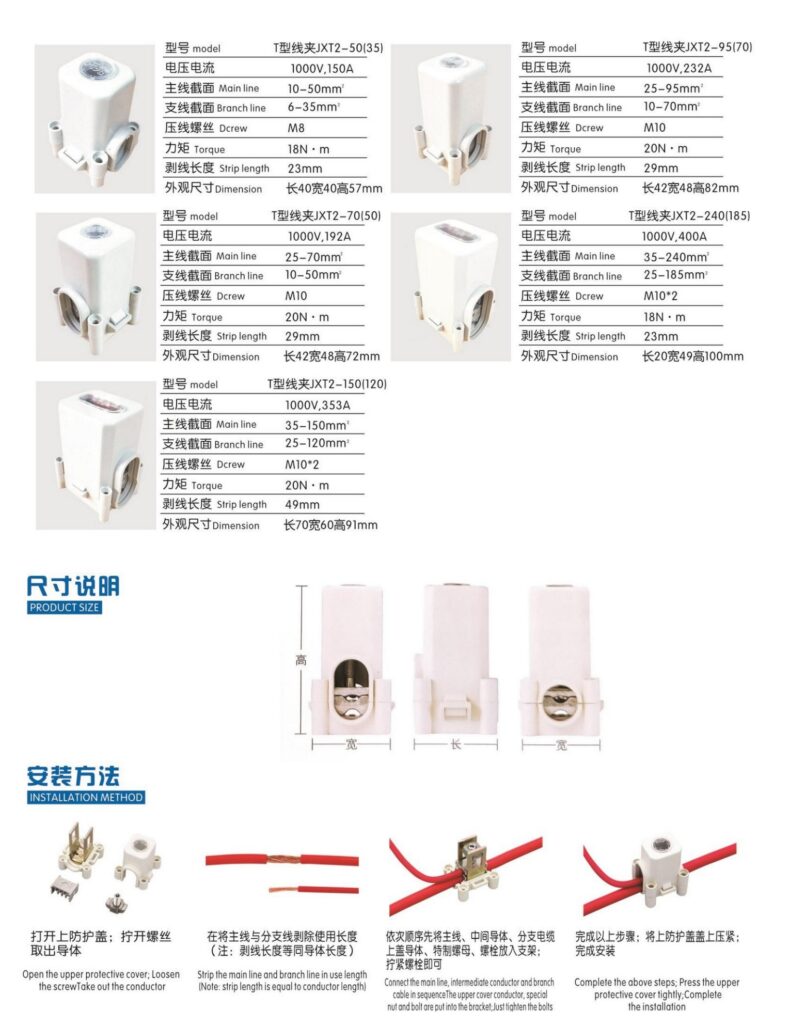

JXT2-50(35)1000 V, 150 A; main 10-50 mm²; branch 6-35 mm²
JXT2-70(50)1000 V, 192 A; main 25-70 mm²; branch 10-50 mm²
JXT2-95(70)1000 V, 232 A; main 25-95 mm²; branch 10-70 mm²
JXT2-150(120)1000 V, 353 A; main 35-150 mm²; branch 25-120 mm²
JXT2-240(185)1000 V, 400 A; main 35-240 mm²; branch 25-185 mm²
Torque18-20 N·m depending on model
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

Building main-line T connections

Protected flame-retardant enclosure

02

Industrial distribution branches

Main conductor remains uncut

03

Enclosed aluminium-to-aluminium joints

Tin-plated contact parts

04

Compact protected conductor taps

Compact internal pressure connection

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

KOVYEL JXT2 protected T-type connectors provide enclosed branch joints for uninterrupted main conductors in building and industrial distribution systems. The family covers main conductors up to 300 mm² and branches up to 240 mm².

JXT2 Series Protected T-Type Connectors: insulated main-to-branch connection approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for JXT2 Series Protected T-Type Connectors.

ItemInformation for technical approval
01Exact JXT2 model and main and branch conductor sizes and materials.
02Main-conductor continuity and approved T-branch installation arrangement.
03Enclosure clearance, insulation and branch-exit protection requirements.
04Installation method, required connection duty and acceptance documentation.

Define the BOQ supply scope

Identify the main and branch conductors on each connector BOQ line. Define the exact clamp model and included fastening parts and clarify whether any adjoining conductor, insulation or installation accessories are included.

Technical submittals and inspection requirements

Submit both conductor designations, insulation details and the required branch arrangement. Request the exact offered-model selection matrix, installation instructions, enclosure or sealing details and specified connection acceptance records. Confirm tool, tightening and end-protection requirements for the proposed conductor pair.

Packing, identification and delivery

Label connectors by the selected model and main/branch conductor reference. Reconcile quantities by connection type rather than combining different conductor pairs in an unspecified lot.

Buyer questions

Can one conductor cross-section define the connector model?

Provide both main and branch conductor materials, designations and cross-sections. Select the exact model from the applicable matrix and confirm the matched grooves and installation procedure.

How should JXT2 Series Protected T-Type Connectors be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

PRODUCT SELECTION SUMMARY

JXT2 Series Protected T-Type Connectors: key facts for technical buyers.

Concise catalogue facts for model comparison, product matching and AI-assisted technical research.

What is JXT2 Series Protected T-Type Connectors?

KOVYEL JXT2 protected T-type connectors provide enclosed branch joints for uninterrupted main conductors in building and industrial distribution systems. The family covers main conductors up to 300 mm² and branches up to 240 mm². The listed range is JXT2-50(35), JXT2-70(50), JXT2-95(70), JXT2-150(120) and JXT2-240(185).

Which models or ratings are covered?

The published KOVYEL range is JXT2-50(35), JXT2-70(50), JXT2-95(70), JXT2-150(120) and JXT2-240(185). Final configuration is confirmed against the required electrical, mechanical and dimensional data.

What information is needed to select JXT2 Series Protected T-Type Connectors?

For a matched quotation, provide: Required JXT2 model and quantity; Main and branch conductor materials, cross-sections and insulation details; System voltage, operating current and conductor temperature requirements; Main-conductor routing, branch direction and available installation space; Enclosure dimensions, access for tightening and approved connection drawing; Required project standards and test documents, destination and delivery schedule.

QUOTATION CHECKLIST

Send these details for an accurate offer.

A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.

01Required JXT2 model and quantity
02Main and branch conductor materials, cross-sections and insulation details
03System voltage, operating current and conductor temperature requirements
04Main-conductor routing, branch direction and available installation space
05Enclosure dimensions, access for tightening and approved connection drawing
06Required project standards and test documents, destination and delivery schedule

Have a BOQ, drawing or equipment schedule?

Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.

Send Project RFQ →

PRODUCT AND INTERFACE SELECTION

Compare service and distribution branch connectors.

Confirm main and branch conductor sizes, insulation construction, voltage, current and enclosure geometry. Meter-box, piercing and protected T-type connections require their own interface and installation checks.
