KOVYEL SBG and SBGB transformer transition clamps connect transformer terminal studs to aluminium conductors through copper-aluminium transition contact sections. Models cover M10-M24 studs and conductor sections from 35 to 400 mm².
KOVYEL SBG and SBGB transformer transition clamps connect transformer terminal studs to aluminium conductors through copper-aluminium transition contact sections. Models cover M10-M24 studs and conductor sections from 35 to 400 mm².
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | SBG & SBGB Transformer Transition Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | SBG1-35/120-M10 to SBG1-185/300-M22; SBGB-M12 to SBGB-M24 |
| Standards / reference basis | SBG1 and SBGB transformer clamp tables and terminal requirements confirmed by KOVYEL |
| Typical applications | Transformer bushing terminal connections; Copper-to-aluminium transitions; Distribution transformer outgoing conductors; Stud-to-conductor equipment interfaces |
| SBG1 stud range | M10, M12, M14×1.5, M16, M18, M20 and M22 |
| SBG1 conductor range | 35-300 mm² depending on model |
| SBG1 body dimensions | Width 54-70 mm; length 70-105 mm |

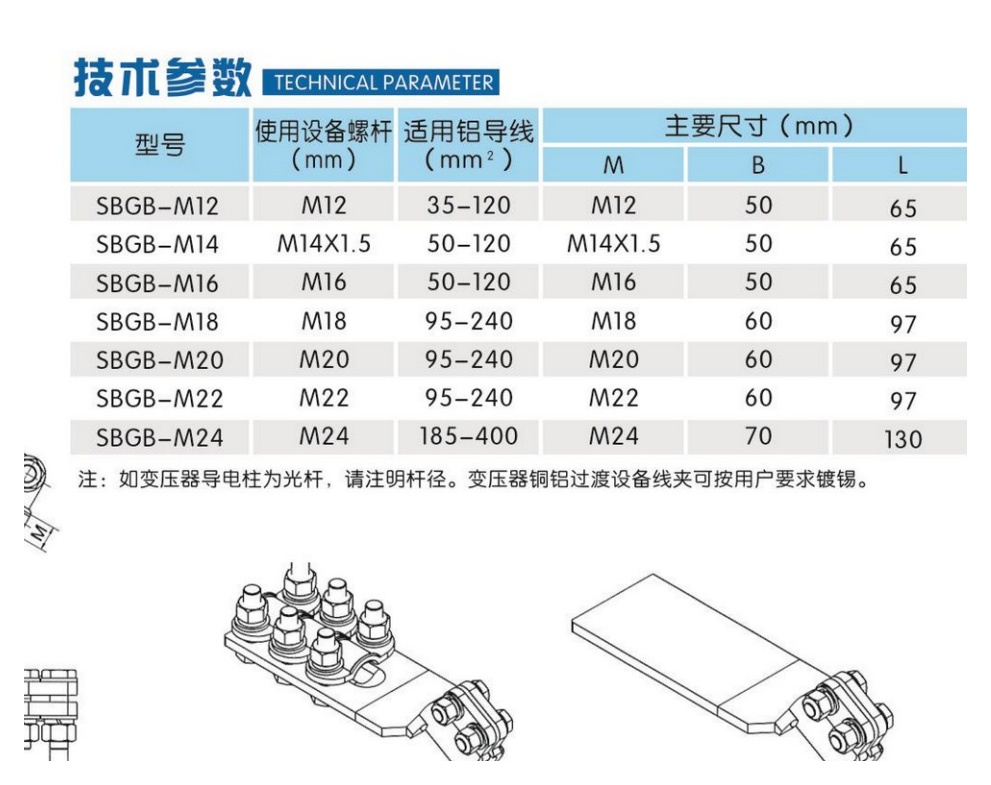

| SBGB stud range | M12, M14×1.5, M16, M18, M20, M22 and M24 |
| SBGB conductor range | 35-400 mm² depending on model |
| SBGB body dimensions | Width 50-70 mm; length 65-130 mm |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Copper-aluminium transition construction
M10-M24 terminal-stud options
35-400 mm² conductor coverage
Pressure-plate and flat-plate configurations available
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL SBG and SBGB transformer transition clamps connect transformer terminal studs to aluminium conductors through copper-aluminium transition contact sections. Models cover M10-M24 studs and conductor sections from 35 to 400 mm². The listed range is SBG1-35/120-M10 to SBG1-185/300-M22; SBGB-M12 to SBGB-M24.
The published KOVYEL range is SBG1-35/120-M10 to SBG1-185/300-M22; SBGB-M12 to SBGB-M24. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
