SBTB Transformer Copper Equipment Clamps
Transformer Equipment Clamps · Drawing-confirmed project supply

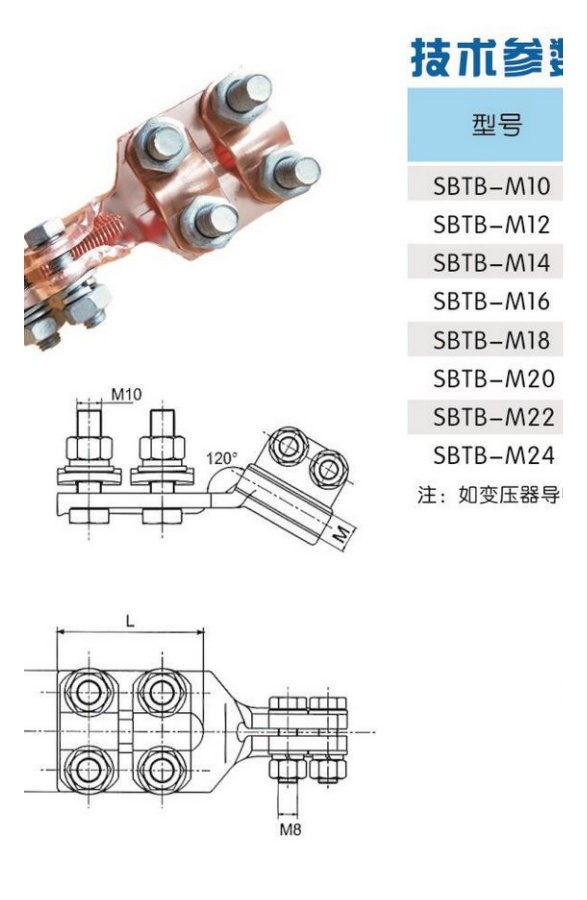

KOVYEL SBTB transformer copper equipment clamps connect M10-M24 transformer terminal studs to copper conductors from 35 to 400 mm². The compact angled body is available with pressure-plate or flat-plate conductor clamping.
Selection begins with the actual project interface.
KOVYEL SBTB transformer copper equipment clamps connect M10-M24 transformer terminal studs to copper conductors from 35 to 400 mm². The compact angled body is available with pressure-plate or flat-plate conductor clamping.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | SBTB Transformer Copper Equipment Clamps |
|---|---|
| Category | Transformer Equipment Clamps |
| Representative range / models | SBTB-M10 to SBTB-M24 |
| Standards / reference basis | SBTB transformer copper clamp table and terminal requirements confirmed by KOVYEL |
| Typical applications | Copper transformer leads; Transformer terminal-stud connections; Substation equipment interfaces; Distribution transformer outgoing circuits |

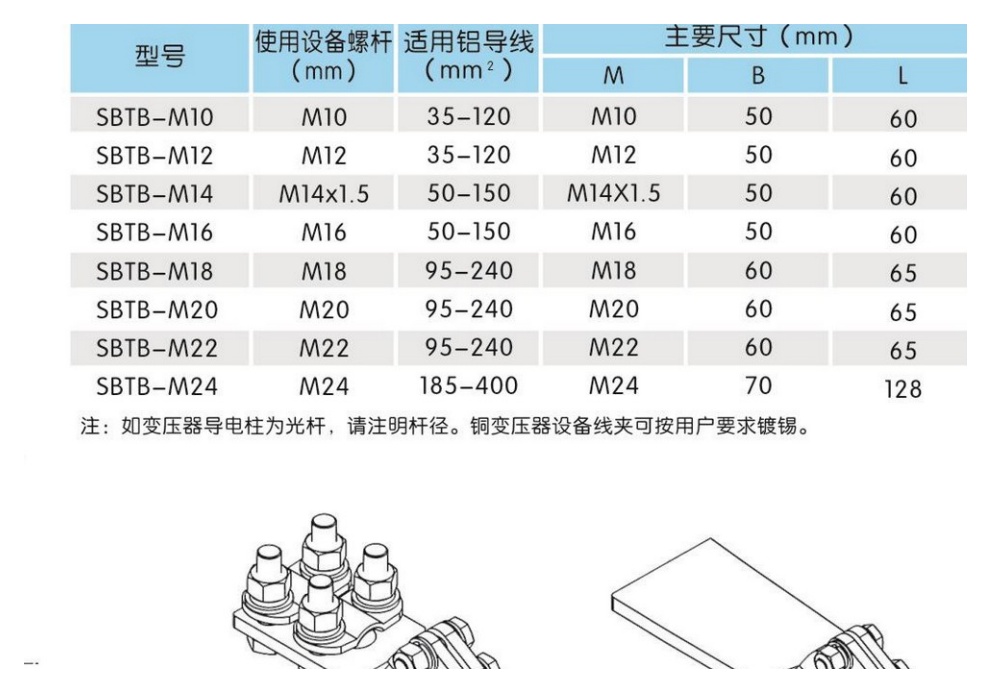

| SBTB-M10 / M12 | M10 or M12 stud; 35-120 mm² conductor; width 50 mm; length 60 mm |
| SBTB-M14 / M16 | M14×1.5 or M16 stud; 50-150 mm² conductor; width 50 mm; length 60 mm |
| SBTB-M18 / M20 / M22 | 95-240 mm² conductor; width 60 mm; length 65 mm |
| SBTB-M24 | M24 stud; 185-400 mm² conductor; width 70 mm; length 128 mm |
| Conductor interface | Pressure-plate or flat-plate configuration |
| Selection | Confirm stud thread, conductor section and terminal orientation |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Copper transformer leads
Copper equipment-clamp construction
Transformer terminal-stud connections
M10-M24 stud compatibility
Substation equipment interfaces
35-400 mm² conductor coverage
Distribution transformer outgoing circuits
Pressure-plate and flat-plate forms
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
