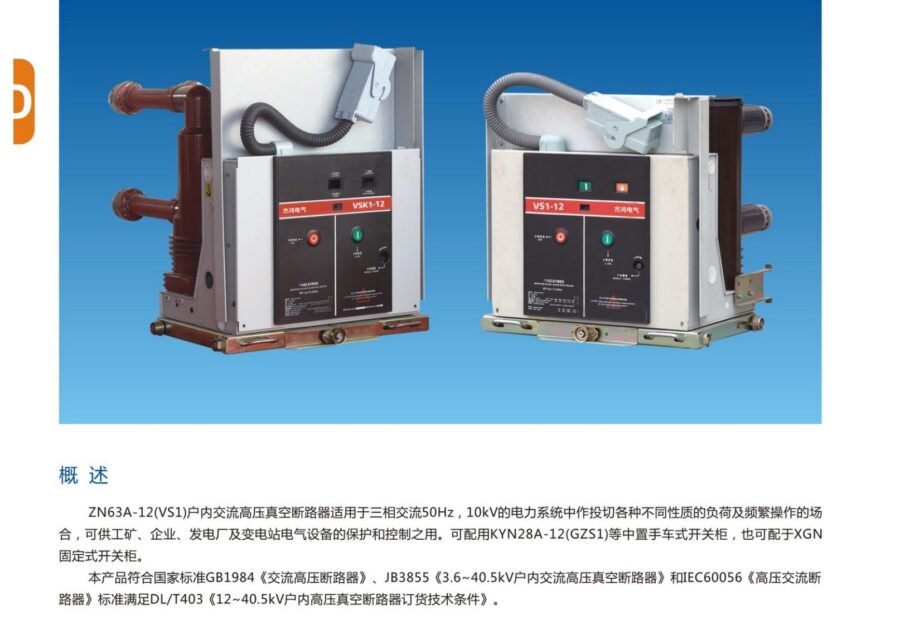

ZN63A-12 (VS1) Indoor Vacuum Circuit Breaker
KOVYEL ZN63A-12 (VS1) in…
Compare ZN63A-12 (VS1) indoor circuit breakers, ZN85-40.5 indoor circuit breakers and ZW32-12G outdoor circuit breakers. Confirm rated voltage, continuous current, interrupting and specified short-time duty, operating mechanism and installation environment. Send the protection scheme, control supply, mounting or cabinet interface drawing, required accessories and quantities. Review other outdoor families below and confirm the exact configuration against the approved specification.
Final model, material, dimensions, standard and test scope are confirmed against the approved RFQ data.
An indoor switchgear breaker and an outdoor line-mounted breaker have different installation and interface requirements. Confirm the complete operating arrangement as well as the electrical schedule.
| Selection point | What the purchase specification should identify |
|---|---|
| Indoor installation | Switchgear or panel interface, fixed/withdrawable arrangement where applicable, dimensions, interlocks and control connections. |
| Outdoor installation | Outdoor vacuum circuit breakers — confirm mounting structure, environmental conditions, terminals, operating mechanism and control/protection scope. |
| Electrical schedule | Purchaser-specified equipment voltage, current and interruption/withstand duties, operating sequence and applicable standard/test requirements. |
| Auxiliary and supply scope | Control supply, trip/close circuits, auxiliary contacts, protection/controller requirements and the included accessories. |
Send the single-line diagram and equipment schedule with the exact offered model or required configuration. Do not assume that all breaker catalogue entries include the same controller, protection functions or mounting parts.
KOVYEL ZN63A-12 (VS1) in…

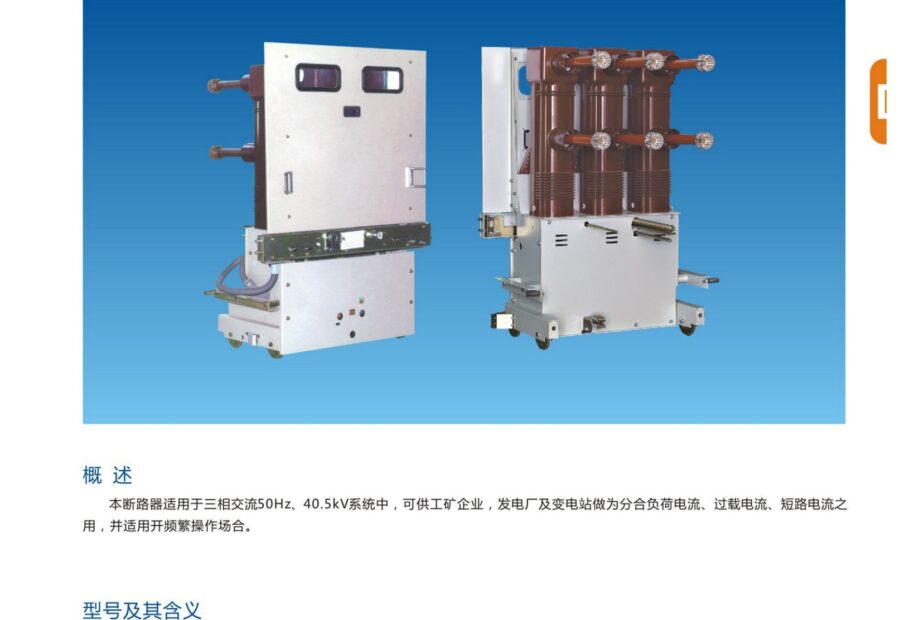

KOVYEL ZN85-40.5 indoor …

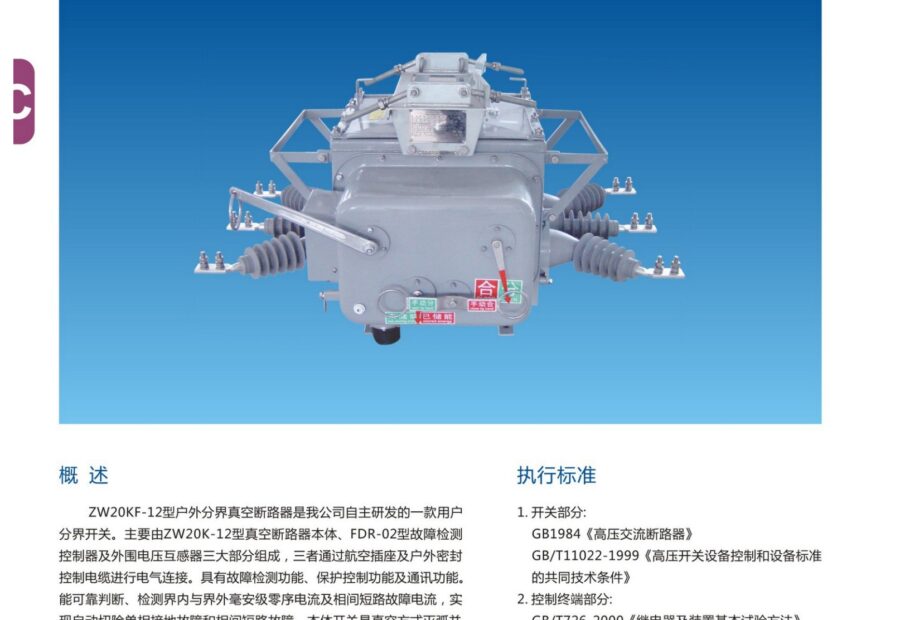

KOVYEL ZW20KF-12 boundar…

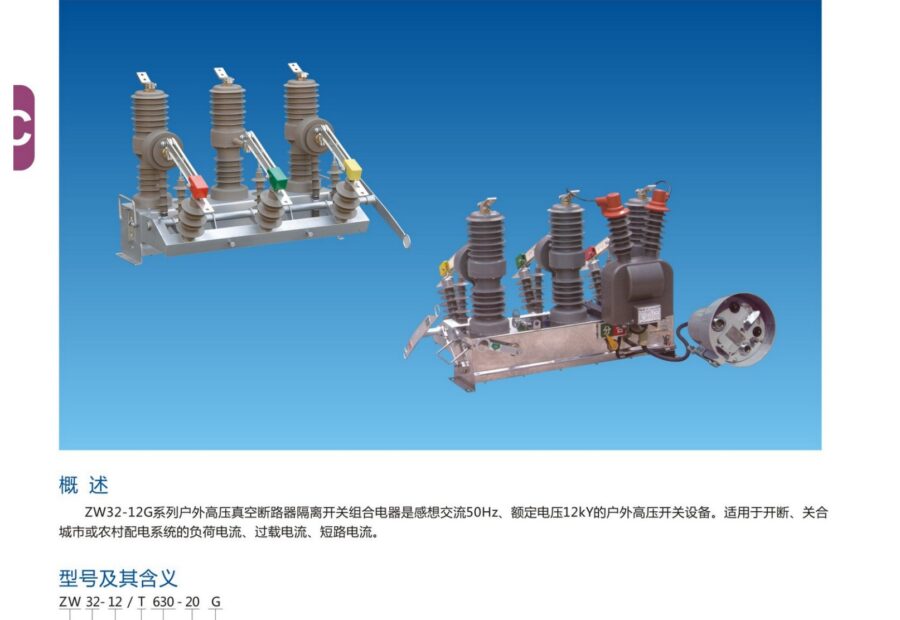

KOVYEL ZW32-12G outdoor …

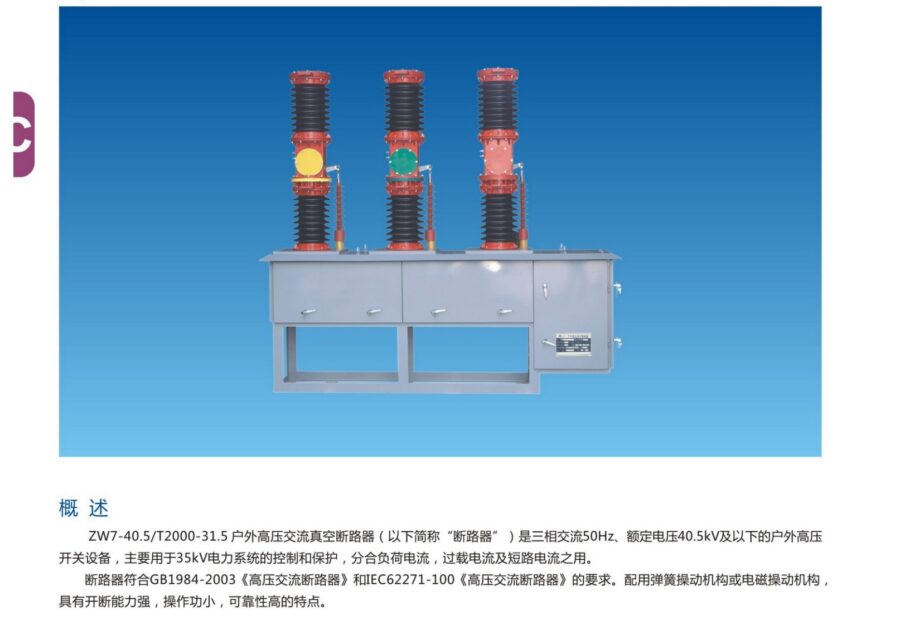

KOVYEL ZW7-40.5 outdoor …
PRODUCT RANGE AND PROCUREMENT
