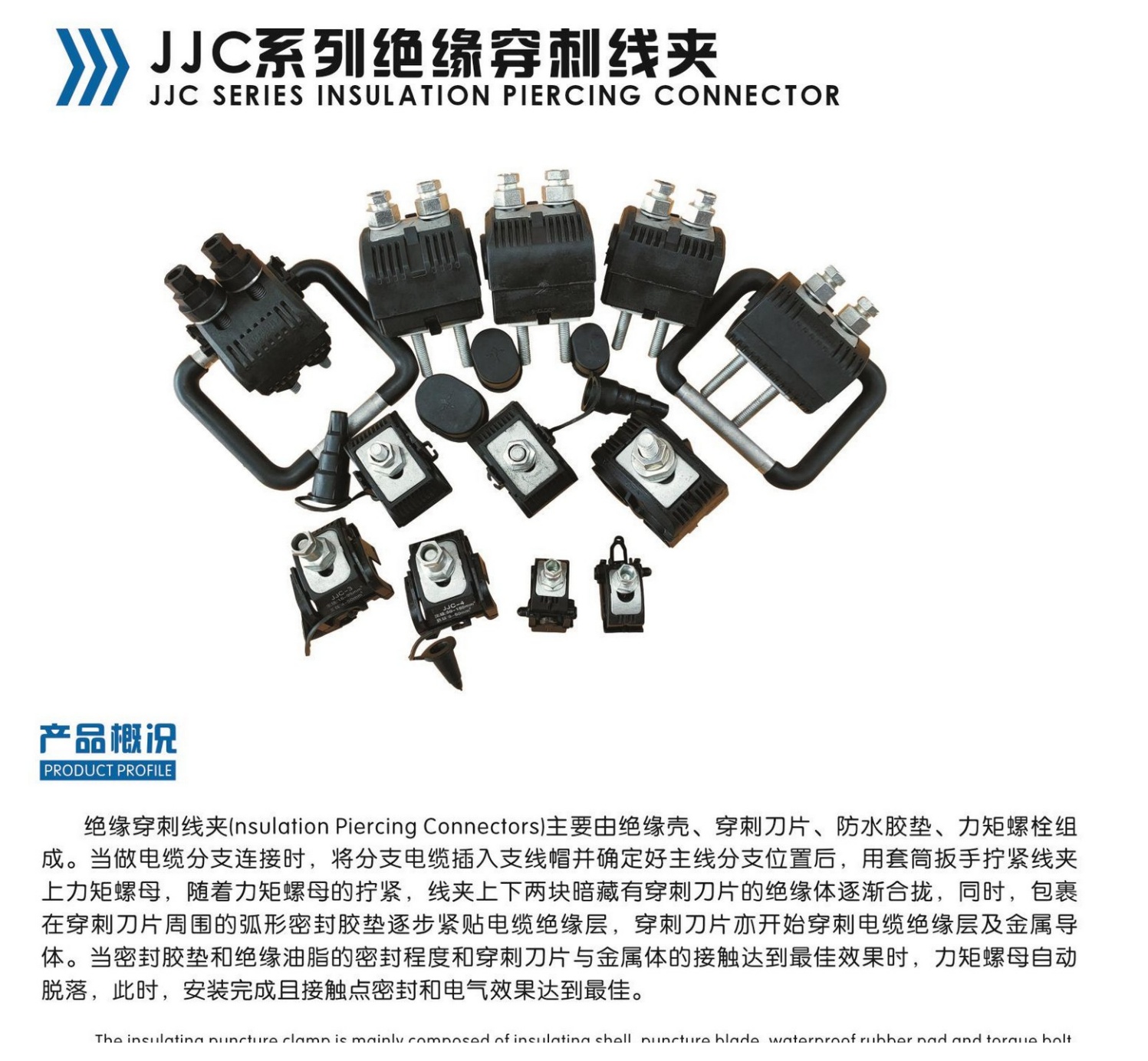

KOVYEL JJC insulation piercing connectors create sealed branch connections on insulated overhead conductors without stripping the main conductor. The family covers 1 kV and 10 kV applications with main conductor sections from 1.5 to 300 mm².
KOVYEL JJC insulation piercing connectors create sealed branch connections on insulated overhead conductors without stripping the main conductor. The family covers 1 kV and 10 kV applications with main conductor sections from 1.5 to 300 mm².
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JJC Series Insulation Piercing Connectors |
|---|---|
| Category | ABC Accessories & Insulation Piercing Connectors |
| Representative range / models | JJC-1 to JJC-7; JBC10-5, JBC10-6 and JBC-10 |
| Standards / reference basis | JJC and JBC model ratings, conductor ranges and tightening requirements confirmed by KOVYEL |
| Typical applications | Aerial bundled cable branch connections; Street-lighting branches; Building and distribution conductor taps; Temporary and permanent insulated conductor connections |

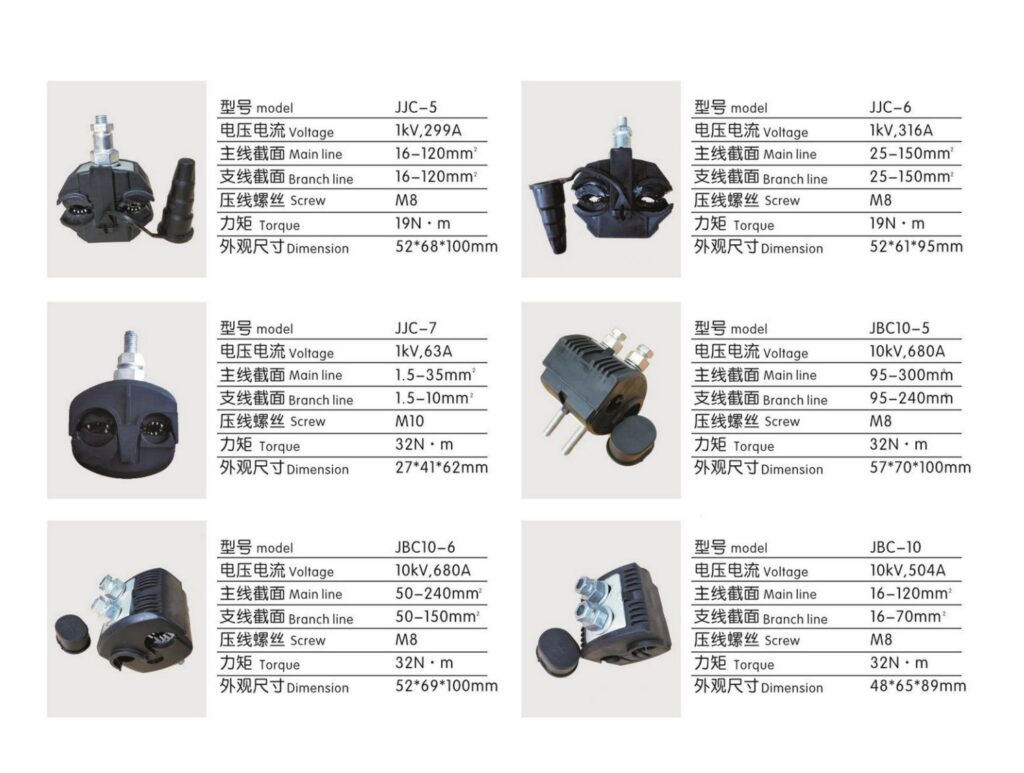

| JJC-1 / JJC-7 | 1 kV, 63 A; main line 1.5-35 mm²; branch 1.5-10 mm² |
| JJC-2 | 1 kV, 75 A; main line 16-95 mm²; branch 1.5-10 mm² |
| JJC-3 / JJC-4 | 1 kV; main line 16-95 or 50-150 mm²; branch 4-35 or 6-35 mm² |
| JJC-5 / JJC-6 | 1 kV; main line 16-120 or 25-150 mm²; branch up to 120 or 150 mm² |
| JBC10 models | 10 kV; main line 16-300 mm²; branch range depends on model |
| Torque range | 9-32 N·m depending on model |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Piercing connection without main-line stripping
Waterproof insulated housing
Torque-controlled shear-head fasteners
Curved body for a broad conductor range
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL JJC insulation piercing connectors create sealed branch connections on insulated overhead conductors without stripping the main conductor. The family covers 1 kV and 10 kV applications with main conductor sections from 1.5 to 300 mm². The listed range is JJC-1 to JJC-7; JBC10-5, JBC10-6 and JBC-10.
The published KOVYEL range is JJC-1 to JJC-7; JBC10-5, JBC10-6 and JBC-10. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
