Four-Bundle Spacer Dampers

Spacer Dampers & Vibration Control · Drawing-confirmed project supply

KOVYEL square, cross and articulated four-bundle spacer dampers maintain bundle geometry and control conductor motion. Families cover conductor diameters from 23.0 to 30.0 mm and spacing lengths of 350 or 450 mm.

Drawing-Matched Project RFQ Supply Model, dimensional and mechanical data confirmed by KOVYEL for the selected project configuration
Product categorySpacer Dampers & Vibration Control
Representative rangeJZF4, JZX4, FJZ square and JZJ4 series
Technical basisModel, dimensional and mechanical data confirmed by KOVYEL for the selected project configuration
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

Four-Bundle Spacer Dampers: product overview

KOVYEL square, cross and articulated four-bundle spacer dampers maintain bundle geometry and control conductor motion. Families cover conductor diameters from 23.0 to 30.0 mm and spacing lengths of 350 or 450 mm.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

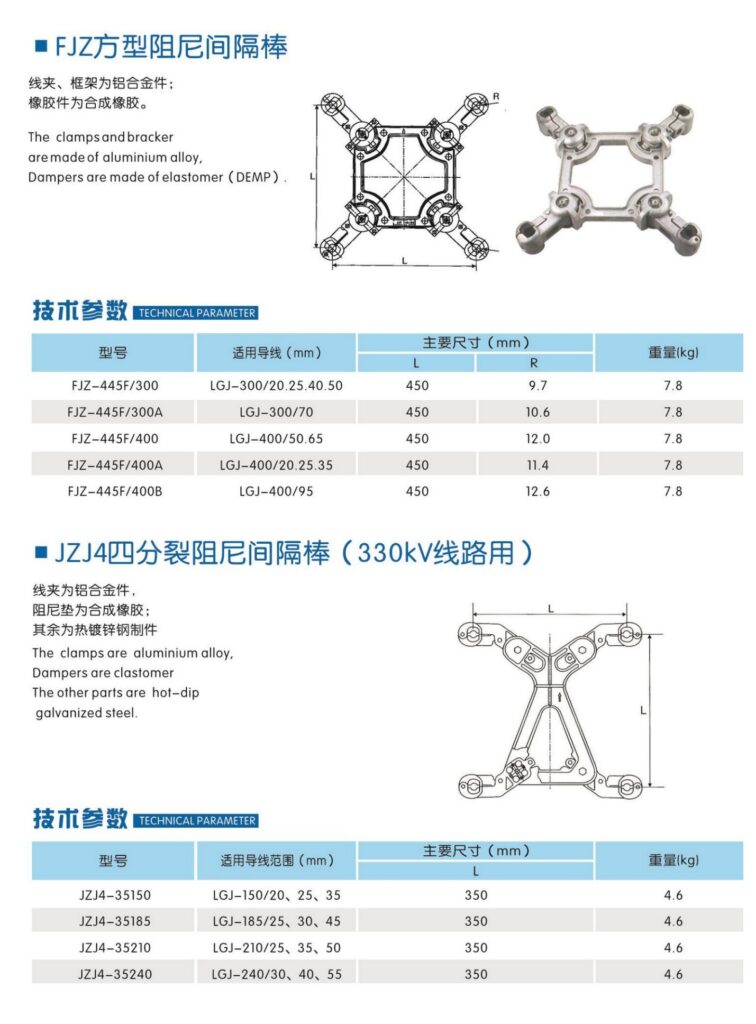

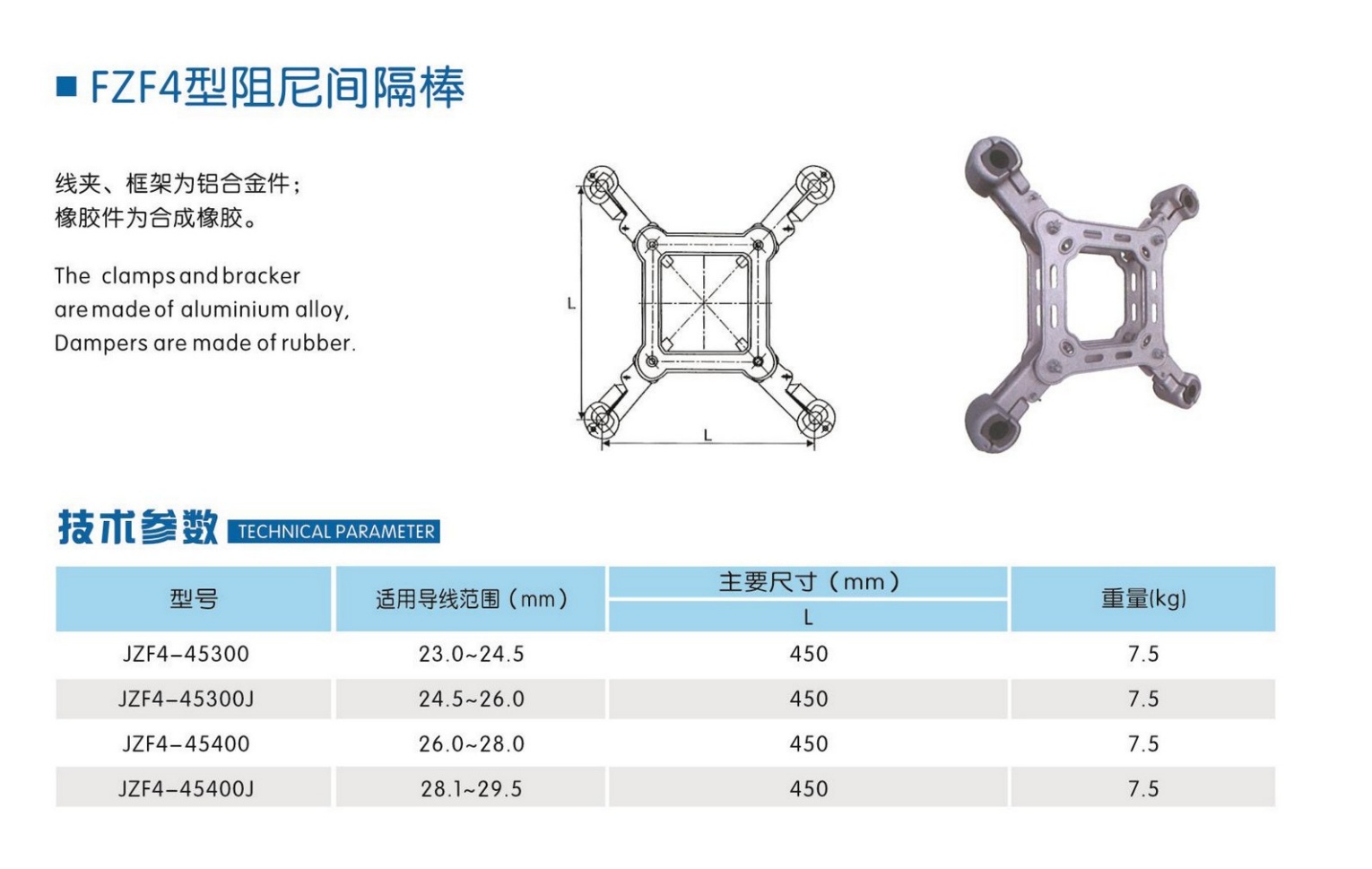

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductFour-Bundle Spacer Dampers
CategorySpacer Dampers & Vibration Control
Representative range / modelsJZF4, JZX4, FJZ square and JZJ4 series
Standards / reference basisModel, dimensional and mechanical data confirmed by KOVYEL for the selected project configuration
Typical applicationsOverhead transmission and distribution lines; Substation and line hardware assemblies; New construction and maintenance projects
JZF4 conductor diameter23.0-29.5 mm; 450 mm spacing; 7.5 kg
JZX4 conductor diameter23.0-30.0 mm; 450 mm spacing; 7.5-8.2 kg
FJZ square modelsFor LGJ-300 and LGJ-400 conductor variants; 450 mm spacing
JZJ4 modelsFor LGJ-150 to LGJ-240 bundle conductors; 350 mm spacing; 4.6 kg
Clamp and frameAluminium alloy
Damping elementsRubber or elastomer components depending on family
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
