NLD Series Bolt-Type Tension Clamps
Tension & Dead-End Clamps · Drawing-confirmed project supply
KOVYEL NLD bolt-type tension clamps anchor bare conductors using a galvanized U-bolt clamping arrangement. Four models cover conductor diameters from 5.0 to 23.0 mm and rated failure loads up to 90 kN.
Selection begins with the actual project interface.
KOVYEL NLD bolt-type tension clamps anchor bare conductors using a galvanized U-bolt clamping arrangement. Four models cover conductor diameters from 5.0 to 23.0 mm and rated failure loads up to 90 kN.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

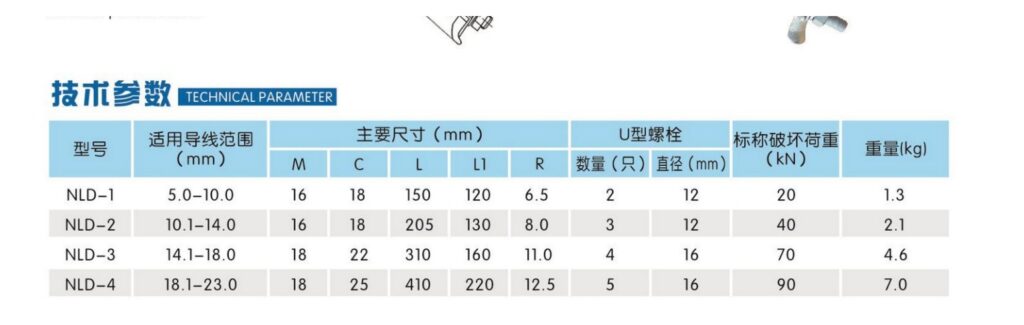

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | NLD Series Bolt-Type Tension Clamps |
|---|---|
| Category | Tension & Dead-End Clamps |
| Representative range / models | NLD-1, NLD-2, NLD-3 and NLD-4 |
| Standards / reference basis | Model, dimensional and mechanical data confirmed by KOVYEL for the selected project configuration |
| Typical applications | Overhead transmission and distribution lines; Substation and line hardware assemblies; New construction and maintenance projects |
| NLD-1 | 5.0-10.0 mm conductor; 20 kN rated failure load; 1.3 kg |
| NLD-2 | 10.1-14.0 mm conductor; 40 kN rated failure load; 2.1 kg |
| NLD-3 | 14.1-18.0 mm conductor; 70 kN rated failure load; 4.6 kg |
| NLD-4 | 18.1-23.0 mm conductor; 90 kN rated failure load; 7.0 kg |
| U-bolts | 2-5 U-bolts depending on model |
| Material | Malleable-iron body and keeper; stainless cotter pins; galvanized steel hardware |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Overhead transmission and distribution lines
Hot-dip galvanized ferrous components
Substation and line hardware assemblies
Multiple models for project-specific selection
New construction and maintenance projects
Dimensions and rated mechanical loads selected by model
