FLEXIBLE BUNDLE SPACER DAMPER · CATALOGUE-BACKED RANGE

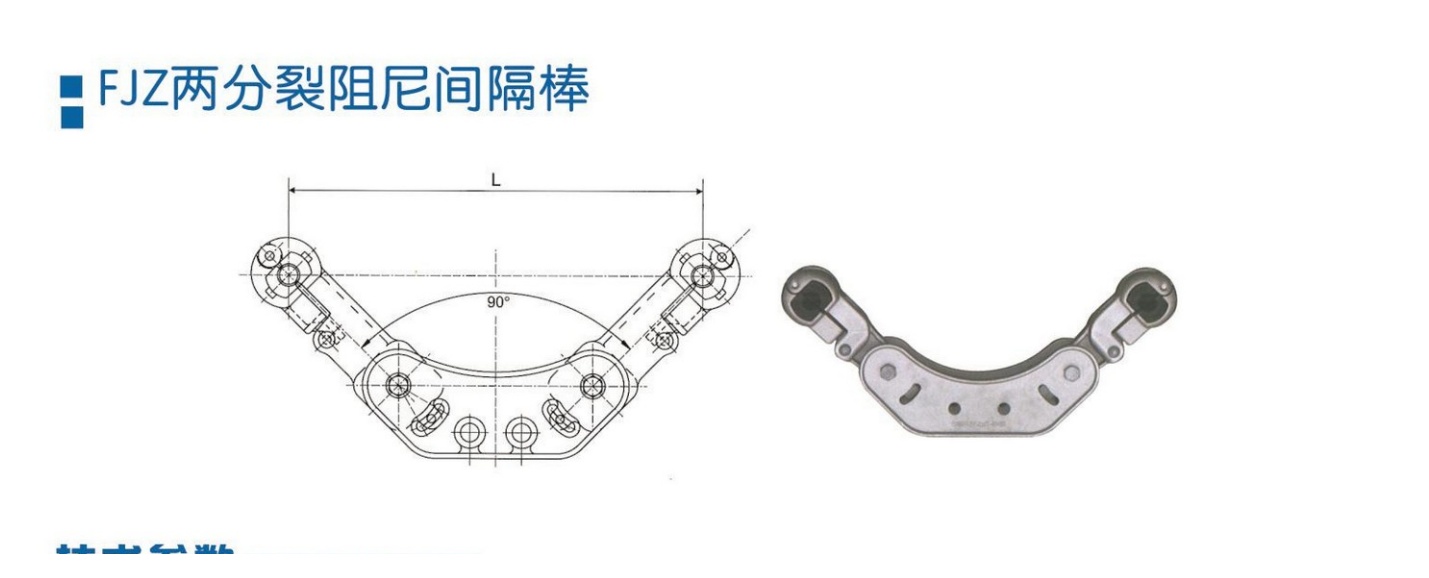

FJZ Flexible Spacer Dampers
FJZ flexible spacer dampers combine bundle-spacing control with articulated elastomer damping for twin, triple, quad and higher bundled-conductor systems.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
Twin-bundle flexible spacersTriple-bundle arrangementsQuad-bundle spacer dampersHigher bundle-count project designs
APPLICATIONS
Built for real line interfaces.
- EHV bundled conductors
- Long transmission spans
- Wind- and ice-exposed routes
- Bundle subspan oscillation control
KEY FEATURES
What the product family covers.
- Articulated damping joints
- Maintains designed sub-conductor spacing
- Replaceable conductor clamps
- Geometry matched to bundle count and spacing
SELECTION DATA
Send these details for a matched quotation.
- 01Conductor model and diameter
- 02Bundle count
- 03Bundle centre spacing
- 04Subspan design
- 05Environmental loading
- 06Spacer placement schedule
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
IEC 61854 where specifiedApproved bundle studyCatalogue model data
