KOVYEL · LINK FITTINGS & YOKE PLATES Q, QP, JBB, JK, QH, W, WS, UL, U, PH, ZH, ZS & ZBS Line Link Fittings
PROJECT-MATCHED OVERHEAD LINE EQUIPMENT

Q, QP, JBB, JK, QH, W, WS, UL, U, PH, ZH, ZS & ZBS Line Link Fittings

Link Fittings & Yoke Plates · Drawing-confirmed project supply

KOVYEL line link fittings connect insulator strings, clamps and tower hardware. The consolidated family includes ball eyes, socket clevises, shackles, extension links and parallel-clevis fittings with rated mechanical loads selected by model.

Drawing-Matched Project RFQ Supply Model, dimensional and mechanical data confirmed by KOVYEL for the selected project configuration
Product categoryLink Fittings & Yoke Plates
Representative rangeQ/QP, JBB, JK, QH, W, WS, UL, U, PH, ZH, ZS and ZBS series
Technical basisModel, dimensional and mechanical data confirmed by KOVYEL for the selected project configuration
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

Q/QP/JBB/JK/QH/W/WS/UL Link Fittings: product overview

KOVYEL line link fittings connect insulator strings, clamps and tower hardware. The consolidated family includes ball eyes, socket clevises, shackles, extension links and parallel-clevis fittings with rated mechanical loads selected by model.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductQ, QP, JBB, JK, QH, W, WS, UL, U, PH, ZH, ZS & ZBS Line Link Fittings
CategoryLink Fittings & Yoke Plates
Representative range / modelsQ/QP, JBB, JK, QH, W, WS, UL, U, PH, ZH, ZS and ZBS series
Standards / reference basisModel, dimensional and mechanical data confirmed by KOVYEL for the selected project configuration
Typical applicationsOverhead transmission and distribution lines; Substation and line hardware assemblies; New construction and maintenance projects

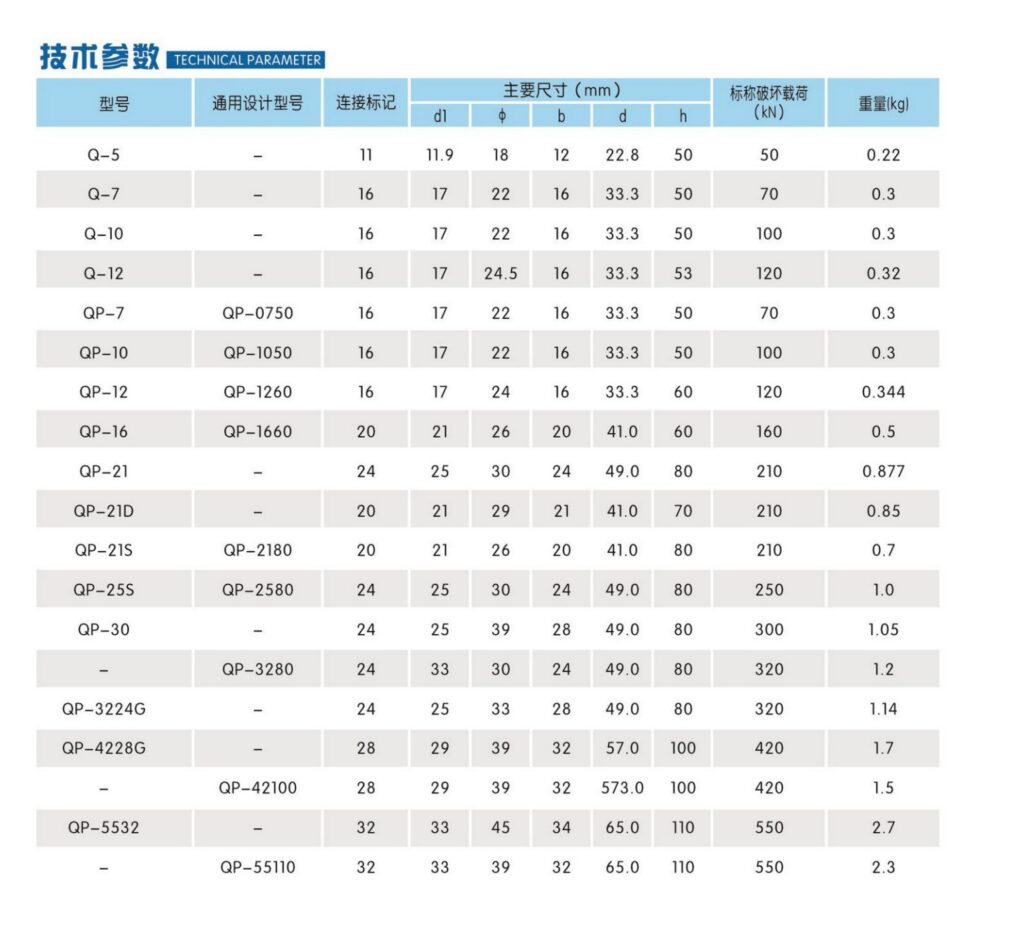

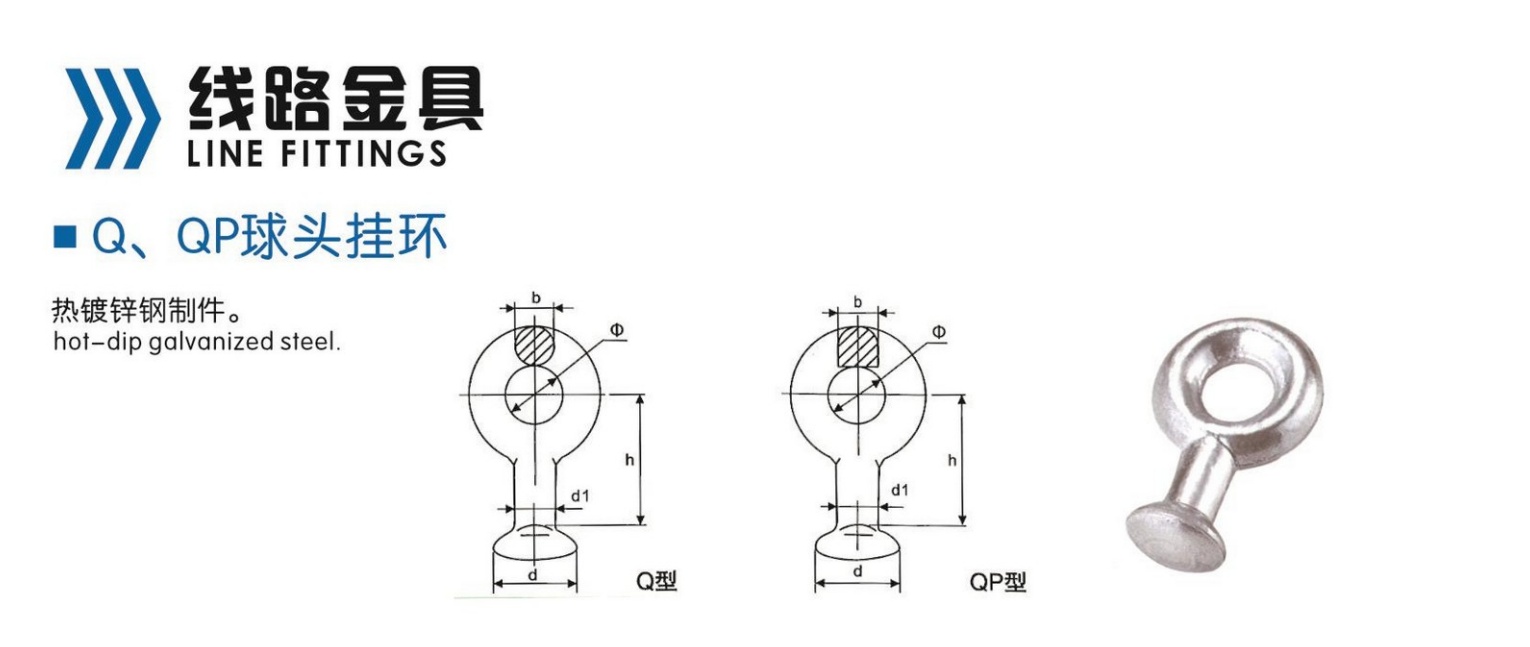

Q / QP ball eyesRated mechanical load 50-550 kN; connection diameter 12-32 mm
JBB well clampsFor 6.6-14.0 mm steel strand; JBB-1 to JBB-3
JK steel wire clipsFor 6.6-14.0 mm steel strand; JK-1 to JK-3
Link hardware rangeQH, W, WS, UL, U, PH, ZH, ZS and ZBS configurations
MaterialMalleable iron or steel; ferrous parts hot-dip galvanized
SelectionConfirm string layout, connection size and rated mechanical load
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
