KOVYEL LT and EB link clevis plates connect line-hardware components where controlled length and high mechanical capacity are required. The range covers rated loads from 120 to 700 kN.
KOVYEL LT and EB link clevis plates connect line-hardware components where controlled length and high mechanical capacity are required. The range covers rated loads from 120 to 700 kN.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.

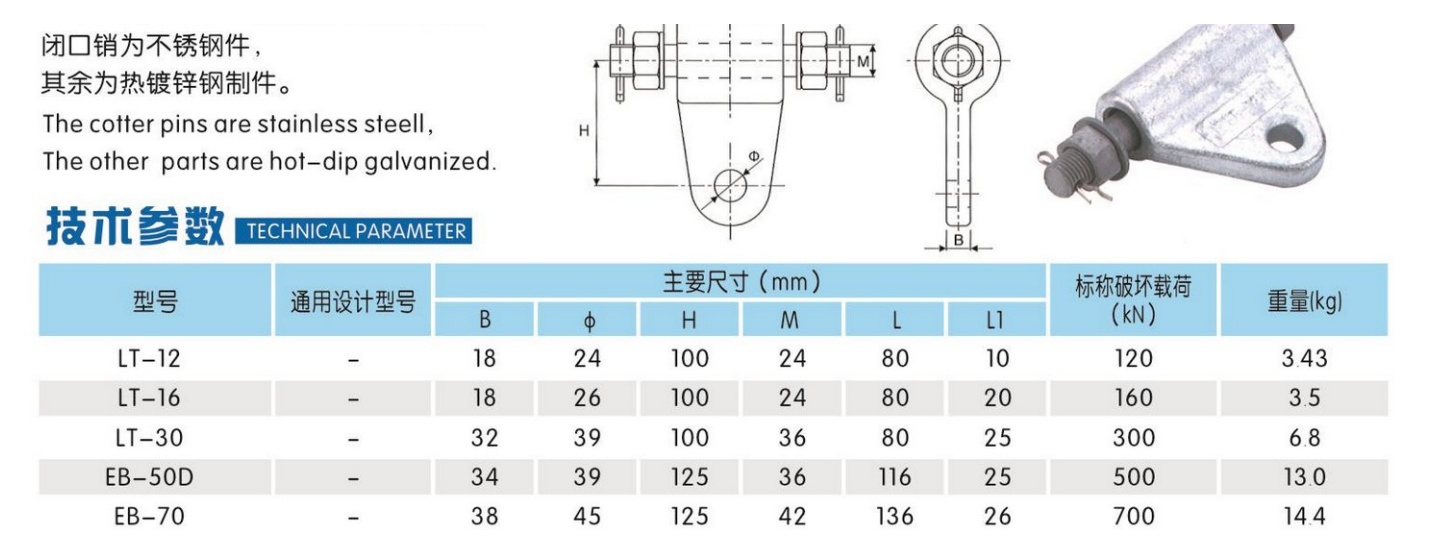

| Product | LT & EB Link Clevis Plates |
|---|---|
| Category | Link Fittings & Yoke Plates |
| Representative range / models | LT-12, LT-16 and LT-30; EB-50D, EB-70 and EB-07/10 through EB-64/84 |
| Standards / reference basis | Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly |
| Typical applications | Insulator-string and tower-hardware assemblies; Overhead transmission and distribution lines; New construction and maintenance projects |
| LT models | LT-12, LT-16 and LT-30 |
| LT rated load | 120, 160 or 300 kN |
| EB heavy-duty models | EB-50D and EB-70 variants; rated load 500 or 700 kN |

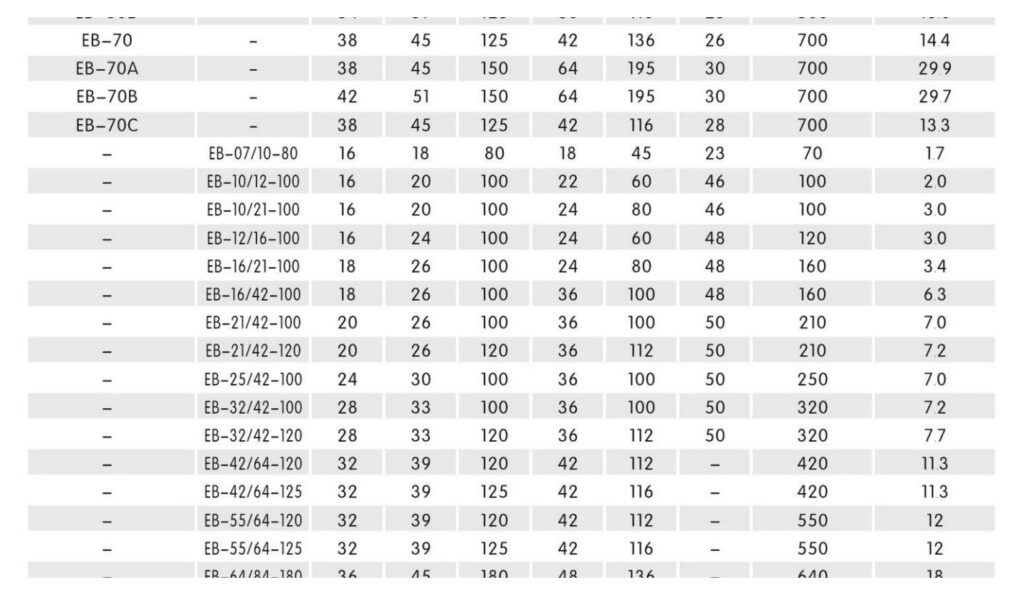

| EB standard range | EB-07/10 through EB-64/84; rated load 70-640 kN |
| Connection length | 60-195 mm depending on model |
| Material | Hot-dip galvanized steel with stainless-steel cotter pins |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
120-700 kN LT and EB configurations
Multiple clevis widths and connection lengths
Hot-dip galvanized construction
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL LT and EB link clevis plates connect line-hardware components where controlled length and high mechanical capacity are required. The range covers rated loads from 120 to 700 kN. The listed range is LT-12, LT-16 and LT-30; EB-50D, EB-70 and EB-07/10 through EB-64/84.
The published KOVYEL range is LT-12, LT-16 and LT-30; EB-50D, EB-70 and EB-07/10 through EB-64/84. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
