Link Fittings & Yoke Plates · Drawing-confirmed project supply
KOVYEL UB and UBX suspension clevis plates connect insulator strings and line hardware through a galvanized clevis assembly. Models cover rated mechanical loads from 70 to 600 kN.
KOVYEL UB and UBX suspension clevis plates connect insulator strings and line hardware through a galvanized clevis assembly. Models cover rated mechanical loads from 70 to 600 kN.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | UB & UBX Suspension Clevis Plates |
|---|---|
| Category | Link Fittings & Yoke Plates |
| Representative range / models | UB-6/1, UB-7 to UB-60T; UBX-0765 to UBX-1675 |
| Standards / reference basis | Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly |
| Typical applications | Insulator-string and tower-hardware assemblies; Overhead transmission and distribution lines; New construction and maintenance projects |

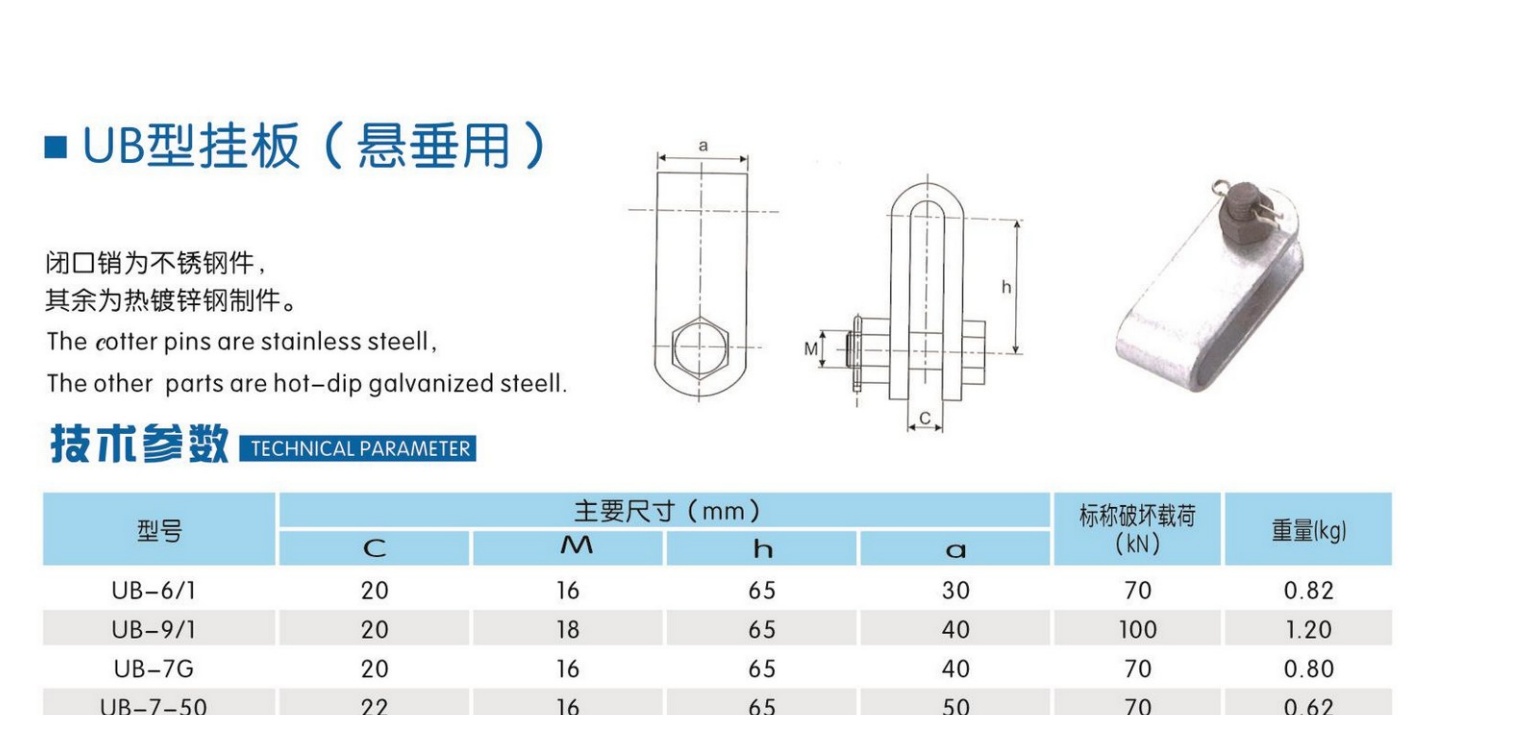

| UB-6/1 and UB-9/1 | 70 or 100 kN rated load; 65 mm height |
| UB main range | UB-7 to UB-60T; rated load 70-600 kN |
| UB connection size | 20-50 mm clevis width depending on model |

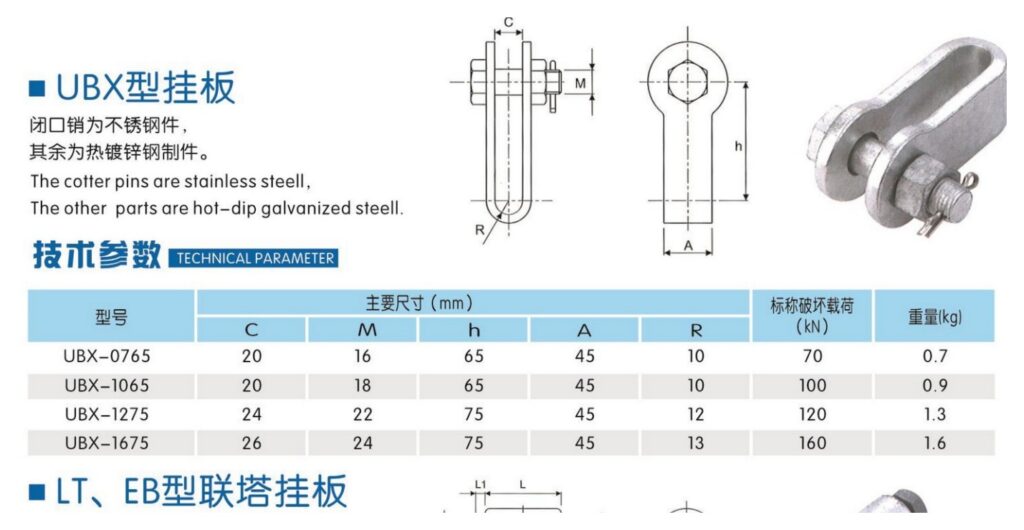

| UBX range | UBX-0765, UBX-1065, UBX-1275 and UBX-1675 |
| UBX rated load | 70, 100, 120 or 160 kN |
| Material | Hot-dip galvanized steel with stainless-steel cotter pins |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
70-600 kN load range
Standard UB and extended UBX forms
Galvanized steel with stainless cotter pins
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL UB and UBX suspension clevis plates connect insulator strings and line hardware through a galvanized clevis assembly. Models cover rated mechanical loads from 70 to 600 kN. The listed range is UB-6/1, UB-7 to UB-60T; UBX-0765 to UBX-1675.
The published KOVYEL range is UB-6/1, UB-7 to UB-60T; UBX-0765 to UBX-1675. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
