BRANCH CONNECTOR · CATALOGUE-BACKED RANGE

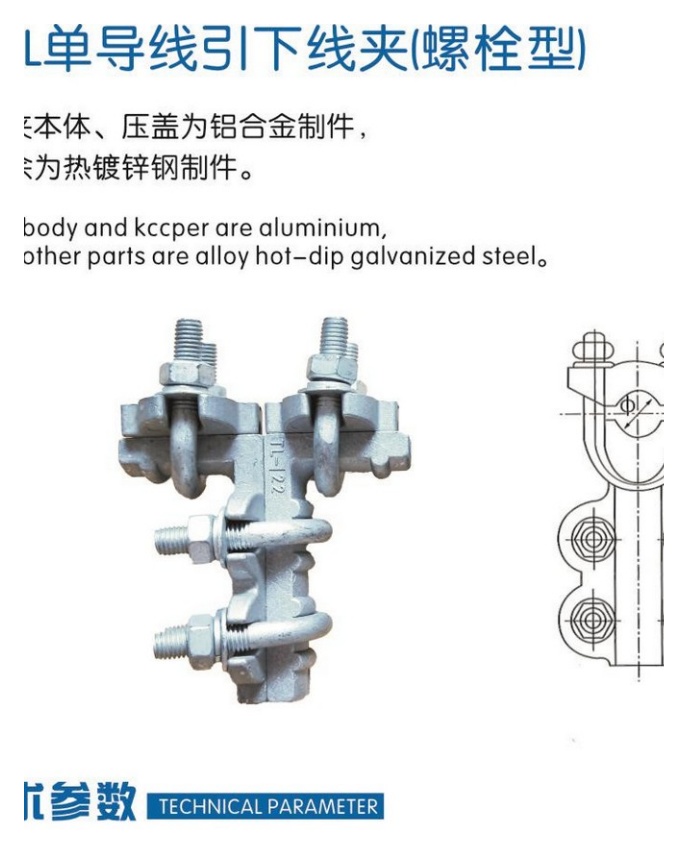

T-Type Conductor Connectors
T-shaped connectors for branch connections on insulated overhead conductor systems.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
T-type connectorInsulated branch connectorProject-matched conductor range
APPLICATIONS
Built for real line interfaces.
- Insulated feeder branches
- Distribution line taps
- Service connections
- Cable-to-line branch interfaces
KEY FEATURES
What the product family covers.
- Compact insulated connector body
- Branch connection without a long bare-conductor section
- Selected by main and branch cable range
- Installation method matched to the approved line practice

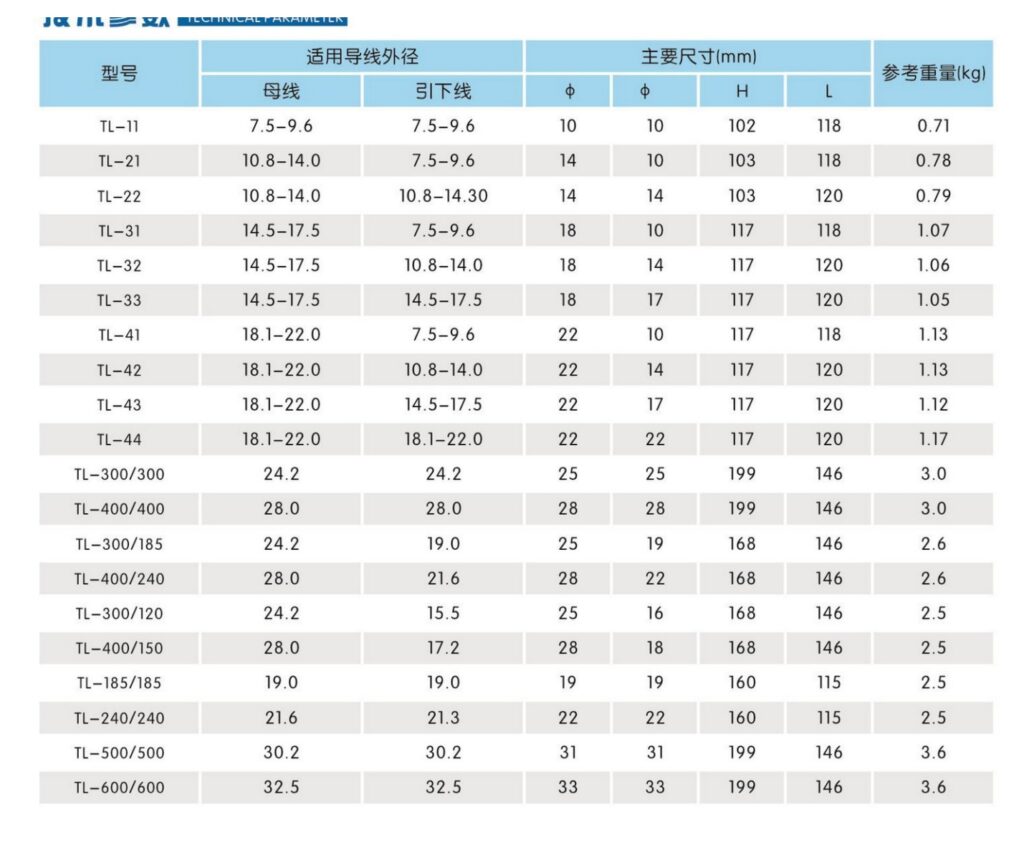

SELECTION DATA
Send these details for a matched quotation.
- 01Main conductor range
- 02Branch conductor range
- 03Conductor material
- 04Insulation diameter
- 05Voltage class
- 06Installation drawing
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
Approved utility specificationCustomer drawingCatalogue model data
