KOVYEL · SUSPENSION CLAMPS XTS Twin-Jumper Suspension Clamps
PROJECT-MATCHED OVERHEAD LINE EQUIPMENT

XTS Twin-Jumper Suspension Clamps

Suspension Clamps · Drawing-confirmed project supply

KOVYEL XTS twin-jumper suspension clamps support two jumper conductors with rated failure loads of 40 or 60 kN. Models cover conductor diameters from 21.0 to 39.0 mm.

Drawing-Matched Project RFQ Supply Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly
Product categorySuspension Clamps
Representative rangeXTS-4028 to XTS-6040
Technical basisModel, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

XTS Twin-Jumper Suspension Clamps: product overview

KOVYEL XTS twin-jumper suspension clamps support two jumper conductors with rated failure loads of 40 or 60 kN. Models cover conductor diameters from 21.0 to 39.0 mm.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

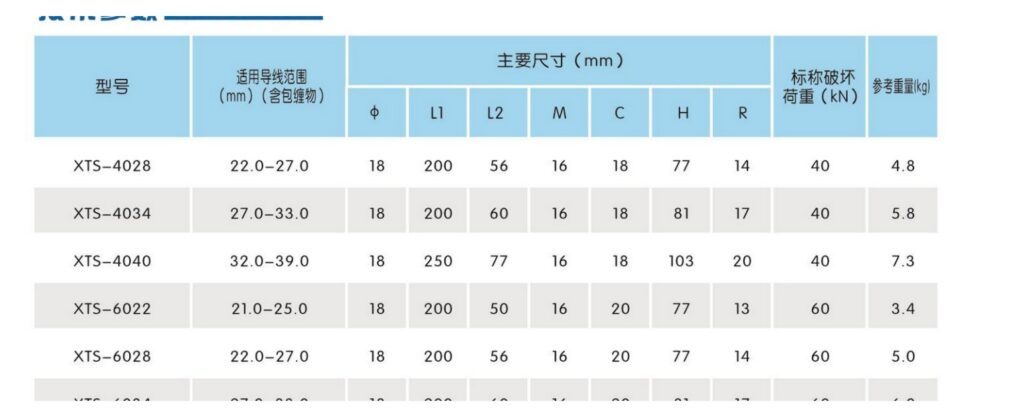

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductXTS Twin-Jumper Suspension Clamps
CategorySuspension Clamps
Representative range / modelsXTS-4028 to XTS-6040
Standards / reference basisModel, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly
Typical applicationsTwin-jumper conductor suspension; Transmission-line jumper loops; Substation flexible conductor support
Conductor diameter21.0-39.0 mm depending on model
Rated failure load40 or 60 kN
Body length L1200 or 250 mm
Secondary length L250-77 mm
Clamp height H77-103 mm
MaterialMalleable-iron body and keeper with galvanized steel hardware
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

Twin-jumper conductor suspension

Twin-conductor configuration

02

Transmission-line jumper loops

40 or 60 kN rated failure load

03

Substation flexible conductor support

21.0-39.0 mm conductor coverage

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

For purchasing teams and project engineers: confirm the exact XTS Twin-Jumper Suspension Clamps configuration, included components and required acceptance documents before comparing quotations.

XTS Twin-Jumper Suspension Clamps: conductor support and suspension approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for XTS Twin-Jumper Suspension Clamps.

ItemInformation for technical approval
01Exact offered model and purchase or BOQ item for XTS Twin-Jumper Suspension Clamps, with the required drawing or specification revision.
02Actual conductor designation, diameter and single or bundled arrangement.
03Required support duty, clamp and string interfaces and jumper geometry where applicable.
04Included protection and fastening components and installation and acceptance information.

Define the BOQ supply scope

Define the clamp and adjacent suspension hardware on the approved support drawing. List required pins, links, fasteners and other accessories explicitly so a clamp body is not compared with a complete suspension set.

Technical submittals and inspection requirements

Attach the conductor schedule and support drawing. Specify the required conductor-fit, dimensional, material and mechanical acceptance information and confirm installation instructions and document availability for the offered arrangement.

Packing, identification and delivery

Label the clamp and matching parts by model and conductor reference. Request packing-list quantities aligned with the number of suspension assemblies and any separately ordered spare components.

Quotation and order planning

Send quantities by exact model and configuration, destination, requested delivery date and required quotation terms. Identify complete assemblies, loose components and spares separately. Ask the quotation to confirm minimum order quantity where applicable, delivery proposal, packing, inspection documents and any phased-shipment requirements. Agree the actual commercial and documentation scope before order release.

Buyer questions

Which interfaces need checking in addition to conductor fit?

Confirm the clamp seat, support connection dimensions, mating fittings and specified suspension duty on the complete assembly drawing.

How should XTS Twin-Jumper Suspension Clamps be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

XTS Twin-Jumper Suspension Clamps — configuration and purchasing data

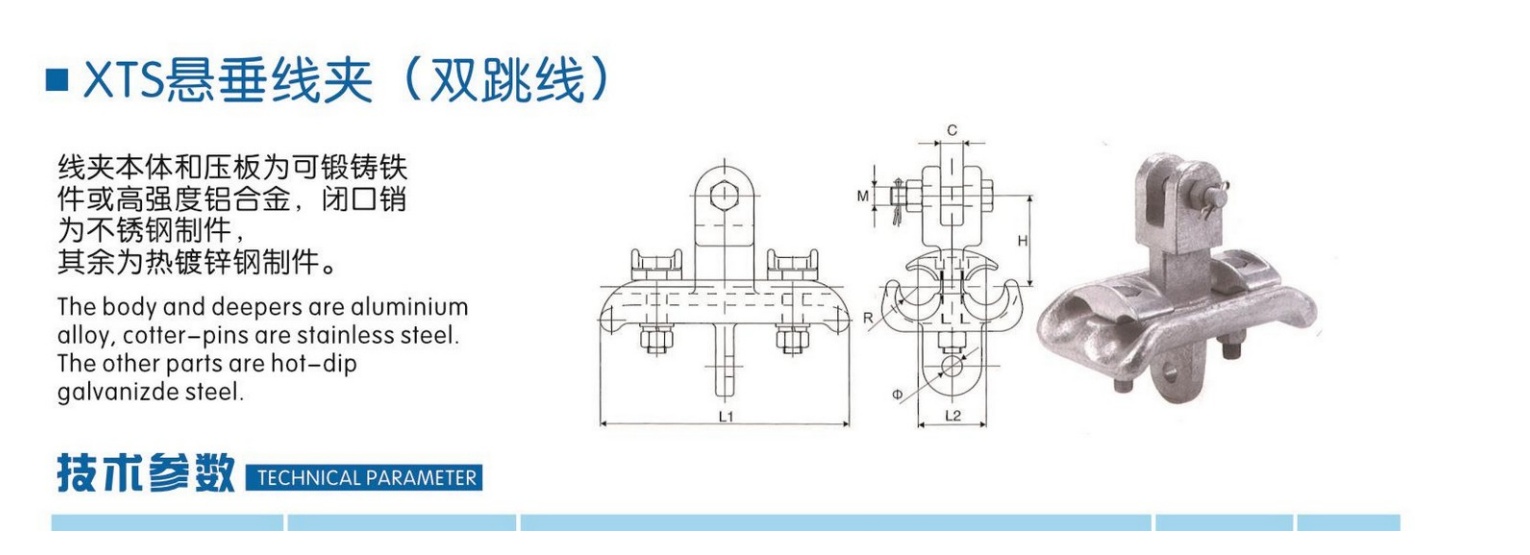

Conductor seating body with bolted clamping members and a support connection.

Product referenceXTS Twin-Jumper Suspension Clamps
Configuration shownConductor seating body with bolted clamping members and a support connection.
Selection dimensions and interfacesConductor or cable diameter and construction; clamp liner and body configuration; attachment interface; support arrangement.
Quotation documentsCable or conductor schedule, support drawing and installation environment

The photograph shows a representative configuration. Final dimensions, ratings and inspection requirements follow the approved model drawing and purchase specification.

PRODUCT SELECTION SUMMARY

XTS Twin-Jumper Suspension Clamps: key facts for technical buyers.

Concise catalogue facts for model comparison, product matching and AI-assisted technical research.

What is XTS Twin-Jumper Suspension Clamps?

KOVYEL XTS twin-jumper suspension clamps support two jumper conductors with rated failure loads of 40 or 60 kN. Models cover conductor diameters from 21.0 to 39.0 mm. The listed range is XTS-4028 to XTS-6040.

Which models or ratings are covered?

The published KOVYEL range is XTS-4028 to XTS-6040. Final configuration is confirmed against the required electrical, mechanical and dimensional data.

What information is needed to select XTS Twin-Jumper Suspension Clamps?

For a matched quotation, provide: Required XTS model, twin-jumper arrangement and quantity; Conductor designation, actual diameter and any protective wrapping or rods; Required conductor spacing, assembly height and approved jumper drawing; Specified mechanical load, mating attachment dimensions and clearances; Conductor temperature, environment and included connecting hardware; Required project standards and test documents, destination and delivery schedule.

QUOTATION CHECKLIST

Send these details for an accurate offer.

A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.

01Required XTS model, twin-jumper arrangement and quantity
02Conductor designation, actual diameter and any protective wrapping or rods
03Required conductor spacing, assembly height and approved jumper drawing
04Specified mechanical load, mating attachment dimensions and clearances
05Conductor temperature, environment and included connecting hardware
06Required project standards and test documents, destination and delivery schedule

Have a BOQ, drawing or equipment schedule?

Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.

Send Project RFQ →

PRODUCT AND INTERFACE SELECTION

Compare jumper suspension arrangements.

Match the single, twin or four-split jumper layout, conductor diameter and spacing. Confirm the support geometry, attachment dimensions and mechanical load for the jumper assembly.
