Suspension Clamps · Drawing-confirmed project supply
KOVYEL JCG suspension clamps support bundled insulated conductors on distribution supports, while the JH10 strain insulator provides insulated tensile separation for line anchoring assemblies.
KOVYEL JCG suspension clamps support bundled insulated conductors on distribution supports, while the JH10 strain insulator provides insulated tensile separation for line anchoring assemblies.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

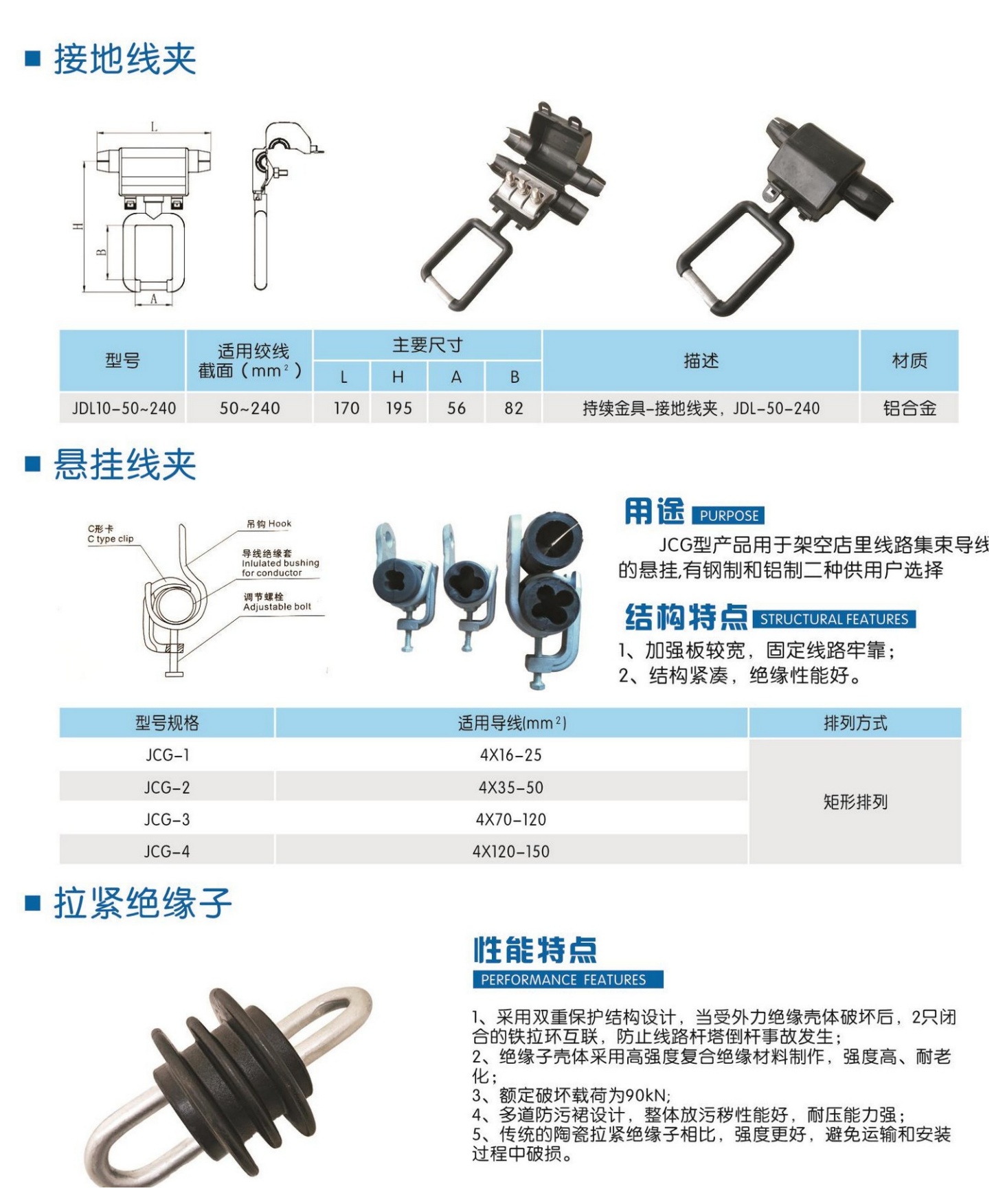

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.

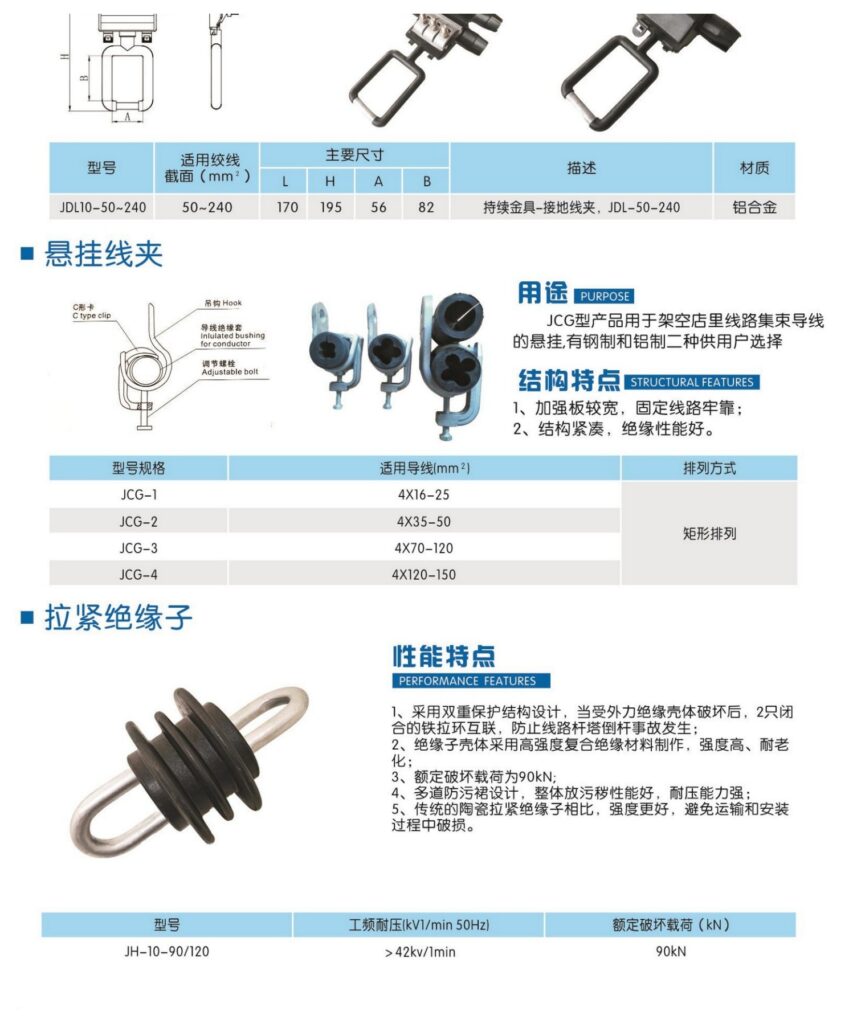

| Product | JCG Suspension Clamps & JH10 Strain Insulator |
|---|---|
| Category | Suspension Clamps |
| Representative range / models | JCG-1 to JCG-4; JH10-90/120 |
| Standards / reference basis | JCG conductor arrangement and JH10 electrical and mechanical ratings confirmed by KOVYEL |
| Typical applications | Bundled cable suspension; Pole-line conductor support; Insulated strain assemblies; Distribution line anchoring |
| JCG-1 | 4 × 16-25 mm² bundled conductors |
| JCG-2 | 4 × 35-50 mm² bundled conductors |
| JCG-3 | 4 × 70-120 mm² bundled conductors |
| JCG-4 | 4 × 120-150 mm² bundled conductors |
| JH10 power-frequency withstand | >42 kV for 1 minute at 50 Hz |
| JH10 rated tensile load | 90 kN |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
JCG single- and four-core arrangements
Reinforced support body
JH10 weather-resistant insulation
Outdoor distribution use
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL JCG suspension clamps support bundled insulated conductors on distribution supports, while the JH10 strain insulator provides insulated tensile separation for line anchoring assemblies. The listed range is JCG-1 to JCG-4; JH10-90/120.
The published KOVYEL range is JCG-1 to JCG-4; JH10-90/120. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
