KOVYEL XTF4 four-split and XT aluminium-alloy jumper suspension clamps support bundled jumper conductors. Models cover conductor diameters from 13.0 to 40.0 mm and bundle arrangements up to 700 mm.
KOVYEL XTF4 four-split and XT aluminium-alloy jumper suspension clamps support bundled jumper conductors. Models cover conductor diameters from 13.0 to 40.0 mm and bundle arrangements up to 700 mm.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

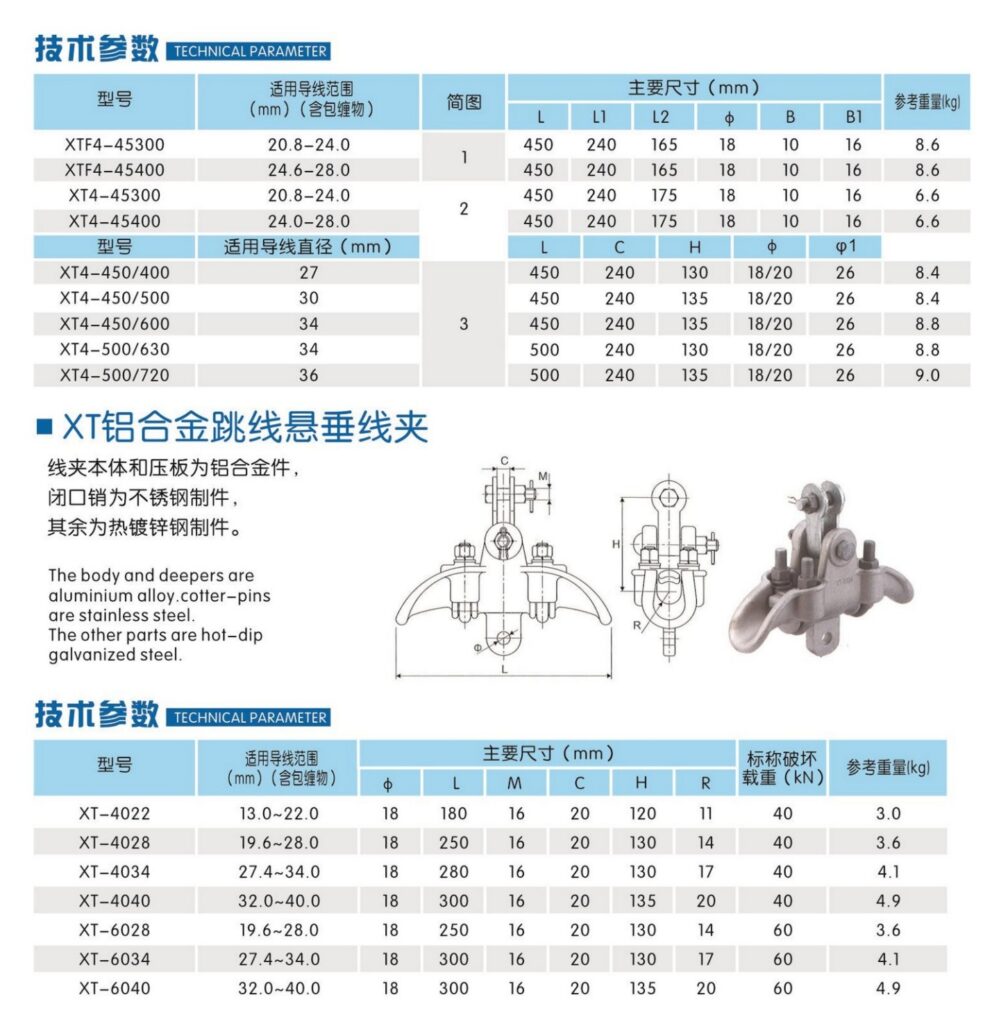

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | XTF4 & XT Jumper Suspension Clamps |
|---|---|
| Category | Suspension Clamps |
| Representative range / models | XTF4-45300 to XT4-500/720; XT-4022 to XT-6040 |
| Standards / reference basis | Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly |
| Typical applications | Four-split jumper-conductor suspension; Single jumper suspension assemblies; Transmission-line jumper loops |
| XTF4 conductor diameter | 20.8-28.0 mm |
| XTF4 frame size | 450 or 500 mm; bundle dimensions selected by model |
| XT conductor diameter | 13.0-40.0 mm |
| XT rated failure load | 40 or 60 kN |
| XT body length | 180-300 mm |
| Material | Aluminium-alloy clamp body with stainless cotter pins and galvanized steel hardware |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

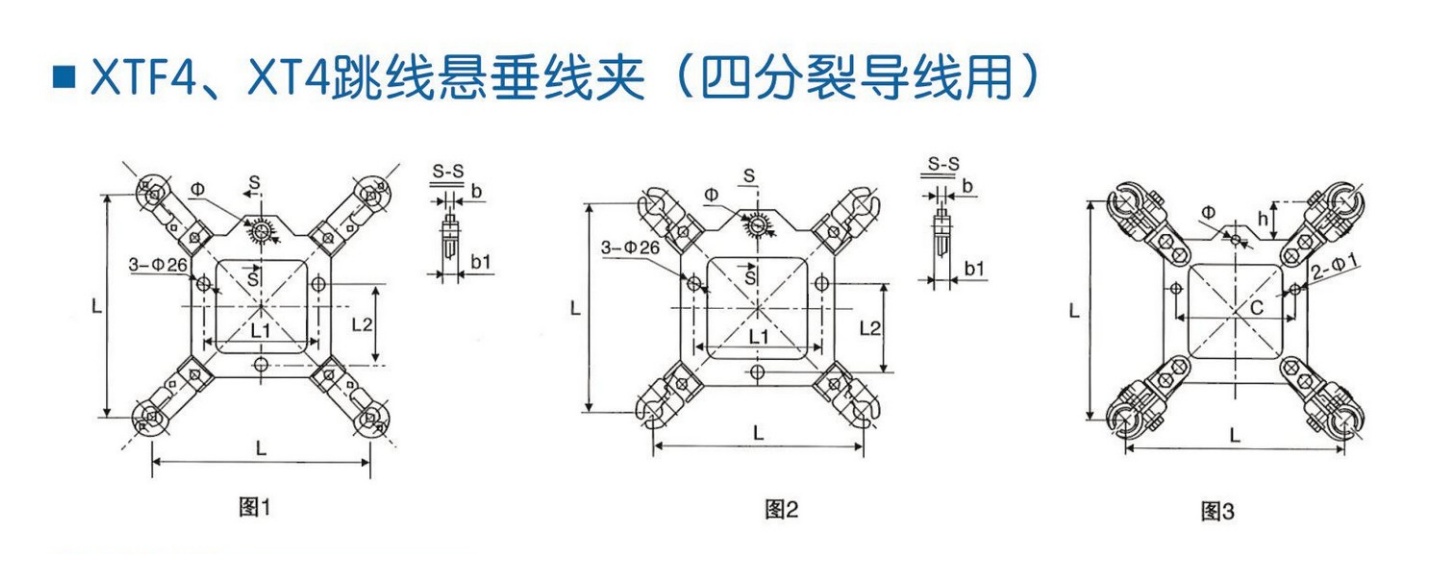

Four-split XTF4 and single-clamp XT families
13.0-40.0 mm conductor coverage
Aluminium-alloy clamp body
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL XTF4 four-split and XT aluminium-alloy jumper suspension clamps support bundled jumper conductors. Models cover conductor diameters from 13.0 to 40.0 mm and bundle arrangements up to 700 mm. The listed range is XTF4-45300 to XT4-500/720; XT-4022 to XT-6040.
The published KOVYEL range is XTF4-45300 to XT4-500/720; XT-4022 to XT-6040. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
