KOVYEL · CONDUCTOR CONNECTORS & EQUIPMENT CLAMPS JB Aluminium Parallel Groove Clamps
BOLTED CONNECTOR · CATALOGUE-BACKED RANGE

JB Aluminium Parallel Groove Clamps

Conductor Connectors & Equipment Clamps · Drawing-confirmed project supply

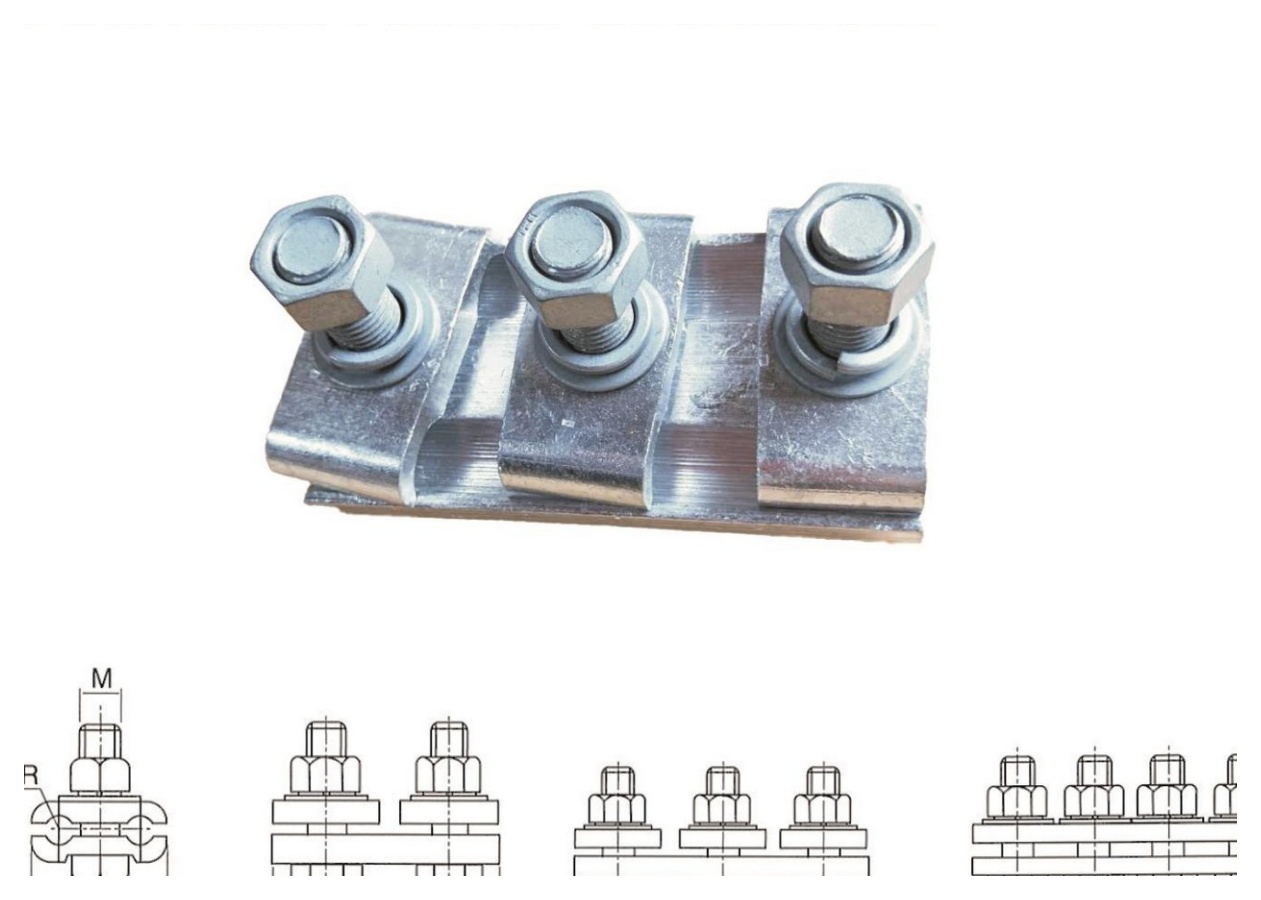

KOVYEL JB aluminium parallel groove clamps provide non-load-bearing connections and branches for aluminium and aluminium-alloy conductors. JB-1 to JB-7 cover conductor sections from 16 to 630 mm² with one-, two- or three-bolt bodies.

Drawing-Matched Project RFQ Supply JB model dimensions and conductor sections confirmed by KOVYEL
Product categoryConductor Connectors & Equipment Clamps
Representative rangeJB-1 to JB-7
Technical basisJB model dimensions and conductor sections confirmed by KOVYEL
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

JB Aluminium Parallel Groove Clamps: product overview

KOVYEL JB aluminium parallel groove clamps provide non-load-bearing connections and branches for aluminium and aluminium-alloy conductors. JB-1 to JB-7 cover conductor sections from 16 to 630 mm² with one-, two- or three-bolt bodies.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductJB Aluminium Parallel Groove Clamps
CategoryConductor Connectors & Equipment Clamps
Representative range / modelsJB-1 to JB-7; 16-630 mm²
Standards / reference basisJB model dimensions and conductor sections confirmed by KOVYEL
Typical applicationsOverhead conductor branches; Jumper connections; Distribution conductor joints; Non-load-bearing aluminium conductor connections

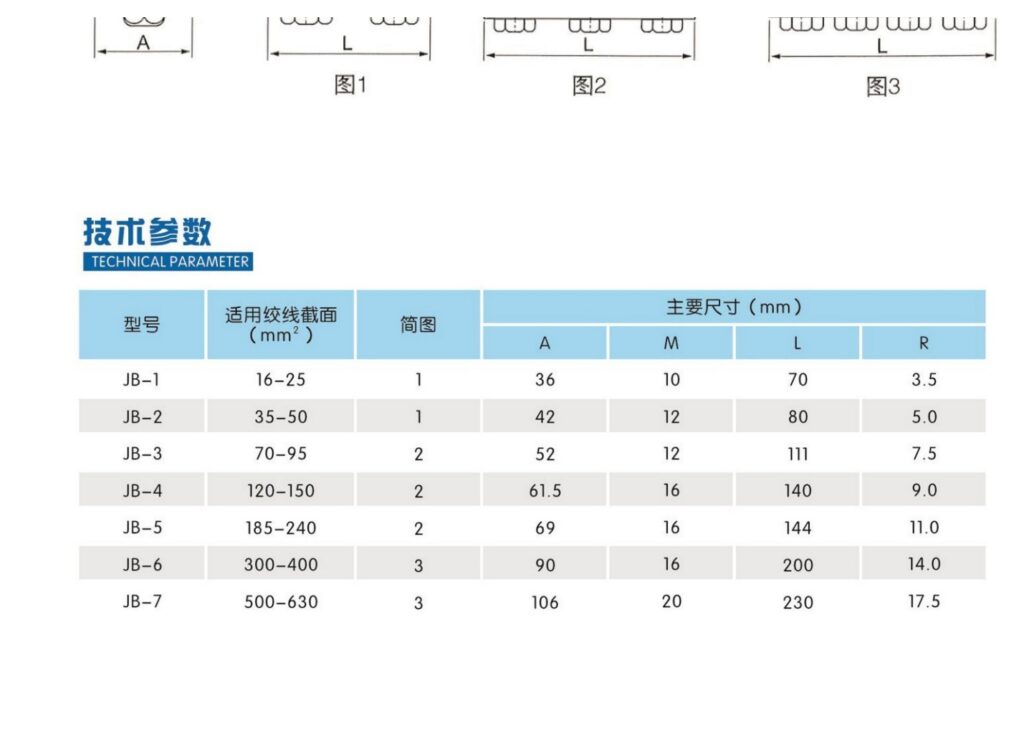

JB-116-25 mm²; figure 1; A 36 mm; M10; L 70 mm; R 3.5 mm
JB-235-50 mm²; figure 1; A 42 mm; M12; L 80 mm; R 5.0 mm
JB-370-95 mm²; figure 2; A 52 mm; M12; L 111 mm; R 7.5 mm
JB-4120-150 mm²; figure 2; A 61.5 mm; M16; L 140 mm; R 9.0 mm
JB-5185-240 mm²; figure 2; A 69 mm; M16; L 144 mm; R 11.0 mm
JB-6300-400 mm²; figure 3; A 90 mm; M16; L 200 mm; R 14.0 mm
JB-7500-630 mm²; figure 3; A 106 mm; M20; L 230 mm; R 17.5 mm
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

Overhead conductor branches

High-strength aluminium-alloy body

02

Jumper connections

One-, two- and three-bolt arrangements

03

Distribution conductor joints

Large-radius conductor grooves

04

Non-load-bearing aluminium conductor connections

Model-specific groove radius and dimensions

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

KOVYEL JB aluminium parallel groove clamps provide non-load-bearing connections and branches for aluminium and aluminium-alloy conductors. JB-1 to JB-7 cover conductor sections from 16 to 630 mm² with one-, two- or three-bolt bodies.

JB Aluminium Parallel Groove Clamps: non-tension conductor and contact-material approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for JB Aluminium Parallel Groove Clamps.

ItemInformation for technical approval
01Main and branch aluminium or aluminium-alloy conductor sizes and diameters.
02Exact JB model and groove pairing for the non-load-bearing connection.
03Bolt arrangement and model-specific tightening and contact-preparation instructions.
04Required connection duty, accessories and project acceptance records.

Define the BOQ supply scope

Identify the main and branch conductors on each connector BOQ line. Define the exact clamp model and included fastening parts and clarify whether any adjoining conductor, insulation or installation accessories are included.

Technical submittals and inspection requirements

Request the relevant model-selection matrix, conductor-fit information and installation instructions. State the required material/contact combination and connection acceptance records and confirm applicability to the proposed conductor pair.

Packing, identification and delivery

Label connectors by the selected model and main/branch conductor reference. Reconcile quantities by connection type rather than combining different conductor pairs in an unspecified lot.

Buyer questions

Can one conductor cross-section define the connector model?

Provide both main and branch conductor materials, designations and cross-sections. Select the exact model from the applicable matrix and confirm the matched grooves and installation procedure.

How should JB Aluminium Parallel Groove Clamps be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

PRODUCT SELECTION SUMMARY

JB Aluminium Parallel Groove Clamps: key facts for technical buyers.

Concise catalogue facts for model comparison, product matching and AI-assisted technical research.

What is JB Aluminium Parallel Groove Clamps?

KOVYEL JB aluminium parallel groove clamps provide non-load-bearing connections and branches for aluminium and aluminium-alloy conductors. JB-1 to JB-7 cover conductor sections from 16 to 630 mm² with one-, two- or three-bolt bodies. The listed range is JB-1 to JB-7; 16-630 mm².

Which models or ratings are covered?

The published KOVYEL range is JB-1 to JB-7; 16-630 mm². Final configuration is confirmed against the required electrical, mechanical and dimensional data.

What information is needed to select JB Aluminium Parallel Groove Clamps?

For a matched quotation, provide: Required JB model, bolt arrangement and quantity; Main and branch conductor materials, designations and cross-sections; Actual conductor diameters and bare or insulated conductor construction; Connection layout, bolt arrangement and available installation space; Operating current, environment and required insulating cover or accessories; Required project standards and test documents, destination and delivery schedule.

QUOTATION CHECKLIST

Send these details for an accurate offer.

A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.

01Required JB model, bolt arrangement and quantity
02Main and branch conductor materials, designations and cross-sections
03Actual conductor diameters and bare or insulated conductor construction
04Connection layout, bolt arrangement and available installation space
05Operating current, environment and required insulating cover or accessories
06Required project standards and test documents, destination and delivery schedule

Have a BOQ, drawing or equipment schedule?

Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.

Send Project RFQ →

PRODUCT AND INTERFACE SELECTION

Compare aluminium parallel-groove clamps.

Match both conductor sizes, the specified bolt arrangement and the required insulating cover. Compare the published model ranges and regional configurations before choosing a non-load-bearing branch connection.
