KOVYEL JBTY special aluminium parallel groove clamps cover conductor sections from 10 to 240 mm² in three compact two-bolt models. The Y designation identifies versions supplied for use with the matched insulating cover.
KOVYEL JBTY special aluminium parallel groove clamps cover conductor sections from 10 to 240 mm² in three compact two-bolt models. The Y designation identifies versions supplied for use with the matched insulating cover.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JBTY Special Aluminium Parallel Groove Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | JBTY-10-95, JBTY-16-120 and JBTY-50-240 |
| Standards / reference basis | JBTY model table and insulation requirement confirmed by KOVYEL |
| Typical applications | Insulated aluminium conductor branches; Distribution conductor joints; Non-load-bearing overhead connections; Covered parallel-groove connections |

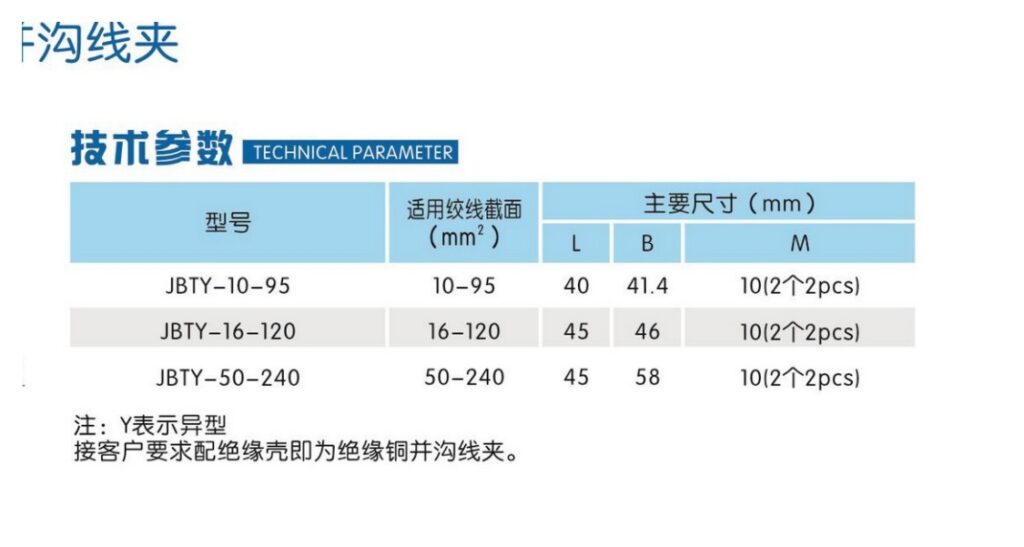

| JBTY-10-95 | 10-95 mm²; L 40 mm; B 41.4 mm; two M10 bolts |
| JBTY-16-120 | 16-120 mm²; L 45 mm; B 46 mm; two M10 bolts |
| JBTY-50-240 | 50-240 mm²; L 45 mm; B 58 mm; two M10 bolts |
| Y designation | Specify the matched insulating cover when required |
| Dimensions | L and B are in mm |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

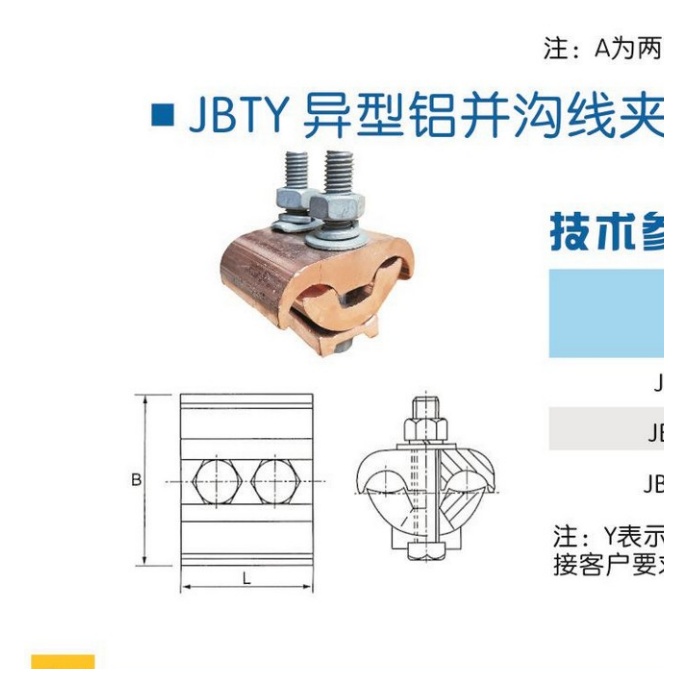

Compact two-bolt body
Three overlapping conductor ranges
Matched insulating cover option
Model-specific L and B dimensions
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL JBTY special aluminium parallel groove clamps cover conductor sections from 10 to 240 mm² in three compact two-bolt models. The Y designation identifies versions supplied for use with the matched insulating cover. The listed range is JBTY-10-95, JBTY-16-120 and JBTY-50-240.
The published KOVYEL range is JBTY-10-95, JBTY-16-120 and JBTY-50-240. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
