Conductor Connectors & Equipment Clamps · Drawing-confirmed project supply
KOVYEL JBLY special aluminium parallel groove clamps provide non-load-bearing overhead conductor connections in model ranges from 6-16 mm² to 120-400 mm². Hangzhou and Beijing configuration variants are available with model-specific body dimensions and M8, M10 or M12 fasteners.
KOVYEL JBLY special aluminium parallel groove clamps provide non-load-bearing overhead conductor connections in model ranges from 6-16 mm² to 120-400 mm². Hangzhou and Beijing configuration variants are available with model-specific body dimensions and M8, M10 or M12 fasteners.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

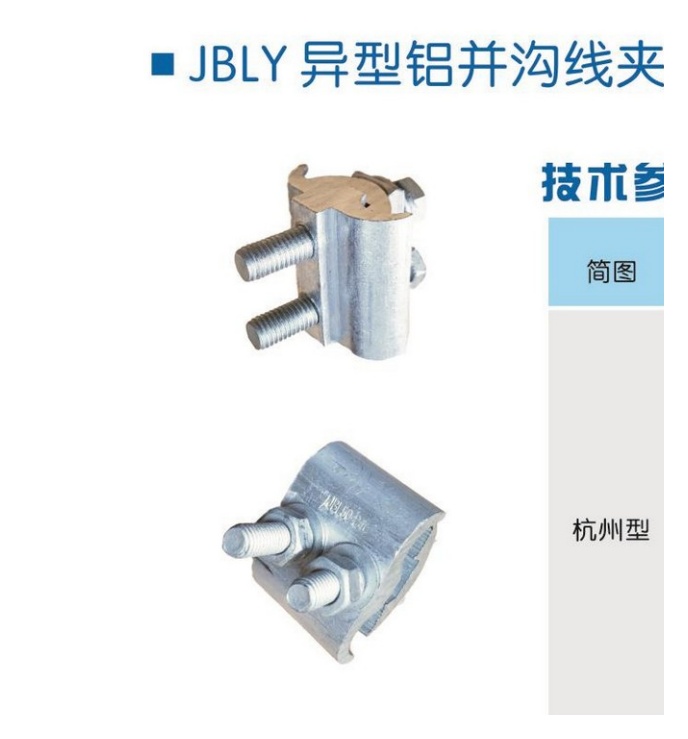

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

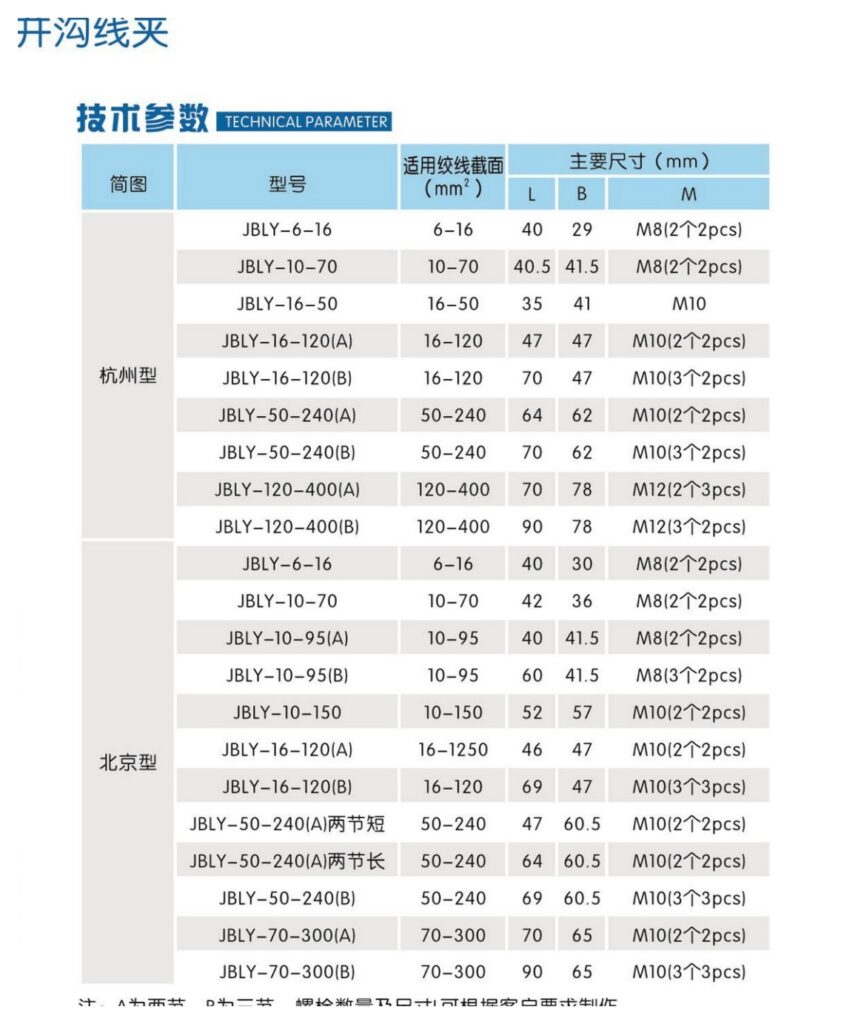

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JBLY Special Aluminium Parallel Groove Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | JBLY-6-16 to JBLY-120-400; Hangzhou and Beijing variants |
| Standards / reference basis | JBLY model table and approved conductor combination confirmed by KOVYEL |
| Typical applications | Aluminium conductor branches; Non-load-bearing overhead connections; Distribution line rehabilitation; Project-specific regional utility arrangements |
| Conductor ranges | 6-16, 10-70, 10-95, 10-150, 16-120, 50-240, 70-300 and 120-400 mm² |
| Hangzhou variants | JBLY-6-16 through JBLY-120-400 with A/B options on larger ranges |
| Beijing variants | JBLY-6-16 through JBLY-70-300 with A/B and two- or three-bolt options |
| Fasteners | M8 for small ranges; M10 for medium ranges; M12 for 120-400 mm² |
| Body length L | 35-90 mm depending on model |
| Body width B | 29-78 mm depending on model |
| Selection | Confirm regional configuration, A/B version, conductor sections and bolt count |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Special aluminium parallel-groove body
Two- or three-bolt arrangements by model
M8, M10 and M12 fastener options
A and B variants provide different body lengths and bolt counts
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL JBLY special aluminium parallel groove clamps provide non-load-bearing overhead conductor connections in model ranges from 6-16 mm² to 120-400 mm². Hangzhou and Beijing configuration variants are available with model-specific body dimensions and M8, M10 or M12 fasteners. The listed range is JBLY-6-16 to JBLY-120-400; Hangzhou and Beijing variants.
The published KOVYEL range is JBLY-6-16 to JBLY-120-400; Hangzhou and Beijing variants. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
