KOVYEL · CONDUCTOR CONNECTORS & EQUIPMENT CLAMPS H-Type Compression Clamps
COMPRESSION CONNECTOR · CATALOGUE-BACKED RANGE

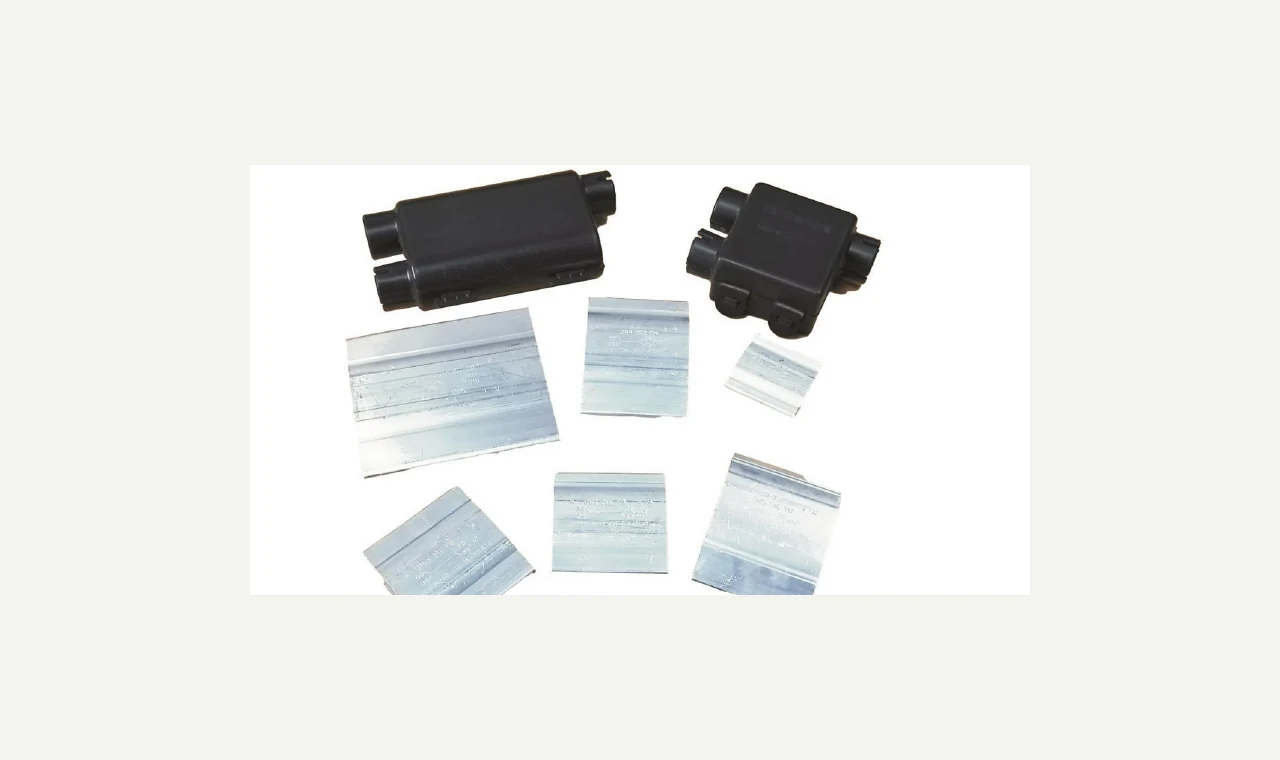

H-Type Compression Clamps

Conductor Connectors & Equipment Clamps · Drawing-confirmed project supply

H-shaped compression connectors for aluminium-to-aluminium and aluminium-to-copper conductor connections.

Drawing-Matched Project RFQ Supply Approved compression procedure
Product categoryConductor Connectors & Equipment Clamps
Representative rangeLH11
Technical basisApproved compression procedure
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

H-Type Compression Clamps: product overview

H-shaped compression connectors for aluminium-to-aluminium and aluminium-to-copper conductor connections.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductH-Type Compression Clamps
CategoryConductor Connectors & Equipment Clamps
Representative range / modelsLH11; LH21; LH22; LH31; LH32; LH41
Standards / reference basisApproved compression procedure; Utility specification; Catalogue model data
Typical applicationsOverhead conductor branches; House-line connections; Distribution network joints; Dissimilar conductor transitions
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

Overhead conductor branches

Compression connection with matched die

02

House-line connections

Conductor grooves selected by main and branch range

03

Distribution network joints

Aluminium and copper transition options

04

Dissimilar conductor transitions

Installation sequence confirmed against connector model

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

H-shaped compression connectors for aluminium-to-aluminium and aluminium-to-copper conductor connections.

H-Type Compression Clamps: compression joint and tooling approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for H-Type Compression Clamps.

ItemInformation for technical approval
01Main and branch conductor materials, diameters and cross-sections.
02Required aluminium-to-aluminium or aluminium-to-copper contact combination.
03Exact H-type model, compression tool and matched die schedule.
04Approved joint arrangement, installation sequence and connection acceptance requirements.

Define the BOQ supply scope

Identify the main and branch conductors on each connector BOQ line. Define the exact clamp model and included fastening parts and clarify whether any adjoining conductor, insulation or installation accessories are included.

Technical submittals and inspection requirements

Provide the main and branch conductor schedule and the required joint drawing. Request the exact connector selection matrix, compression tooling and die information, installation sequence and specified connection acceptance records. Confirm their applicability to the offered conductor pair before purchase.

Packing, identification and delivery

Label connectors by the selected model and main/branch conductor reference. Reconcile quantities by connection type rather than combining different conductor pairs in an unspecified lot.

Buyer questions

Can one conductor cross-section define the connector model?

Provide both main and branch conductor materials, designations and cross-sections. Select the exact model from the applicable matrix and confirm the matched grooves and installation procedure.

How should H-Type Compression Clamps be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

QUOTATION CHECKLIST

Send these details for an accurate offer.

A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.

01Main conductor material and range
02Branch conductor material and range
03Conductor diameters
04Required connector model
05Compression tool and die
06Quantity

Have a BOQ, drawing or equipment schedule?

Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.

Send Project RFQ →

PRODUCT SELECTION AND PROCUREMENT

Compare products and prepare your quotation.

Review the published dimensions, duty and interfaces for each item. Related catalogue products are comparison references; suitability and interchangeability follow the confirmed specification.
