KOVYEL SY aluminium and SYG copper-aluminium compression equipment clamps connect heat-resistant or standard overhead conductors to equipment terminals. Straight, 30-degree and 90-degree forms cover conductor families up to 800 mm², with single- and double-conductor arrangements available.
KOVYEL SY aluminium and SYG copper-aluminium compression equipment clamps connect heat-resistant or standard overhead conductors to equipment terminals. Straight, 30-degree and 90-degree forms cover conductor families up to 800 mm², with single- and double-conductor arrangements available.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | SY & SYG Compression Equipment Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | SY and SYG A/B/C forms; SSY/SSYG double-conductor forms; SYT terminal forms |
| Standards / reference basis | SY, SYG, SSY, SSYG and SYT model tables and conductor schedules confirmed by KOVYEL |
| Typical applications | Substation equipment terminals; Heat-resistant conductor connections; Copper-aluminium transition equipment connections; Single- and double-conductor bus arrangements |

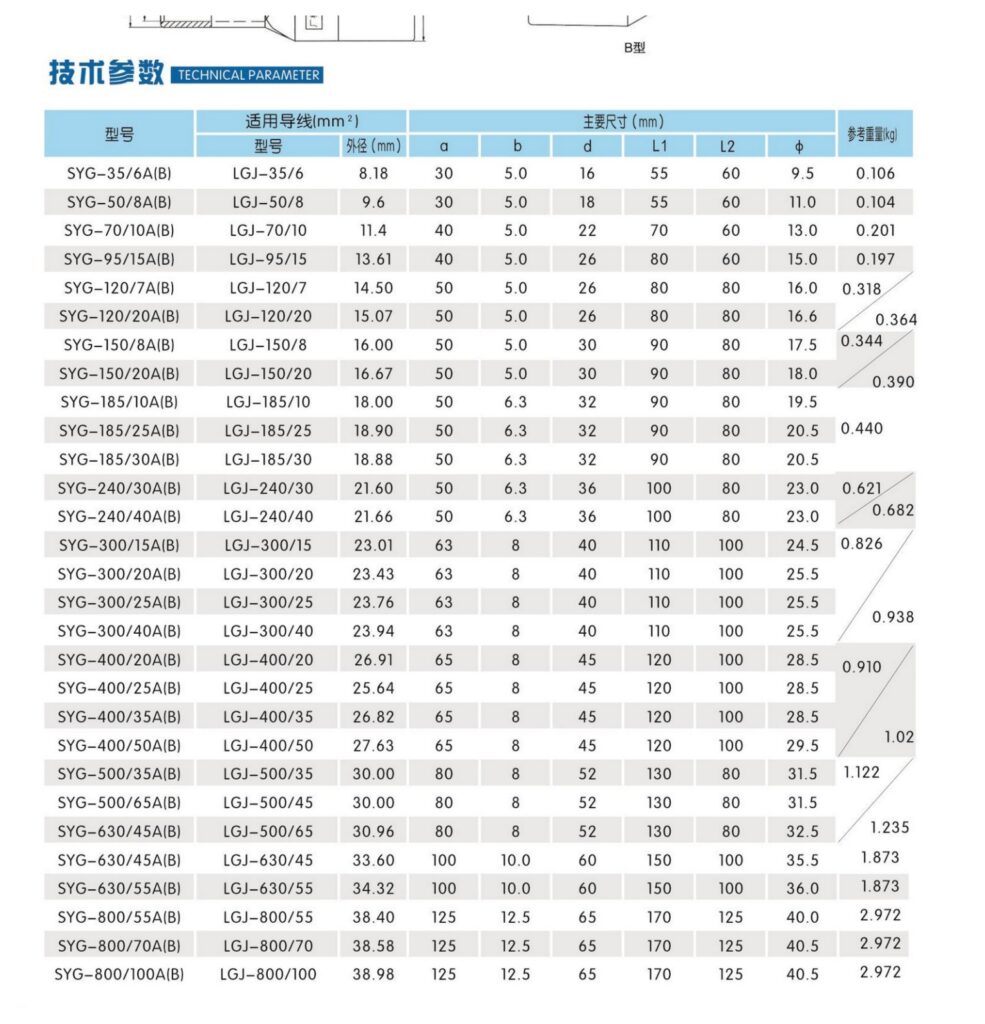

| SY / SYG straight and 30-degree | Models for LGJ conductors from 35/6 through 800/100; A and B forms |
| SY / SYG 90-degree | C-form models for conductor sections through 800 mm² |
| SSY / SSYG double conductor | Two-conductor equipment clamps with 120, 200 or 400 mm terminal lengths |
| Large-conductor models | Single- and double-conductor variants for 600-1440 mm²-class conductor outside diameters |
| SYT range | SYT-35A/B through SYT-800A/B; terminal widths 30-100 mm |
| Selection | Confirm conductor designation, count, terminal angle, plate size and transition material |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Straight, 30-degree and 90-degree forms
Aluminium and copper-aluminium transition versions
Single- and double-conductor configurations
Model selection by conductor designation and outside diameter
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL SY aluminium and SYG copper-aluminium compression equipment clamps connect heat-resistant or standard overhead conductors to equipment terminals. Straight, 30-degree and 90-degree forms cover conductor families up to 800 mm², with single- and double-conductor arrangements available. The listed range is SY and SYG A/B/C forms; SSY/SSYG double-conductor forms; SYT terminal forms.
The published KOVYEL range is SY and SYG A/B/C forms; SSY/SSYG double-conductor forms; SYT terminal forms. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
