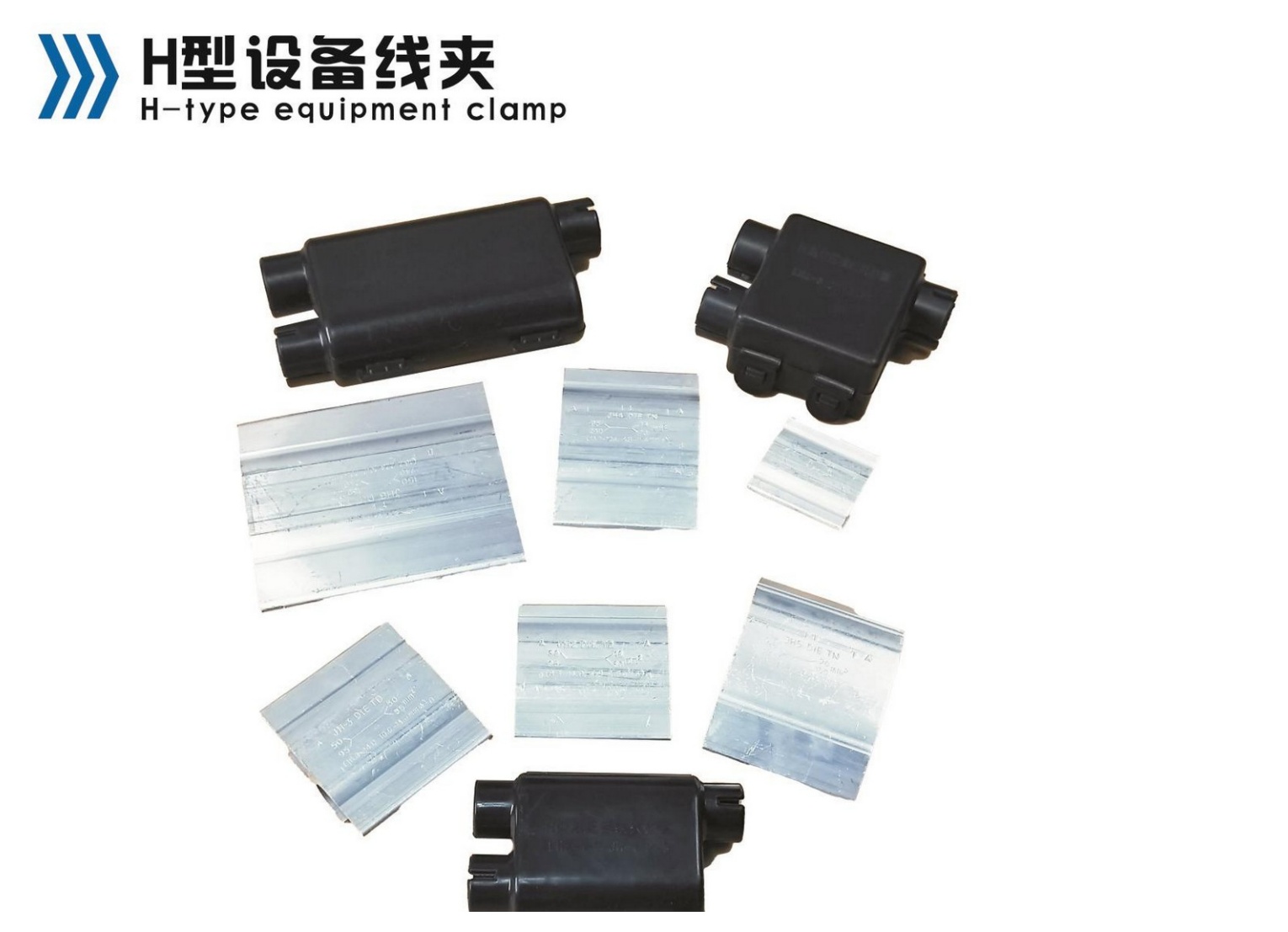

KOVYEL LH H-type aluminium compression clamps join aluminium-to-aluminium and aluminium-to-copper conductor combinations in jumper, branch and service connections. Six models cover main conductors from 16 to 240 mm² and branch conductors from 16 to 240 mm².
KOVYEL LH H-type aluminium compression clamps join aluminium-to-aluminium and aluminium-to-copper conductor combinations in jumper, branch and service connections. Six models cover main conductors from 16 to 240 mm² and branch conductors from 16 to 240 mm².
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | LH H-Type Aluminium Compression Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | LH11, LH21, LH22, LH31, LH32 and LH41; 16-240 mm² |
| Standards / reference basis | LH model table, approved compression procedure and conductor schedule confirmed by KOVYEL |
| Typical applications | Overhead jumper connections; Branch conductor connections; Service and household line connections; Aluminium-to-copper transition joints |

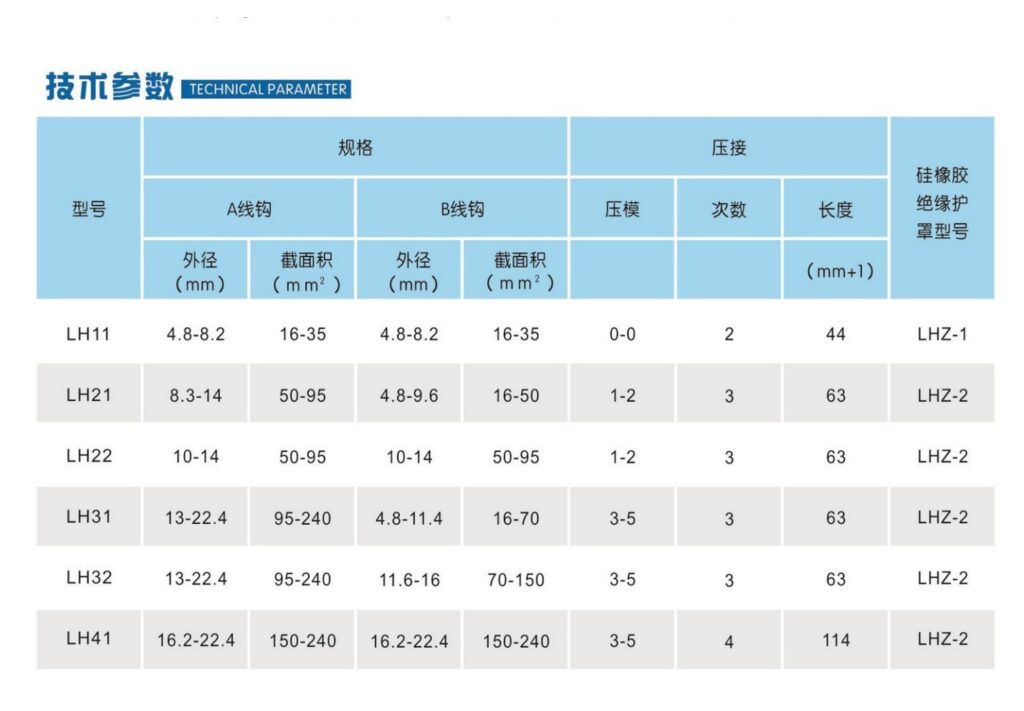

| LH11 | A 4.8-8.2 mm / 16-35 mm²; B 4.8-8.2 mm / 16-35 mm²; die 0-0; 2 compressions; length 44 mm; cover LHZ-1 |
| LH21 | A 8.3-14 mm / 50-95 mm²; B 4.8-9.6 mm / 16-50 mm²; die 1-2; 3 compressions; length 63 mm; cover LHZ-2 |
| LH22 | A 10-14 mm / 50-95 mm²; B 10-14 mm / 50-95 mm²; die 1-2; 3 compressions; length 63 mm; cover LHZ-2 |
| LH31 | A 13-22.4 mm / 95-240 mm²; B 4.8-11.4 mm / 16-70 mm²; die 3-5; 3 compressions; length 63 mm; cover LHZ-2 |
| LH32 | A 13-22.4 mm / 95-240 mm²; B 11.6-16 mm / 70-150 mm²; die 3-5; 3 compressions; length 63 mm; cover LHZ-2 |
| LH41 | A 16.2-22.4 mm / 150-240 mm²; B 16.2-22.4 mm / 150-240 mm²; die 3-5; 4 compressions; length 114 mm; cover LHZ-2 |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Pure aluminium compression body
Model-specific die and compression count
Optional matched silicone-rubber insulating cover
Compression sequence and conductor preparation must follow the approved procedure
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL LH H-type aluminium compression clamps join aluminium-to-aluminium and aluminium-to-copper conductor combinations in jumper, branch and service connections. Six models cover main conductors from 16 to 240 mm² and branch conductors from 16 to 240 mm². The listed range is LH11, LH21, LH22, LH31, LH32 and LH41; 16-240 mm².
The published KOVYEL range is LH11, LH21, LH22, LH31, LH32 and LH41; 16-240 mm². Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
