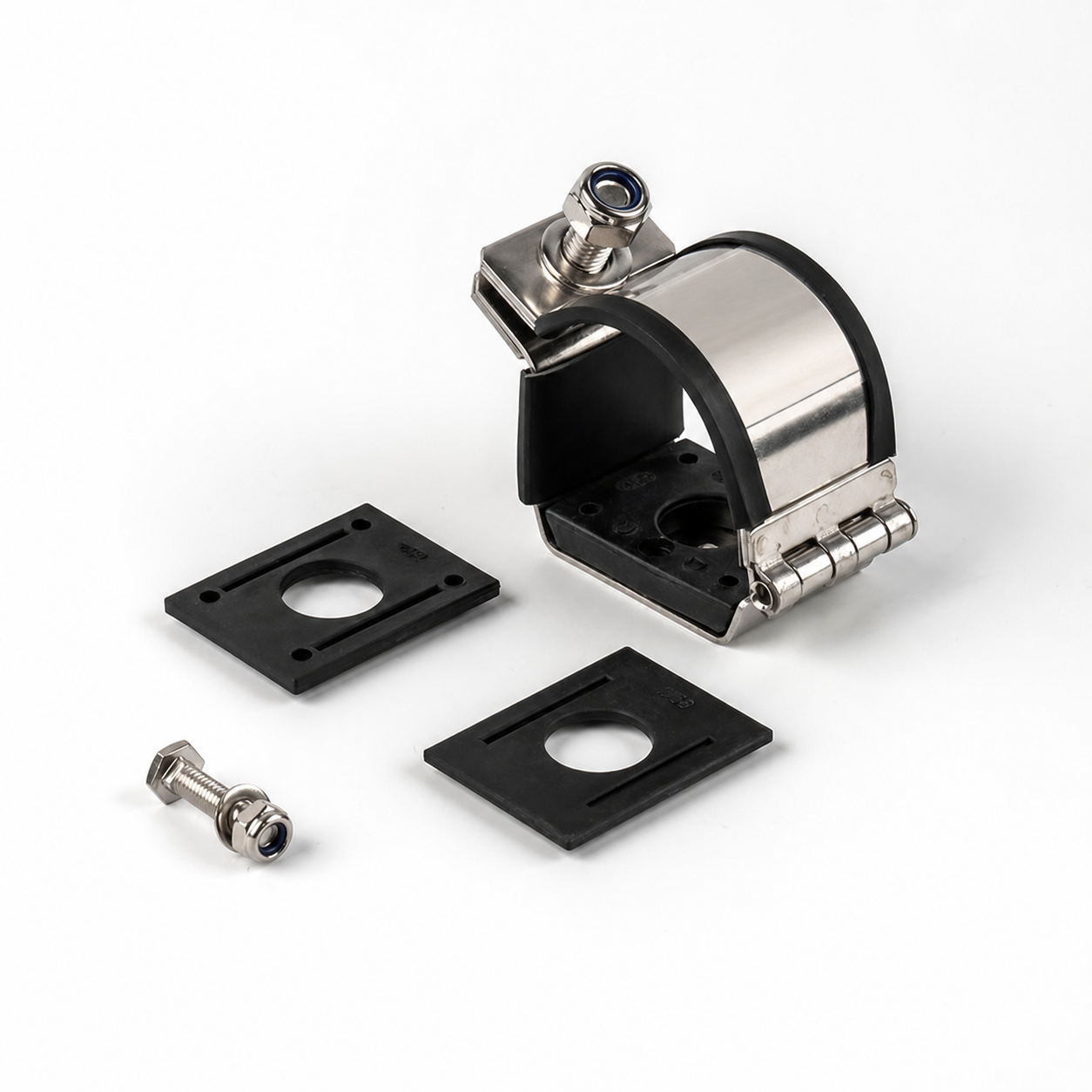

T-3035 Low Smoke Trefoil Cable Cleats for 30-35mm Cable With M8 Bolt
Trefoil & Multicore Cable Cleats · Drawing-confirmed project supply
The T-3035 listing identifies a trefoil cleat for 30–35 mm cable and an M8 fixing reference. Match the cable layout and support interface before confirming the item.
T-3035 trefoil cable cleat
This page identifies the t-3035 trefoil cable cleat configuration. Use its cable range and arrangement to prepare a shortlist, then confirm the cable and mounting dimensions against the actual installation.
Selection details for this configuration
Use T-3035 together with the actual cable diameter and support drawing in your inquiry. If low-smoke performance is required, specify the test requirement and request documentation for the selected configuration.
Supply scope and matching parts
Identify whether the quotation should include liners, inserts, mounting bolts, nuts or washers. Confirm fixing lengths and the support interface; inclusion of these parts must be stated in the quotation.
Identify the configuration before comparing offers
Use the listed configuration to identify the item for inquiry. Complete dimensions, required performance and the supply set must be confirmed for the selected order.
| Cable range listed | 30–35 mm |
|---|---|
| Cable arrangement | Trefoil |
| Material / construction reference | Confirm material and liner specification |
| Mounting reference | M8 reference; confirm hole pattern |
| Cleat spacing | Provide the designed spacing and support layout |
| Short-circuit or environmental performance | Confirm against the selected item and required test documentation |
A cable range or mounting-bolt size alone does not establish short-circuit restraint performance. Provide the cable formation, fault-duty requirement, support layout and cleat spacing for review.
Compare related catalogue entries
| Catalogue entry | Listed size | Construction / mounting reference |
|---|---|---|
| 10–13 mm single cable cleat | 10–13 mm | One mounting hole; M10 reference |
| 23–28 mm trefoil / quad cable cleats | 23–28 mm | Confirm fixing size and hole pattern |
| 25–40 mm polymer trefoil cable cleat | 25–40 mm | Confirm fixing size and hole pattern |
| 50–60 mm polymer trefoil cable cleat | 50–60 mm | Two mounting holes; M10 reference |
| 27–28 mm cast-aluminium trefoil cable cleat | 27–28 mm | Confirm fixing size and hole pattern |
| T-3035 trefoil cable cleat | 30–35 mm | M8 reference; confirm hole pattern |
These entries are comparison references, not interchangeable substitutes. Confirm the complete configuration and installation requirements.
Match the item to the installation
Cable route selection
Match the cable group to the listed arrangement and confirm the outside diameter.
Support interface
Check the cleat base and fixing pattern against the support drawing.
Replacement or extension
Identify the installed model and configuration; similar appearance is insufficient to establish equivalence.
What to send with your inquiry
- Product reference: T-3035 trefoil cable cleat
- Actual cable outside diameter and tolerance; cable data sheet
- Cable arrangement and mounting-hole drawing
- Support material, thickness and proposed cleat spacing
- Fault-duty and environmental requirements; required documentation
- Cleat and fixing quantities, destination and schedule
You can start an inquiry before every detail is available. Identify which dimensions or requirements still need confirmation and attach the available drawing or schedule.
Request a quotation for this product →Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
