KOVYEL · TREFOIL & MULTICORE CABLE CLEATS 23~28mm Multicore Trefoil Quad Cable Cleats For Data Centers
METAL CABLE CLEAT · CATALOGUE-BACKED RANGE

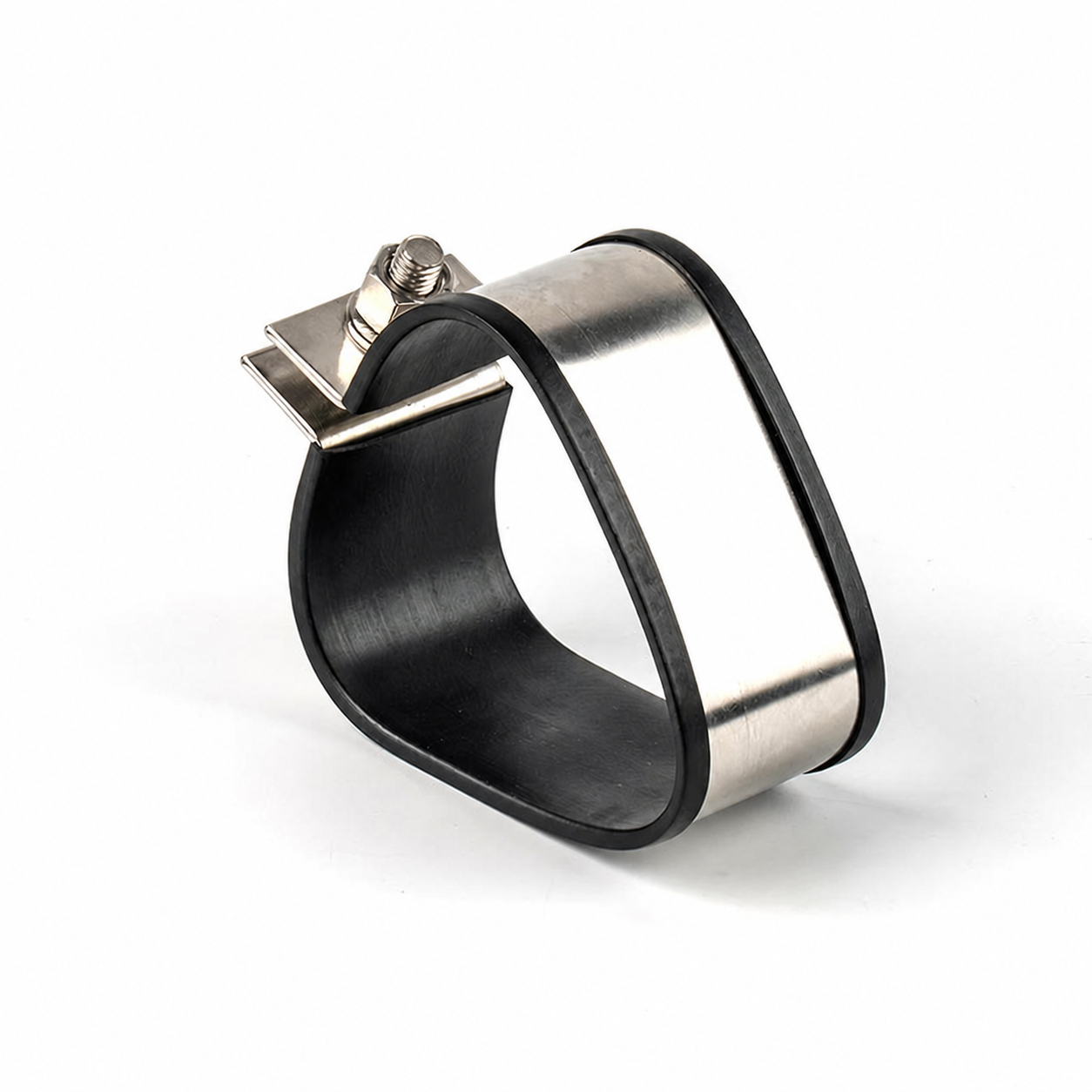

23~28mm Multicore Trefoil Quad Cable Cleats For Data Centers

Trefoil & Multicore Cable Cleats · Drawing-confirmed project supply

A cable-cleat listing covering 23–28 mm cables and trefoil or quad arrangements. Identify the required arrangement explicitly when requesting a quotation.

Drawing-Matched Project RFQ Supply Approved project specification
Product categoryTrefoil & Multicore Cable Cleats
Representative rangeSingle and trefoil cable arrangements
Technical basisApproved project specification
Supply modeProject quotation / coordinated supply
PRODUCT & SUPPLY SCOPE

23–28 mm trefoil / quad cable cleats

This page identifies the 23–28 mm trefoil / quad cable cleats configuration. Use its cable range and arrangement to prepare a shortlist, then confirm the cable and mounting dimensions against the actual installation.

Selection details for this configuration

Trefoil and quad configurations require different cable layouts. Attach a cross-section of the cable group rather than using cable diameter alone to identify the cleat.

Supply scope and matching parts

Identify whether the quotation should include liners, inserts, mounting bolts, nuts or washers. Confirm fixing lengths and the support interface; inclusion of these parts must be stated in the quotation.

CONFIGURATION & COMPARISON

Identify the configuration before comparing offers

Use the listed configuration to identify the item for inquiry. Complete dimensions, required performance and the supply set must be confirmed for the selected order.

Cable range listed23–28 mm
Cable arrangementTrefoil / quad — specify configuration
Material / construction referenceConfirm selected construction
Mounting referenceConfirm fixing size and hole pattern
Cleat spacingProvide the designed spacing and support layout
Short-circuit or environmental performanceConfirm against the selected item and required test documentation

A cable range or mounting-bolt size alone does not establish short-circuit restraint performance. Provide the cable formation, fault-duty requirement, support layout and cleat spacing for review.

Compare related catalogue entries

Catalogue entryListed sizeConstruction / mounting reference
10–13 mm single cable cleat10–13 mmOne mounting hole; M10 reference
23–28 mm trefoil / quad cable cleats23–28 mmConfirm fixing size and hole pattern
25–40 mm polymer trefoil cable cleat25–40 mmConfirm fixing size and hole pattern
50–60 mm polymer trefoil cable cleat50–60 mmTwo mounting holes; M10 reference
27–28 mm cast-aluminium trefoil cable cleat27–28 mmConfirm fixing size and hole pattern
T-3035 trefoil cable cleat30–35 mmM8 reference; confirm hole pattern

These entries are comparison references, not interchangeable substitutes. Confirm the complete configuration and installation requirements.

APPLICATION CHECKS

Match the item to the installation

Cable route selection

Match the cable group to the listed arrangement and confirm the outside diameter.

Support interface

Check the cleat base and fixing pattern against the support drawing.

Replacement or extension

Identify the installed model and configuration; similar appearance is insufficient to establish equivalence.

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

Match the exact 23–28 mm Cable Cleats model to the approved cable, equipment and installation schedule before comparing the supply scope and required acceptance documents.

23–28 mm Cable Cleats: cable layout, restraint and support approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for 23–28 mm Cable Cleats.

ItemInformation for technical approval
01Exact offered model and BOQ item for 23–28 mm Cable Cleats, with the controlling drawing revision.
02Actual cable outside diameter, cable count and single, trefoil, quad or multicore layout.
03Cleat body and liner requirements, mounting-hole dimensions and matched fixing hardware.
04Support spacing, specified restraint duty, installation procedure and configuration-specific test evidence.

Define the BOQ supply scope

Specify the actual cable layout and the exact cleat and fixing arrangement. Separate single, trefoil, quad and multicore configurations in the BOQ. List liners, bolts, support channels and mounting accessories explicitly and clarify whether each offer covers a cleat alone or the complete installed fixing set.

Technical submittals and inspection requirements

Provide cable outside diameters, the support drawing, spacing and project restraint requirements. Request the offered cleat drawing, installation and tightening instructions and applicable acceptance records. Where short-circuit performance or IEC 61914 compliance is required, confirm the tested cable layout, fixing spacing, supporting structure and exact offered configuration; a catalogue title alone does not establish that performance.

Packing, identification and delivery

Identify cleats by model, cable layout, size and BOQ item. Keep liners and matched fasteners identifiable, and reconcile the quantity by support location and separately ordered spare parts.

Buyer questions

Can short-circuit suitability be established from cable diameter alone?

No. The project design must also establish the required duty, cable layout, cleat spacing, fixing arrangement and supporting structure. Review applicable test evidence for the exact proposed configuration.

How should 23–28 mm Cable Cleats be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

QUOTATION INPUTS

What to send with your inquiry

  1. Product reference: 23–28 mm trefoil / quad cable cleats
  2. Actual cable outside diameter and tolerance; cable data sheet
  3. Cable arrangement and mounting-hole drawing
  4. Support material, thickness and proposed cleat spacing
  5. Fault-duty and environmental requirements; required documentation
  6. Cleat and fixing quantities, destination and schedule

You can start an inquiry before every detail is available. Identify which dimensions or requirements still need confirmation and attach the available drawing or schedule.

Request a quotation for this product →

Have a BOQ, drawing or equipment schedule?

Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.

Send Project RFQ →

PRODUCT SELECTION AND PROCUREMENT

Compare products and prepare your quotation.

Review the published dimensions, duty and interfaces for each item. Related catalogue products are comparison references; suitability and interchangeability follow the confirmed specification.

PROJECT INQUIRY

Request a quotation for 23~28mm Multicore Trefoil Quad Cable Cleats For Data Centers

Inquiry scope: 23~28mm Multicore Trefoil Quad Cable Cleats For Data Centers

Add technical details (optional)
