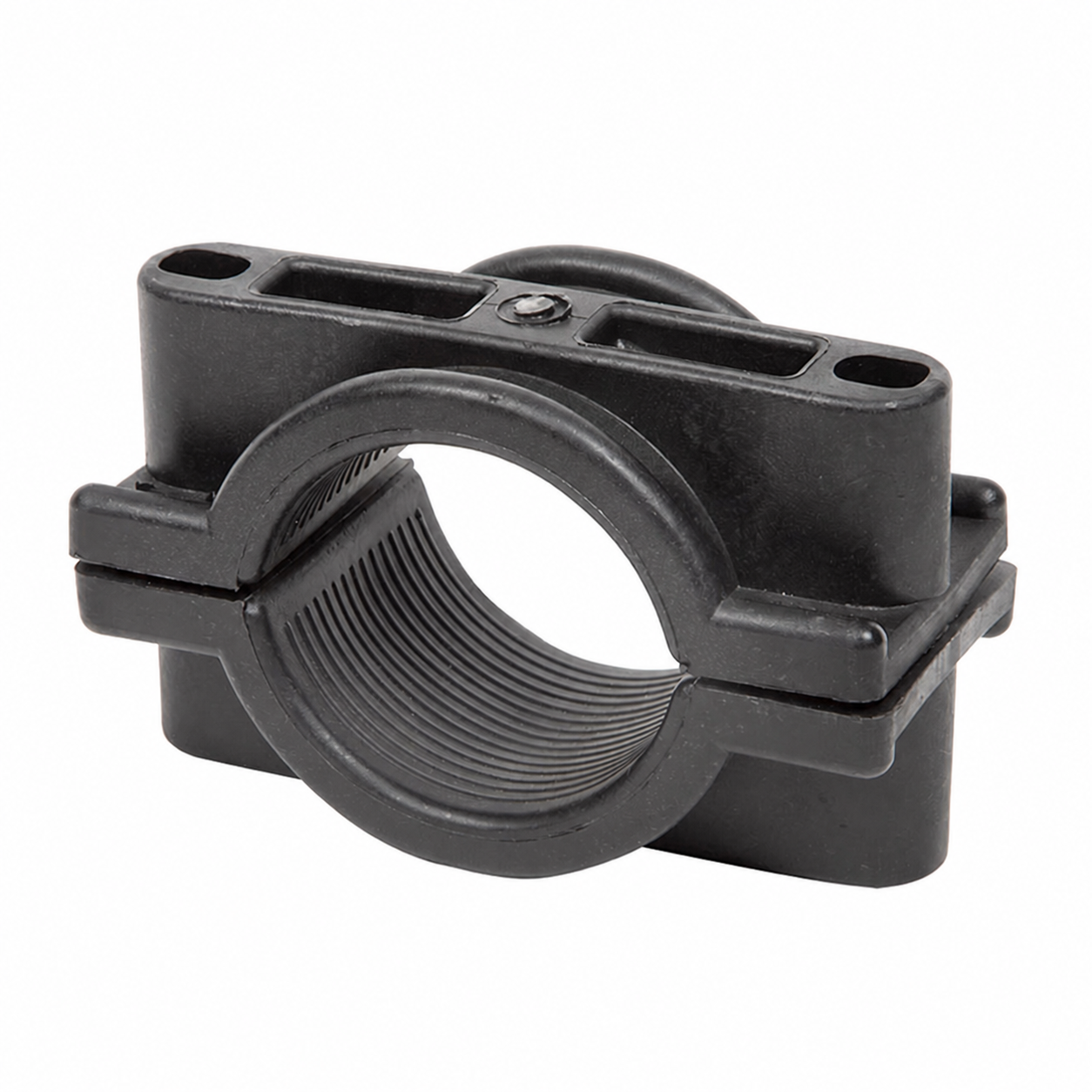

25-40mm Polymer Trefoil Cable Cleat Nylon Three-Core Cable Clamp
Trefoil & Multicore Cable Cleats · Drawing-confirmed project supply
A polymer/nylon trefoil cable-cleat listing with a 25–40 mm cable range. Confirm the cable-group geometry and the actual outside diameter of each cable.
25–40 mm polymer trefoil cable cleat
This page identifies the 25–40 mm polymer trefoil cable cleat configuration. Use its cable range and arrangement to prepare a shortlist, then confirm the cable and mounting dimensions against the actual installation.
Selection details for this configuration
Include a cable-layout sketch. A trefoil arrangement of separate cables and one multicore cable are different selection inputs; state which installation you have.
Supply scope and matching parts
Identify whether the quotation should include liners, inserts, mounting bolts, nuts or washers. Confirm fixing lengths and the support interface; inclusion of these parts must be stated in the quotation.
Identify the configuration before comparing offers
Use the listed configuration to identify the item for inquiry. Complete dimensions, required performance and the supply set must be confirmed for the selected order.
| Cable range listed | 25–40 mm |
|---|---|
| Cable arrangement | Trefoil |
| Material / construction reference | Polymer / nylon |
| Mounting reference | Confirm fixing size and hole pattern |
| Cleat spacing | Provide the designed spacing and support layout |
| Short-circuit or environmental performance | Confirm against the selected item and required test documentation |
A cable range or mounting-bolt size alone does not establish short-circuit restraint performance. Provide the cable formation, fault-duty requirement, support layout and cleat spacing for review.
Compare related catalogue entries
| Catalogue entry | Listed size | Construction / mounting reference |
|---|---|---|
| 10–13 mm single cable cleat | 10–13 mm | One mounting hole; M10 reference |
| 23–28 mm trefoil / quad cable cleats | 23–28 mm | Confirm fixing size and hole pattern |
| 25–40 mm polymer trefoil cable cleat | 25–40 mm | Confirm fixing size and hole pattern |
| 50–60 mm polymer trefoil cable cleat | 50–60 mm | Two mounting holes; M10 reference |
| 27–28 mm cast-aluminium trefoil cable cleat | 27–28 mm | Confirm fixing size and hole pattern |
| T-3035 trefoil cable cleat | 30–35 mm | M8 reference; confirm hole pattern |
These entries are comparison references, not interchangeable substitutes. Confirm the complete configuration and installation requirements.
Match the item to the installation
Cable route selection
Match the cable group to the listed arrangement and confirm the outside diameter.
Support interface
Check the cleat base and fixing pattern against the support drawing.
Replacement or extension
Identify the installed model and configuration; similar appearance is insufficient to establish equivalence.
What to send with your inquiry
- Product reference: 25–40 mm polymer trefoil cable cleat
- Actual cable outside diameter and tolerance; cable data sheet
- Cable arrangement and mounting-hole drawing
- Support material, thickness and proposed cleat spacing
- Fault-duty and environmental requirements; required documentation
- Cleat and fixing quantities, destination and schedule
You can start an inquiry before every detail is available. Identify which dimensions or requirements still need confirmation and attach the available drawing or schedule.
