KOVYEL · SUSPENSION CLAMPS XGH Overhead Conductor Suspension Clamps
PROJECT-MATCHED OVERHEAD LINE EQUIPMENT

XGH Overhead Conductor Suspension Clamps

Suspension Clamps · Drawing-confirmed project supply

KOVYEL XGH suspension clamps support conductors from 5.1 to 45.0 mm in diameter. Seven models provide rated failure loads from 40 to 70 kN.

Drawing-Matched Project RFQ Supply Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly
Product categorySuspension Clamps
Representative rangeXGH-2 to XGH-7
Technical basisModel, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

XGH Overhead Conductor Suspension Clamps: product overview

KOVYEL XGH suspension clamps support conductors from 5.1 to 45.0 mm in diameter. Seven models provide rated failure loads from 40 to 70 kN.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductXGH Overhead Conductor Suspension Clamps
CategorySuspension Clamps
Representative range / modelsXGH-2 to XGH-7
Standards / reference basisModel, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly
Typical applicationsOverhead conductor suspension assemblies; Transmission and distribution line construction; Conductor support at tangent and angle structures

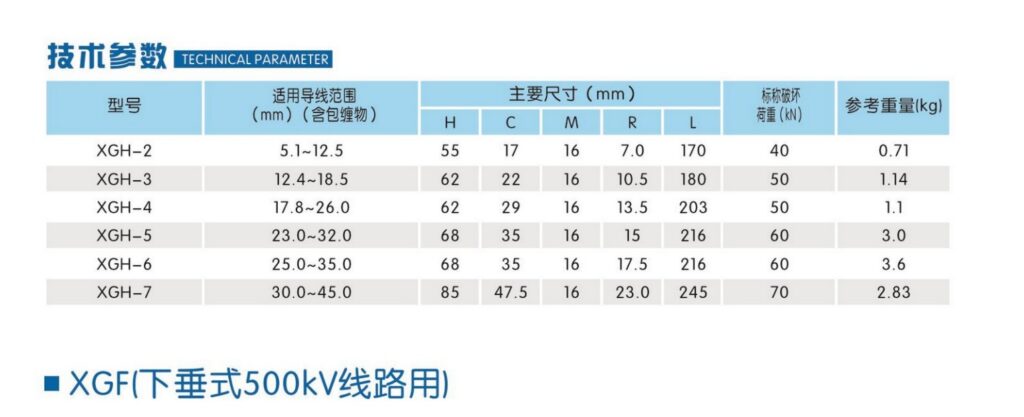

XGH-25.1-12.5 mm conductor; 40 kN rated failure load
XGH-312.4-18.5 mm conductor; 50 kN
XGH-417.8-26.0 mm conductor; 50 kN
XGH-5 / XGH-623.0-35.0 mm conductor; 60 kN
XGH-730.0-45.0 mm conductor; 70 kN

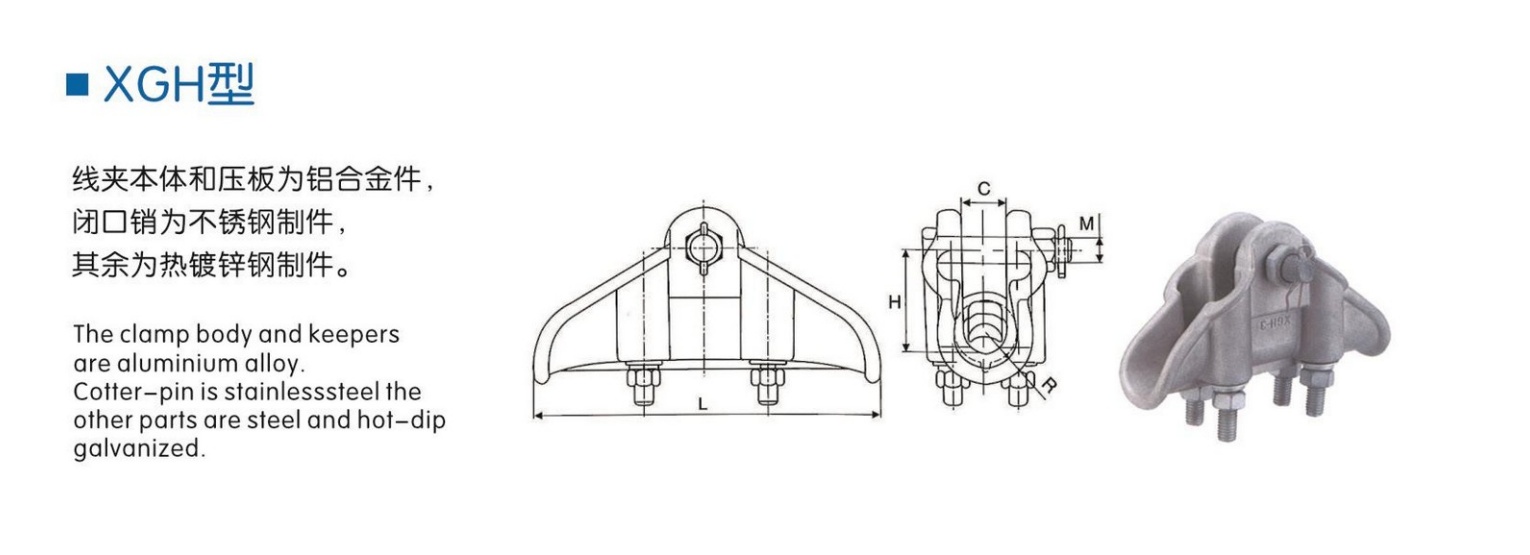

MaterialAluminium-alloy body and keeper with galvanized steel hardware
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

Overhead conductor suspension assemblies

5.1-45.0 mm conductor coverage

02

Transmission and distribution line construction

40-70 kN rated failure load

03

Conductor support at tangent and angle structures

Compact aluminium-alloy clamp body

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

For purchasing teams and project engineers: confirm the exact XGH Overhead Conductor Suspension Clamps configuration, included components and required acceptance documents before comparing quotations.

XGH Overhead Conductor Suspension Clamps: conductor support and suspension approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for XGH Overhead Conductor Suspension Clamps.

ItemInformation for technical approval
01Exact offered model and purchase or BOQ item for XGH Overhead Conductor Suspension Clamps, with the required drawing or specification revision.
02Actual conductor designation, diameter and single or bundled arrangement.
03Required support duty, clamp and string interfaces and jumper geometry where applicable.
04Included protection and fastening components and installation and acceptance information.

Define the BOQ supply scope

Define the clamp and adjacent suspension hardware on the approved support drawing. List required pins, links, fasteners and other accessories explicitly so a clamp body is not compared with a complete suspension set.

Technical submittals and inspection requirements

Attach the conductor schedule and support drawing. Specify the required conductor-fit, dimensional, material and mechanical acceptance information and confirm installation instructions and document availability for the offered arrangement.

Packing, identification and delivery

Label the clamp and matching parts by model and conductor reference. Request packing-list quantities aligned with the number of suspension assemblies and any separately ordered spare components.

Quotation and order planning

Send quantities by exact model and configuration, destination, requested delivery date and required quotation terms. Identify complete assemblies, loose components and spares separately. Ask the quotation to confirm minimum order quantity where applicable, delivery proposal, packing, inspection documents and any phased-shipment requirements. Agree the actual commercial and documentation scope before order release.

Buyer questions

Which interfaces need checking in addition to conductor fit?

Confirm the clamp seat, support connection dimensions, mating fittings and specified suspension duty on the complete assembly drawing.

How should XGH Overhead Conductor Suspension Clamps be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

PRODUCT SELECTION SUMMARY

XGH Overhead Conductor Suspension Clamps: key facts for technical buyers.

Concise catalogue facts for model comparison, product matching and AI-assisted technical research.

What is XGH Overhead Conductor Suspension Clamps?

KOVYEL XGH suspension clamps support conductors from 5.1 to 45.0 mm in diameter. Seven models provide rated failure loads from 40 to 70 kN. The listed range is XGH-2 to XGH-7.

Which models or ratings are covered?

The published KOVYEL range is XGH-2 to XGH-7. Final configuration is confirmed against the required electrical, mechanical and dimensional data.

What information is needed to select XGH Overhead Conductor Suspension Clamps?

For a matched quotation, provide: Required XGH model and quantity; Conductor material, designation and outside diameter including any protection; Specified mechanical load, slip/holding requirements and line support arrangement; Mating link, pin or clevis dimensions and approved suspension-string drawing; Conductor temperature, environment and required wrapping, rods or accessories; Required project standards and test documents, destination and delivery schedule.

QUOTATION CHECKLIST

Send these details for an accurate offer.

A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.

01Required XGH model and quantity
02Conductor material, designation and outside diameter including any protection
03Specified mechanical load, slip/holding requirements and line support arrangement
04Mating link, pin or clevis dimensions and approved suspension-string drawing
05Conductor temperature, environment and required wrapping, rods or accessories
06Required project standards and test documents, destination and delivery schedule

Have a BOQ, drawing or equipment schedule?

Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.

Send Project RFQ →

PRODUCT AND INTERFACE SELECTION

Compare overhead conductor suspension clamps.

Compare conductor diameter, mechanical load, clamp geometry and connection dimensions. Confirm whether the assembly supports a single conductor or a bundle before selecting the model.
