KOVYEL XGA, XGB and XGC suspension clamps provide bag-type conductor support for transmission lines. Model variants cover conductor diameters from 27 to 53 mm and rated failure loads from 60 to 160 kN.
KOVYEL XGA, XGB and XGC suspension clamps provide bag-type conductor support for transmission lines. Model variants cover conductor diameters from 27 to 53 mm and rated failure loads from 60 to 160 kN.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

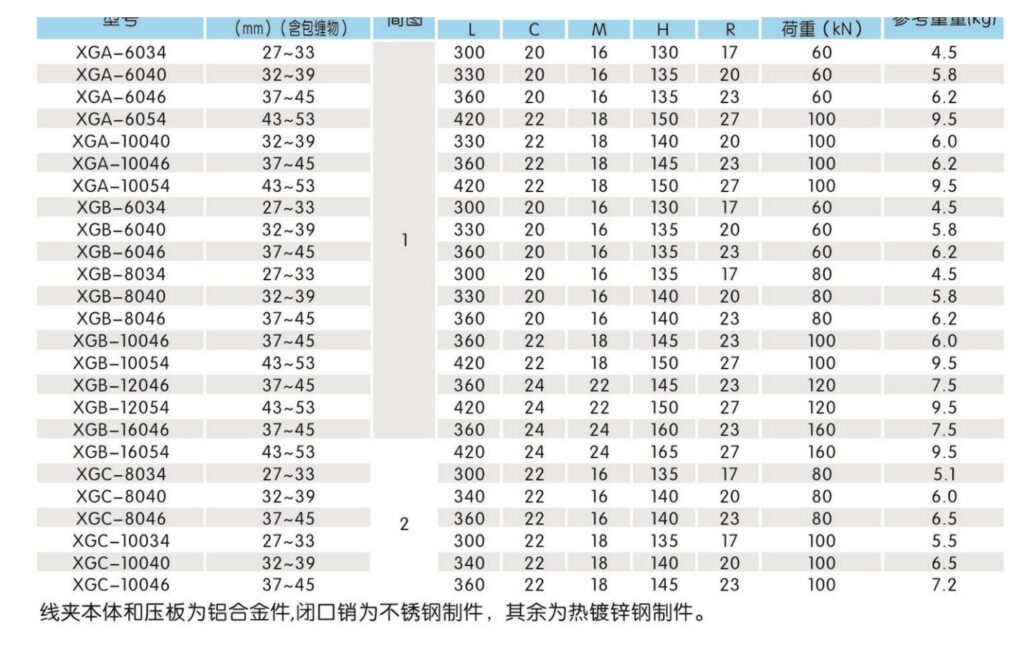

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | XGA, XGB & XGC Suspension Clamps |
|---|---|
| Category | Suspension Clamps |
| Representative range / models | XGA-6034 to XGA-10054; XGB-6034 to XGB-16054; XGC-8034 to XGC-10046 |
| Standards / reference basis | Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly |
| Typical applications | Overhead conductor suspension assemblies; Transmission and distribution line construction; Conductor support at tangent and angle structures |
| Conductor diameter | 27-53 mm depending on model |
| XGA rated failure load | 60 or 100 kN |
| XGB rated failure load | 60-160 kN |
| XGC rated failure load | 80 or 100 kN |
| Body length L | 300-420 mm |
| Material | Aluminium-alloy body and keeper with galvanized steel hardware |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

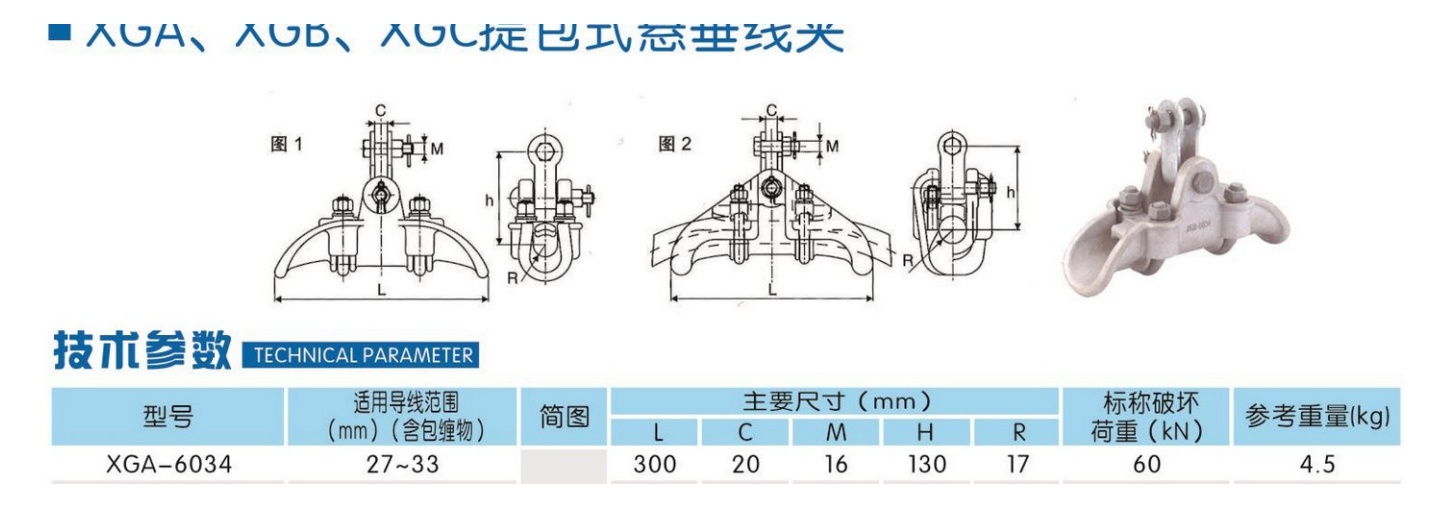

XGA, XGB and XGC bag-type configurations
60-160 kN rated failure load
27-53 mm conductor coverage
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL XGA, XGB and XGC suspension clamps provide bag-type conductor support for transmission lines. Model variants cover conductor diameters from 27 to 53 mm and rated failure loads from 60 to 160 kN. The listed range is XGA-6034 to XGA-10054; XGB-6034 to XGB-16054; XGC-8034 to XGC-10046.
The published KOVYEL range is XGA-6034 to XGA-10054; XGB-6034 to XGB-16054; XGC-8034 to XGC-10046. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
