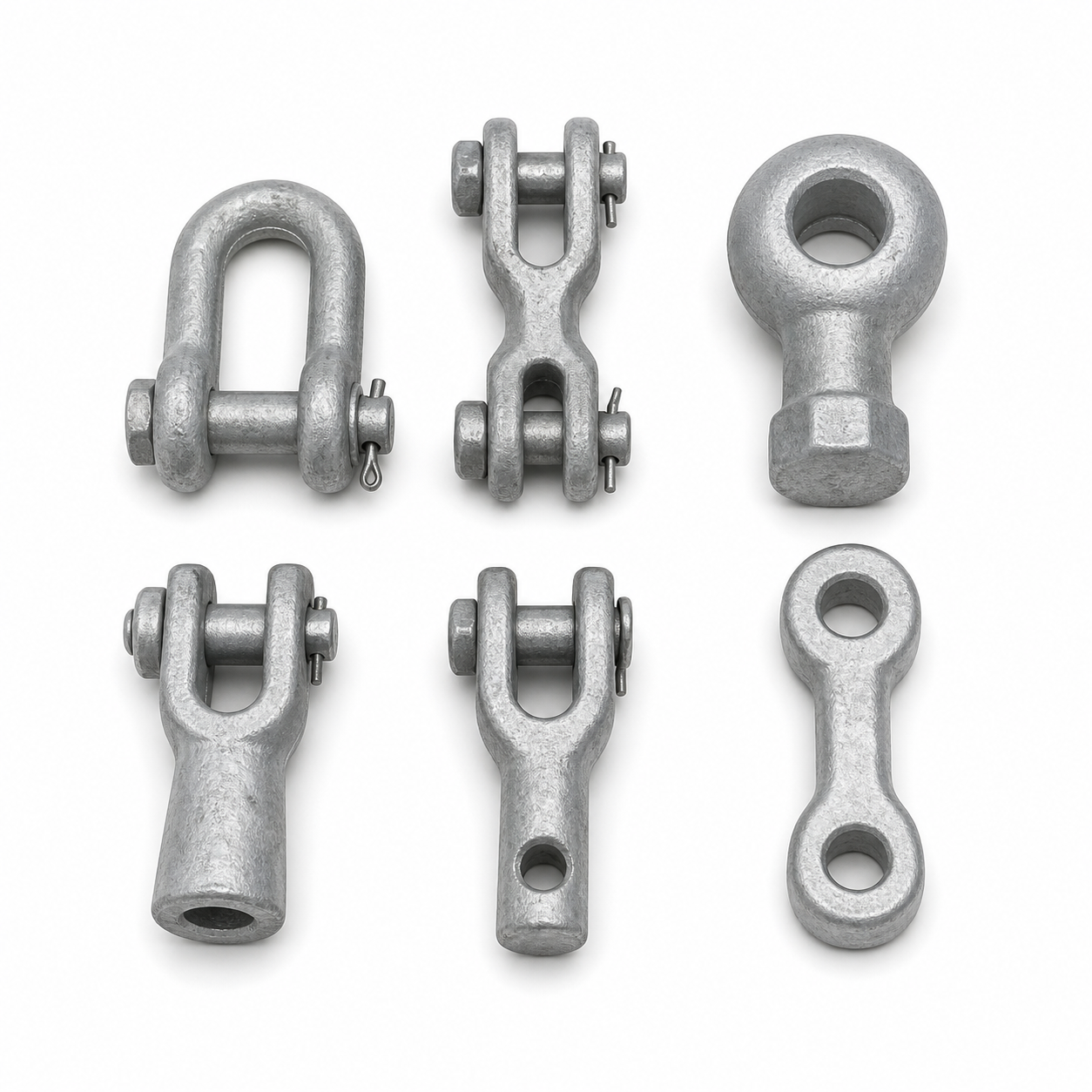

Socket Clevises, Ball Eyes & Extension Links
Link Fittings & Yoke Plates · Drawing-confirmed project supply
Socket clevises, ball eyes and extension links coordinate the ball-and-socket interfaces between insulators, clamps and string hardware for suspension and tension assemblies.
Socket Clevises, Ball Eyes & Extension Links: product overview
Socket clevises, ball eyes and extension links coordinate the ball-and-socket interfaces between insulators, clamps and string hardware for suspension and tension assemblies.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Published specifications and model selection
Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.
| Product | Socket Clevises, Ball Eyes & Extension Links |
|---|---|
| Category | Link Fittings & Yoke Plates |
| Representative range / models | Socket clevises; Ball eyes and ball hooks; Extension links; Tongue and clevis transition links |
| Standards / reference basis | IEC 60120 where specified; IEC 60372 where specified; Approved string drawing |
| Typical applications | Disc-insulator strings; Composite-insulator assemblies; Suspension clamp connections; Tension-clamp connections |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
