LINK FITTING · CATALOGUE-BACKED RANGE
Ball Eyes, Sockets & Line Links
Hot-dip galvanized link fittings for connecting insulators, clamps and hardware strings.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.

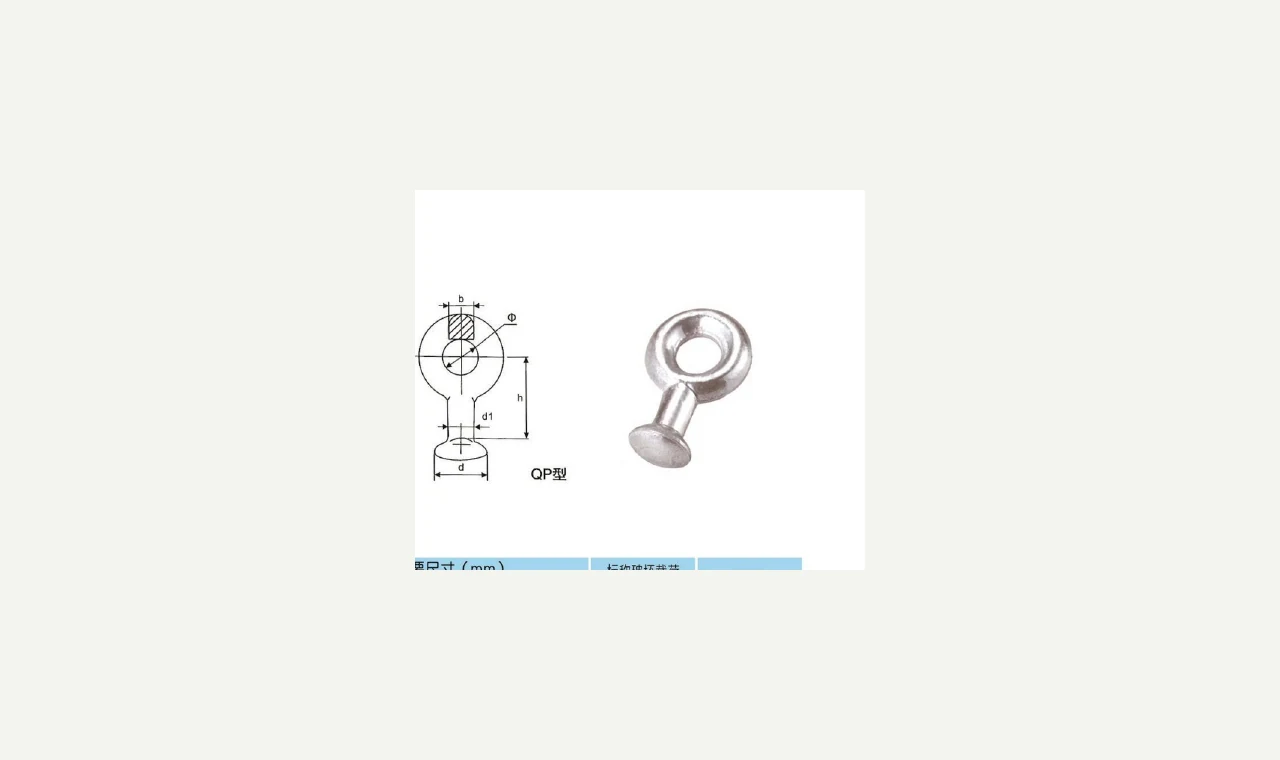

Q ball-eye seriesQP ball-eye seriesJBB parallel clevis seriesJK wire clips
APPLICATIONS
Built for real line interfaces.
- Insulator strings
- Suspension assemblies
- Tension assemblies
- Tower and pole hardware strings
KEY FEATURES
What the product family covers.
- Forged or cast steel construction by model
- Hot-dip galvanized finish
- Coupling dimensions matched to insulator and string hardware
- Mechanical class selected from the approved assembly
SELECTION DATA
Send these details for a matched quotation.
- 01Fitting designation
- 02Mechanical strength class
- 03Insulator coupling
- 04Pin and hole dimensions
- 05Assembly drawing
- 06Quantity and packing code
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
IEC 60120 coupling dimensions where applicableIEC 61284 where specifiedApproved assembly drawing
