INTEGRAL INSULATED GROUNDING CLAMP · CATALOGUE-BACKED RANGE

JDL Integral Insulated Grounding Clamps

ABC Accessories & Insulation Piercing Connectors · Drawing-confirmed project supply

KOVYEL JDL integral insulated grounding clamps provide protected grounding points on 10 kV overhead insulated conductors. Two body sizes cover nominal conductor sections from 16 to 240 mm².

Drawing-Matched Project RFQ Supply JDL conductor range and body dimensional data confirmed by KOVYEL
Product categoryABC Accessories & Insulation Piercing Connectors
Representative rangeJDL-16-120 and JDL-50-240
Technical basisJDL conductor range and body dimensional data confirmed by KOVYEL
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

JDL Integral Insulated Grounding Clamps: product overview

KOVYEL JDL integral insulated grounding clamps provide protected grounding points on 10 kV overhead insulated conductors. Two body sizes cover nominal conductor sections from 16 to 240 mm².

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductJDL Integral Insulated Grounding Clamps
CategoryABC Accessories & Insulation Piercing Connectors
Representative range / modelsJDL-16-120 and JDL-50-240
Standards / reference basisJDL conductor range and body dimensional data confirmed by KOVYEL
Typical applications10 kV insulated overhead grounding points; Maintenance earthing connections; Temporary test connections; Distribution line safety work

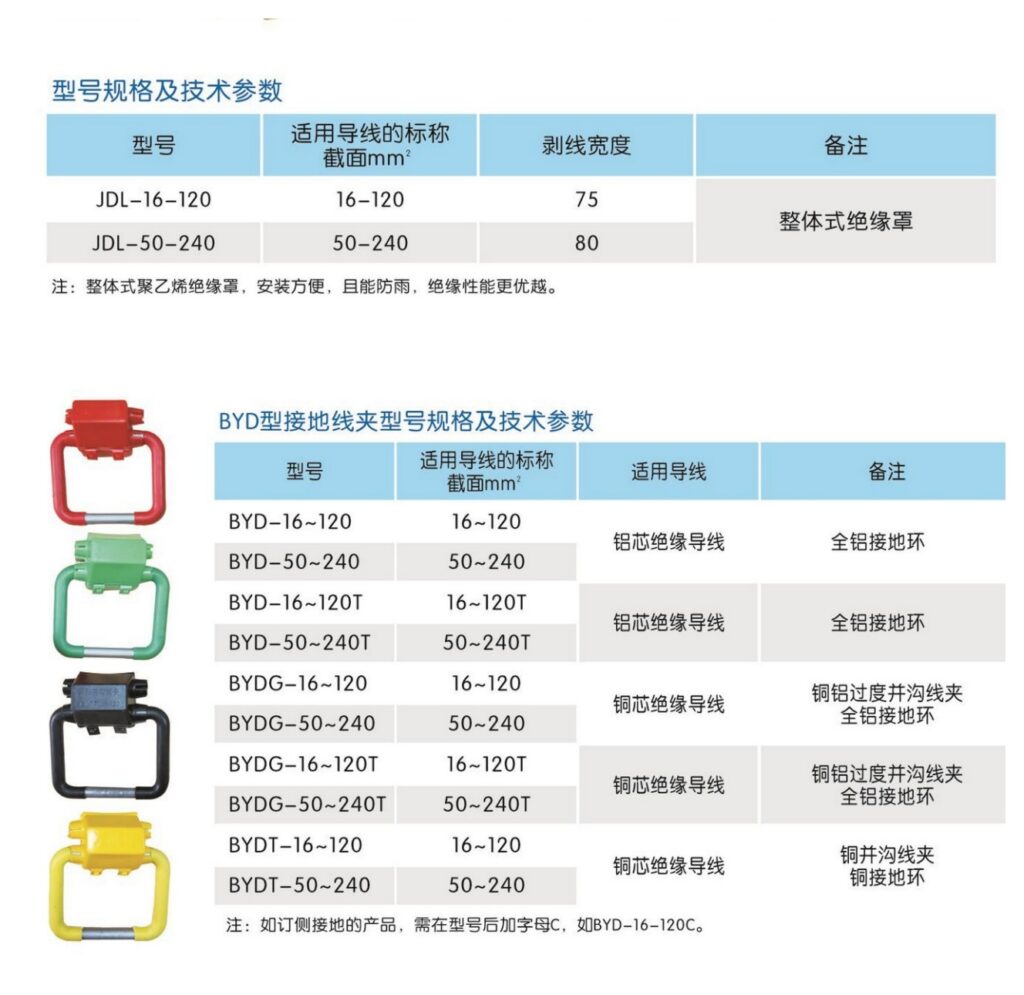

JDL-16-12016-120 mm² conductor range; 75 mm stripping width
JDL-50-24050-240 mm² conductor range; 80 mm stripping width
Voltage class10 kV overhead insulated conductor systems
BodyHigh-strength aluminium-alloy structure
ConnectionPressure plate and loop assembly
SelectionConfirm conductor section and required loop configuration
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

10 kV insulated overhead grounding points

Integral high-strength aluminium-alloy body

02

Maintenance earthing connections

Insulated protective loop

03

Temporary test connections

Wide conductor coverage

04

Distribution line safety work

Pressure-plate contact structure

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

Review the exact JDL Integral Insulated Grounding Clamps model against the insulated conductor and the approved project grounding or protection arrangement.

JDL Integral Insulated Grounding Clamps: grounding and protection interface approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for JDL Integral Insulated Grounding Clamps.

ItemInformation for technical approval
01Exact JDL model and actual conductor size and insulation construction.
02Project system requirements and approved grounding-point arrangement.
03Loop geometry, cover and grounding-equipment interface.
04Installation instructions, included parts and required model-specific acceptance records.

Define the BOQ supply scope

Identify the exact connector and its role on the approved grounding or protection drawing. List loops, covers, end protection and adjoining grounding parts explicitly. The project engineer must confirm the arrangement, while the approved electrical operating and maintenance procedures control installation and use.

Technical submittals and inspection requirements

Provide the conductor and insulation schedule, system requirements and approved grounding or protection drawing. Request model-specific dimensions, installation instructions and required electrical, mechanical and inspection records. Confirm all interfaces and acceptance criteria before order release.

Packing, identification and delivery

Label connectors by the selected model and main/branch conductor reference. Reconcile quantities by connection type rather than combining different conductor pairs in an unspecified lot.

Buyer questions

Does a matching conductor size establish a complete grounding or protection solution?

Also confirm insulation construction, system requirements, grounding interfaces and the approved protection or earthing drawing. The exact model and operating arrangement require project engineering approval.

How should JDL Integral Insulated Grounding Clamps be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

JDL Earthing Clamps — configuration and purchasing data

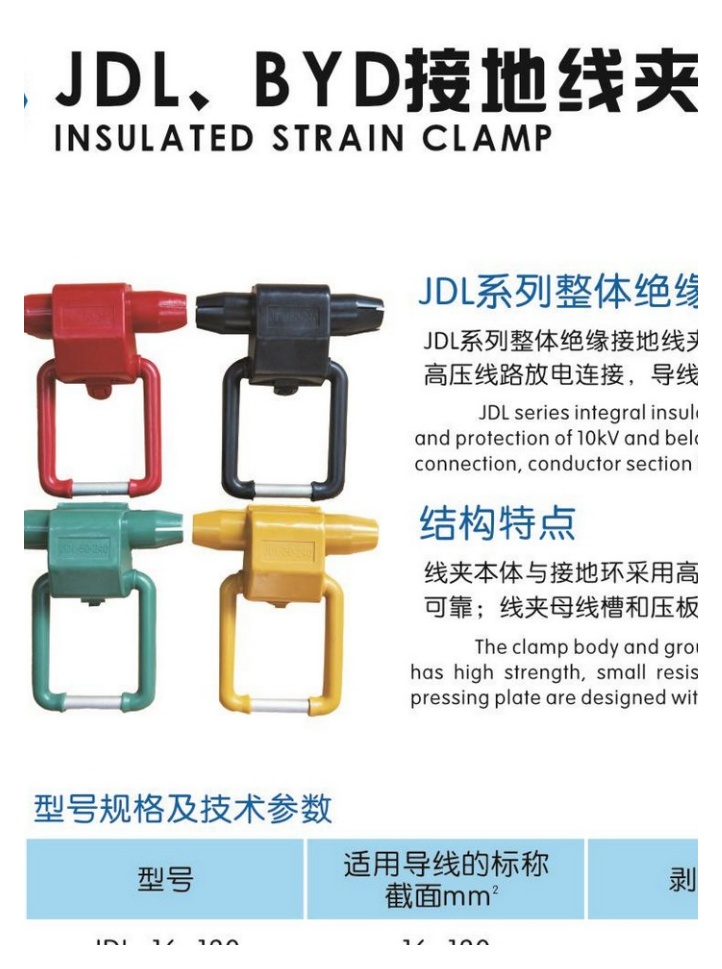

Insulated earthing-clamp body with a loop-type grounding interface.
