KOVYEL JBCD insulation piercing grounding connectors provide grounding access and temporary power-test points for 1 kV and 10 kV insulated overhead conductors. Integral insulated loops support safe, repeatable operation.
KOVYEL JBCD insulation piercing grounding connectors provide grounding access and temporary power-test points for 1 kV and 10 kV insulated overhead conductors. Integral insulated loops support safe, repeatable operation.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.

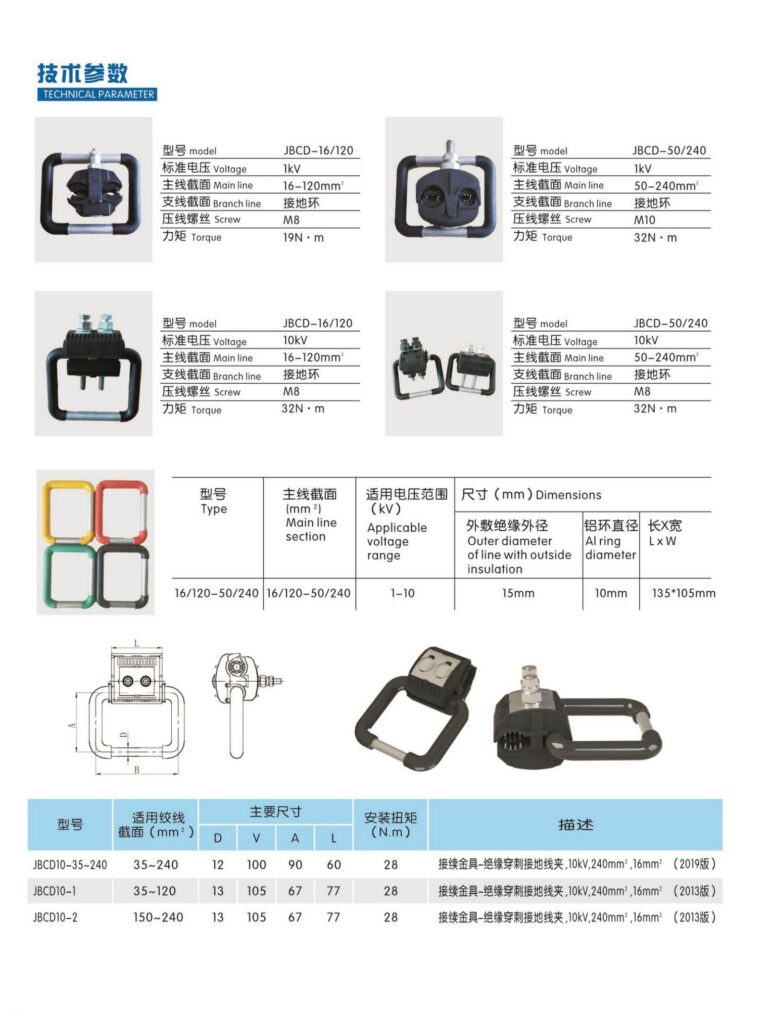

| Product | JBCD Series Insulation Piercing Grounding Connectors |
|---|---|
| Category | ABC Accessories & Insulation Piercing Connectors |
| Representative range / models | JBCD-16/120, JBCD-50/240, JBCD10-35-240, JBCD10-1 and JBCD10-2 |
| Standards / reference basis | JBCD model, voltage, conductor and dimensional data confirmed by KOVYEL |
| Typical applications | Temporary grounding of insulated overhead lines; Temporary power testing; Maintenance grounding points; Distribution line safety access |
| JBCD-16/120 | 1 kV; main line 16-120 mm²; grounding loop branch |
| JBCD-50/240 | 1 kV; main line 50-240 mm²; grounding loop branch |
| JBCD10-35-240 | 10 kV; 35-240 mm²; 28 N·m installation torque |
| JBCD10-1 | 10 kV; 35-120 mm²; 28 N·m installation torque |
| JBCD10-2 | 10 kV; 150-240 mm²; 28 N·m installation torque |
| Loop options | Colour-coded insulated grounding loops for line identification |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Integral insulated grounding loop
Piercing contact without conductor stripping
Torque-controlled installation

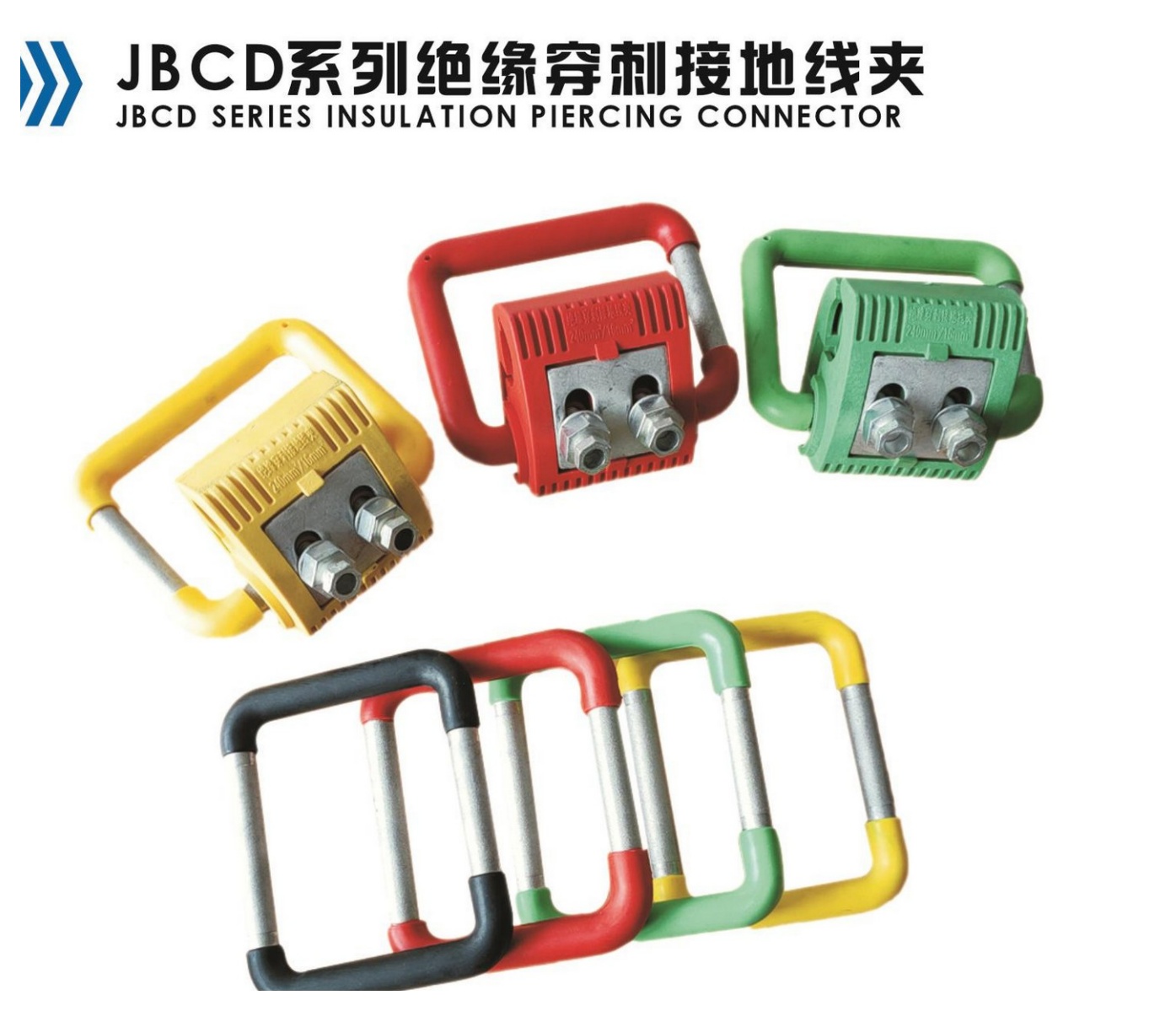

Colour-coded loop options
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL JBCD insulation piercing grounding connectors provide grounding access and temporary power-test points for 1 kV and 10 kV insulated overhead conductors. Integral insulated loops support safe, repeatable operation. The listed range is JBCD-16/120, JBCD-50/240, JBCD10-35-240, JBCD10-1 and JBCD10-2.
The published KOVYEL range is JBCD-16/120, JBCD-50/240, JBCD10-35-240, JBCD10-1 and JBCD10-2. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
TECHNICAL PROCUREMENT PATH
Provide conductor material and cross-section, insulation dimensions and the required grounding or test interface. Attach the installation specification so compatibility can be reviewed.
These are selection inputs. Final suitability and documentation must be confirmed for the exact item requested.
