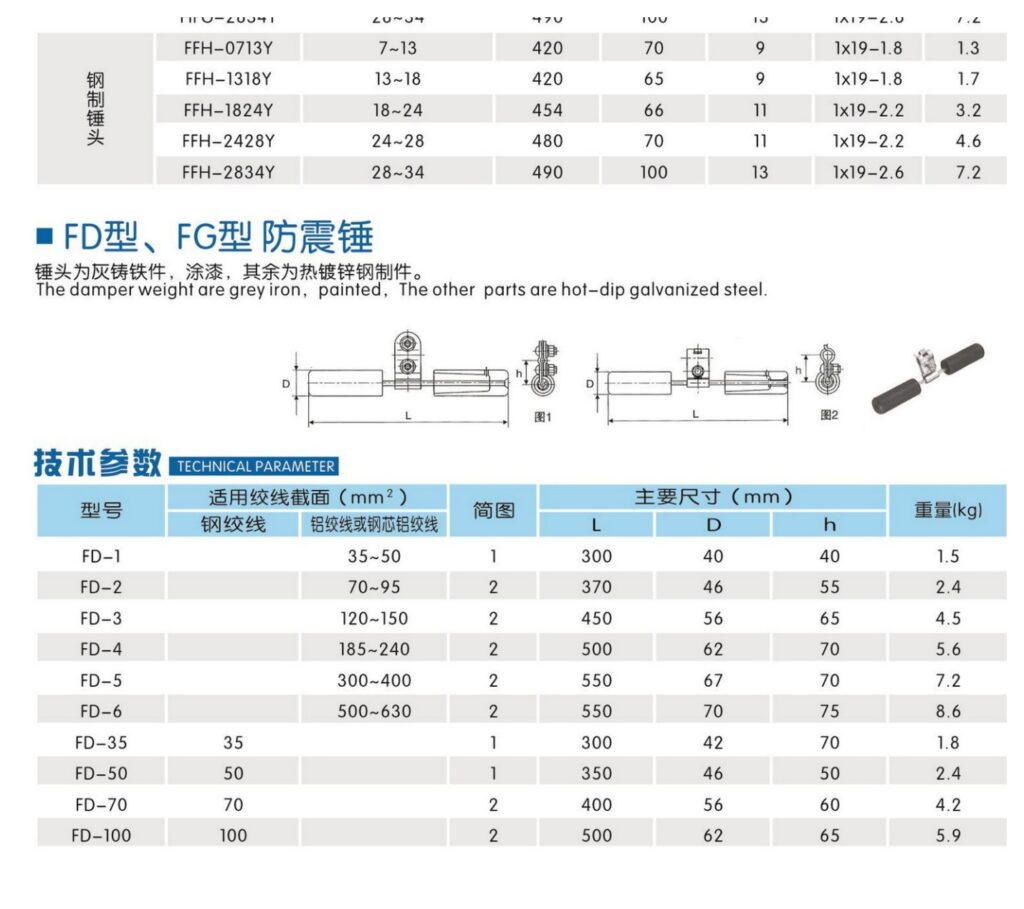

FD & FG Stockbridge Vibration Dampers
FD and FG Stockbridge dampers reduce wind-induced aeolian vibration in conductors and earth wires through tuned messenger-strand and counterweight assemblies.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
FD conductor damper seriesFG earth-wire damper seriesSymmetrical and asymmetric weight optionsClamp ranges matched to conductor diameter
APPLICATIONS
Built for real line interfaces.
- AAC, AAAC and ACSR conductors
- Galvanized earth wires
- OPGW protection zones
- Long-span and exposed line sections
KEY FEATURES
What the product family covers.
- Tuned multi-resonance response
- Galvanized messenger strand
- Bolted conductor clamp
- Conductor-specific damper selection
SELECTION DATA
Send these details for a matched quotation.
- 01Conductor or earth-wire type
- 02Diameter and unit mass
- 03Span length
- 04Terrain and wind exposure
- 05Damper quantity and placement
- 06Armour rod or OPGW protection requirement
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
IEC 61897 where specifiedApproved vibration studyCatalogue model data
