An 11kV overhead line material list normally combines conductors, insulators, line fittings, galvanized pole-line hardware, guying and earthing items, protection equipment, plus packing and documentation requirements. There is no universal 11kV bill of materials: item selection and quantities must be matched to the route, structure schedule, conductor, insulation level, drawings, environment and governing project specification before quotation.
What an 11kV overhead line material list should cover.
A practical material-list and RFQ checklist for distributors and project procurement teams sourcing a coordinated 11kV overhead line equipment package.
Structures and crossarms
Poles, crossarms, braces, equipment supports and structure-specific steelwork must follow the pole schedule, loading requirements, hole pattern and confirmed drawings.
Conductors and accessories
State the conductor designation, material, size, stranding, diameter, rated tensile strength, route quantity, drum length and any jumper or earth-wire requirement.
Insulators
Confirm pin, line-post, suspension or tension duty together with electrical ratings, mechanical load, creepage distance, coupling and environmental conditions.
Overhead line fittings
Suspension, tension, connection and protection assemblies must be compatible with the conductor and insulator interfaces. Review the overhead line fittings range.
Pole-line hardware
Bolts, nuts, washers, straps, brackets, hooks and other galvanized hardware should be checked against the pole holes and assembly drawings. See pole-line hardware and fasteners.
Guying and earthing
Stay wire, guy grips, anchors, rods, connectors and earthing components depend on the structure duty, soil conditions and earthing design.
Protection and interfaces
Surge arresters, fuse cutouts, switches and optional transformer interfaces require complete electrical ratings, terminal details and mounting arrangements.
Documents and packing
Include required drawings, data sheets, inspection records, marking, package coding, spare quantities, packing lists and shipment documents in the requested scope.
Information to send before an 11kV quotation.
A complete RFQ helps the supplier identify compatible products, separate confirmed data from open points and return a quotation that the procurement team can compare line by line.
System basis
Nominal voltage, highest equipment voltage, frequency, neutral arrangement, insulation level and governing specification.
Route and environment
Route length, altitude, pollution level, coastal or industrial exposure, ambient temperature, wind and other special conditions.
Structure schedule
Quantity of tangent, angle, terminal, branch, transformer and special structures, with pole or crossarm drawings where available.
Conductor data
Material, designation, cross-section, construction, diameter, tensile rating, required length, drum length and allowable interfaces.
Insulation data
Insulator type, rated voltage, mechanical load, creepage requirement, coupling and any approved assembly drawing.
Equipment ratings
Rated voltage, current, interrupting duty, insulation level, terminals, controls and mounting details for protection or switching equipment.
Quantities and spares
BOQ quantities, unit of measure, structure-by-structure breakdown, spare percentage and distinction between complete sets and individual pieces.
Delivery requirements
Destination, Incoterm, requested delivery date, inspection plan, document list, package coding and any container-loading constraints.
Six points buyers should resolve before order confirmation.
An incomplete BOQ can still be reviewed, but open technical interfaces should be clearly recorded rather than filled by assumption.
What KOVYEL can coordinate for an 11kV order.
KOVYEL supports project equipment and material supply, BOQ normalization, product-interface review, available inspection documentation, export packing and shipment coordination. Multi-category requirements may be coordinated as one equipment package supply scope after technical and commercial confirmation.
Civil works, installation, site testing, commissioning and grid connection are not included. Final design decisions and technical acceptance remain with the purchaser and its appointed engineer.
Complete 11kV Overhead Line Equipment Package for Zambia
These photographs document the preparation, packing and container loading of a complete 11kV overhead line equipment package for a project in Zambia. Customer names and commercial documents are not disclosed.

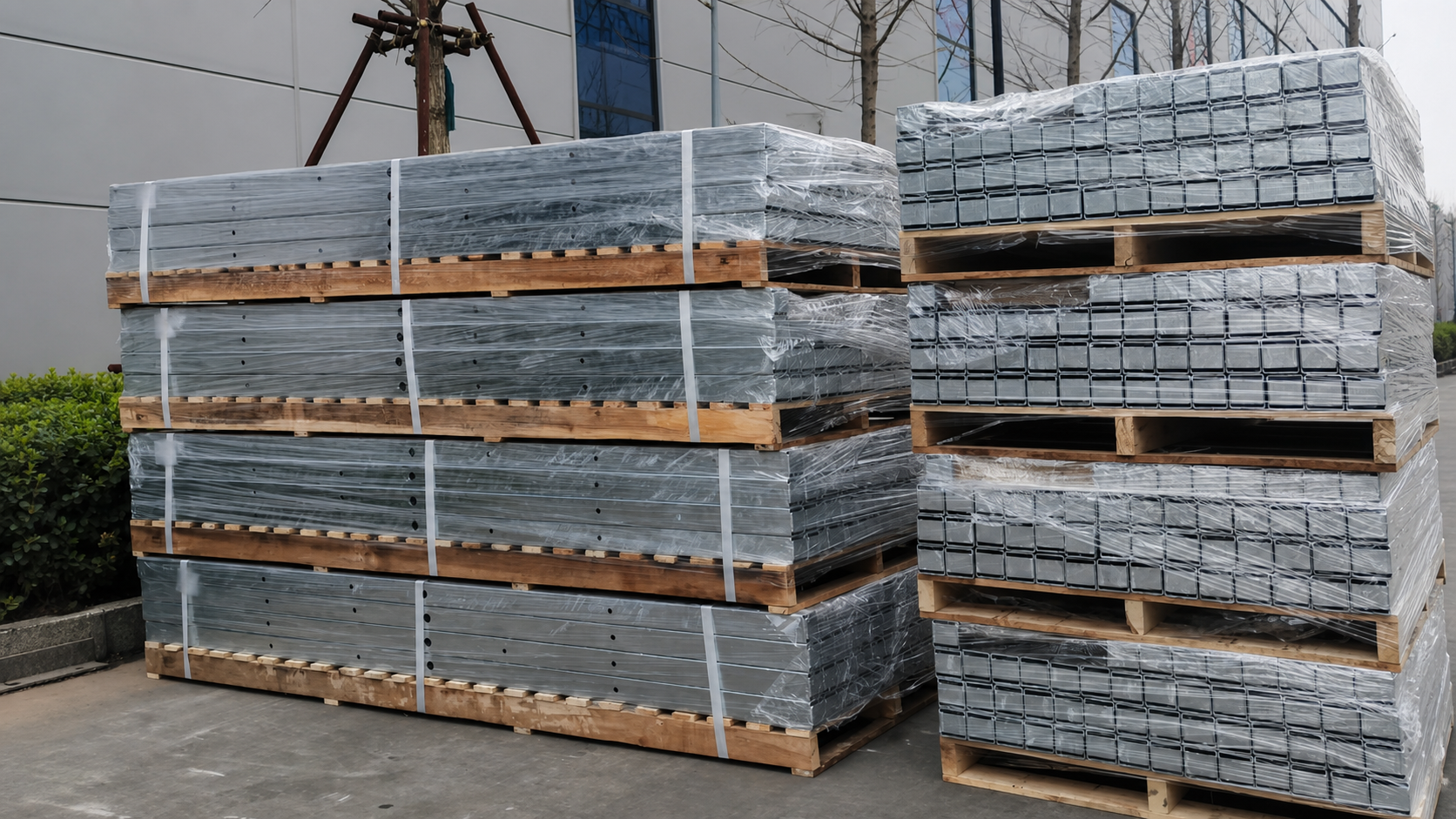

Prepared galvanized components
Galvanized pole-line steel components prepared for a complete 11kV overhead line equipment package for Zambia. Final configuration follows the confirmed project BOQ and drawings.

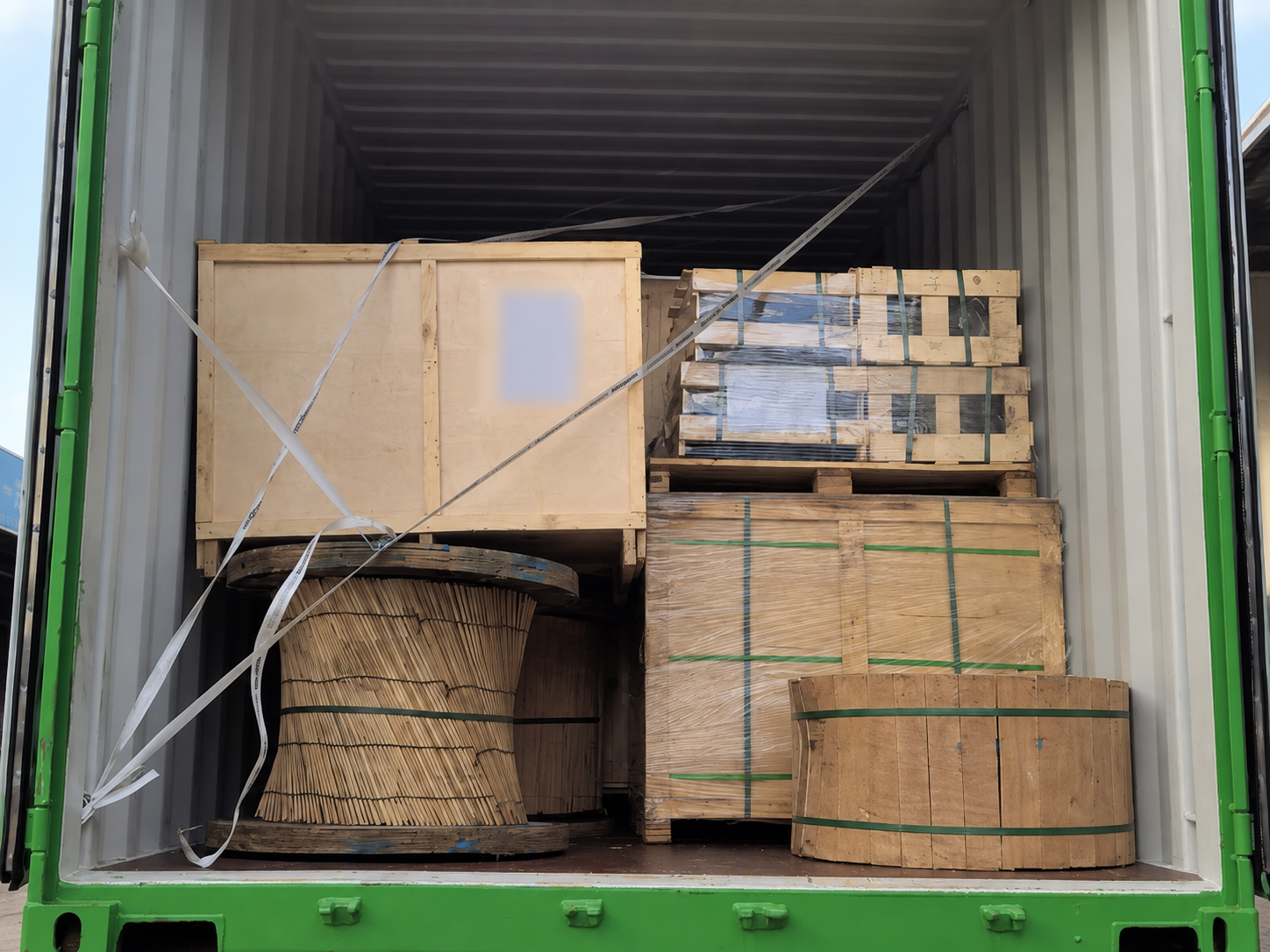

Export packing and container loading
Export-packed materials during container loading for the Zambia project. Customer identifiers and commercial documents have been removed or obscured.
Confirm compliance item by item.
IEC and ISO references may apply to individual products, but the governing project specification, required standard edition, ratings, test documents and acceptance criteria must be confirmed for every line item. A standard reference alone does not define a complete 11kV material list.
Technical Selection Data
| Nominal voltage | 11kV; confirm highest equipment voltage, insulation level and frequency |
|---|---|
| Structure basis | Tangent, angle, terminal, branch, transformer and special structures from the confirmed schedule and drawings |
| Conductor interface | Confirm designation, material, size, stranding, diameter and rated tensile strength |
| Insulator interface | Confirm duty, electrical ratings, mechanical load, creepage distance and coupling |
| Environment | Confirm altitude, pollution, coastal or industrial exposure, ambient temperature and wind |
| Galvanized hardware | Hot-dip galvanized steel where specified; dimensions and hole patterns follow approved drawings |
| Supply boundary | Equipment and materials only; civil works, installation, testing and commissioning are excluded |
- Applicable voltage
- 11kV nominal; confirm highest equipment voltage, insulation level and frequency in the project specification.
- Material
- Hot-dip galvanized steel for applicable pole-line hardware; conductor, insulator, earthing and equipment materials as defined by the confirmed BOQ and drawings.
- Standards
- Governing project specification plus applicable IEC and ISO requirements. Confirm the required standard, edition, ratings, test documents and acceptance criteria for each line item.
- Applications
- 11kV overhead distribution line material procurement; distributor stock planning; coordinated project equipment supply; BOQ and product-interface review.
BOQ Information to Confirm
Nominal and highest equipment voltage | frequency | insulation level | route length | environment | structure schedule | pole/crossarm drawings | conductor designation, diameter and tensile data | insulator type and mechanical load | protection-equipment ratings | line-item quantities and spares | destination | Incoterm | required date | inspection, document, marking and packing requirements.
Compatible Products & Accessories
Frequently Asked Questions
Is there one standard 11kV overhead line material list?
No. Voltage alone does not determine the complete list. Structure schedule, conductor, insulation level, route conditions, drawings, protection scheme and governing project specification all affect item selection and quantities.
Can KOVYEL review an incomplete 11kV BOQ?
Yes. KOVYEL can normalize item descriptions, identify missing fields, check product interfaces and issue a clarification list. Final selection and manufacture remain subject to confirmed project data.
What is the minimum information needed for a quotation?
Send the available BOQ, nominal and highest equipment voltage, conductor data, structure schedule or drawings, quantities, applicable specification, destination, delivery term and required date.
Can different 11kV material categories be consolidated into one shipment?
Yes. After technical and commercial confirmation, compatible materials can be coordinated under one BOM coding, package list and export delivery plan.
Does KOVYEL install or commission the 11kV line?
No. KOVYEL supplies equipment and materials only. Civil works, installation, site testing, commissioning and grid connection are excluded.
