A quotation-ready 33kV overhead line material list should be built from the approved structure schedule, not route length alone. Expand each structure code into one complete assembly, then add route-wide conductors, point equipment, spares, documents and packing codes separately. Confirm the highest equipment voltage, conductor and insulator interfaces, drawings and environment before final selection.
How to build a quotation-ready 33kV material list from the structure schedule.
Do not begin with one long catalogue list. Separate items by the quantity source that controls them. This makes changes easier to trace and exposes missing data before suppliers price the BOQ.
Structure-specific assemblies
Crossarms, braces, insulator sets, suspension or tension fittings, fasteners, guys and structure earthing are calculated from each structure code and drawing.
Route-wide materials
Phase conductors, earth wire or fiber cable, repair materials and drum quantities are controlled by route, circuit, sagging and stringing data—not by structure count alone.
Point equipment and interfaces
Transformer points, surge arresters, fuse cutouts, switches, reclosers, cable terminations and special earthing are assigned to named locations or structure codes.
Spares, documents and packing
Keep spares as separate BOQ lines and connect required drawings, inspection records and package marks to the related items or assemblies.
Turn every structure type into a complete assembly.
A kilometre value cannot identify the mix of tangent, angle, dead-end, terminal, branch, transformer or cable-transition structures. Create one controlled assembly for each approved code, then multiply by the schedule quantity.
Tangent / suspension
Confirm crossarm geometry, suspension insulator duty, clamp interface, ties or links, fasteners and any structure-specific earthing.
Angle and dead-end
Separate light-angle, heavy-angle and dead-end duties where drawings require different tension assemblies, guys, anchors or stronger pole-top hardware.
Terminal and branch
Include jumper connections, terminal hardware, branch connectors, protection and any changes in conductor or insulator arrangement.
Transformer and cable transition
Add equipment supports, arresters, fuse cutouts, cable terminations, connectors, earthing and mounting hardware from the approved interface drawing.
Communication interface
If OPGW, ADSS or another communication system is included, match every cable accessory to its structure and cable interface.
Special structures
Road crossings, long spans and other special locations require their own confirmed design inputs. Do not copy the nearest standard structure by assumption.
A crossarm quantity is not enough—carry the drawing details into the BOQ.

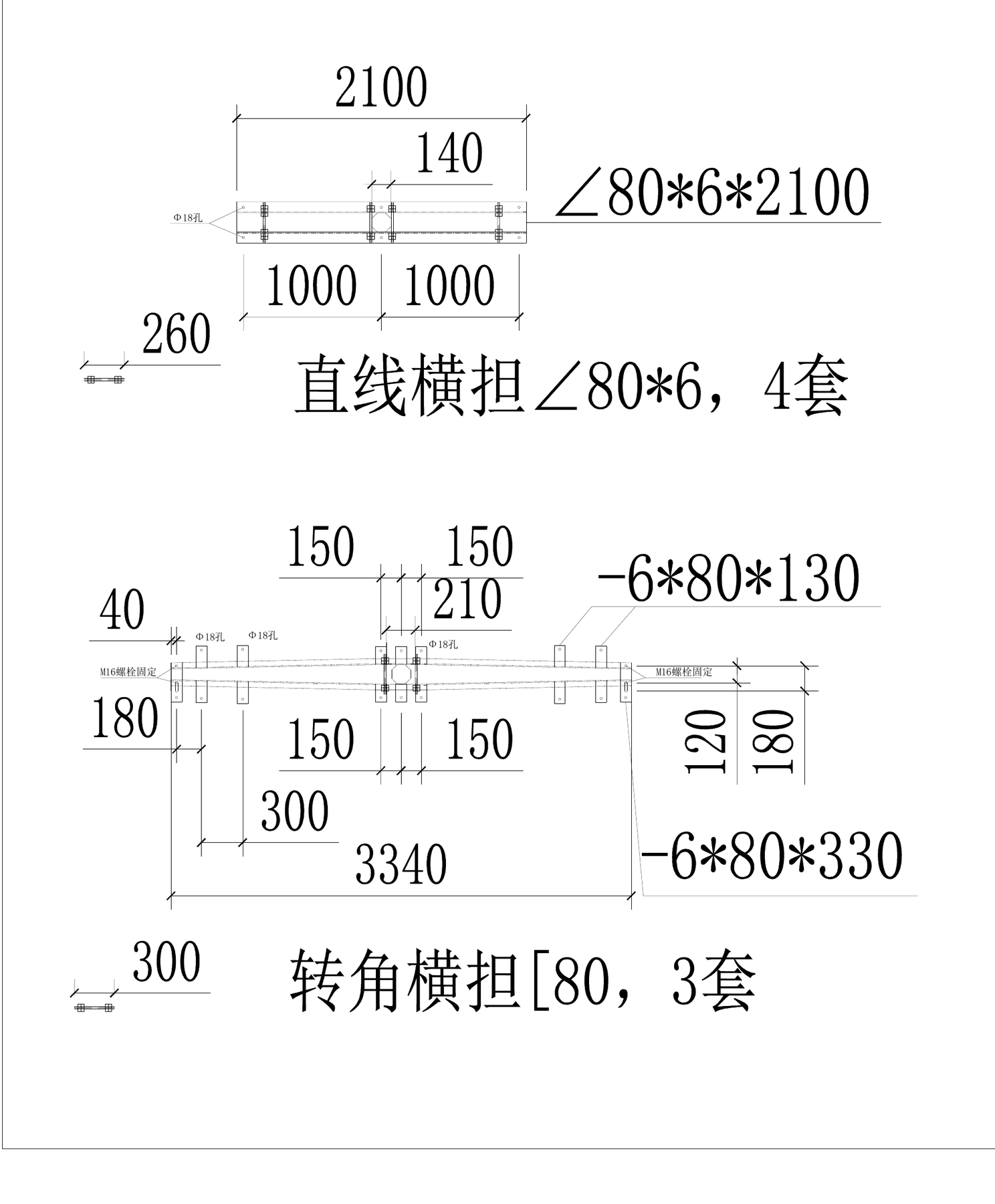

This supplied one-page drawing is useful for geometry and hardware review, but it does not state a voltage class or governing standard. Keep those project requirements separate from what the drawing itself can prove.
What the drawing lets a buyer check
- Separate straight-line and angle-structure arrangements
- Member/profile designation and overall dimensions
- Hole diameter, spacing and attachment positions
- Plate or bracket details and M16 fixing callouts
- Required set quantities for each arrangement
Still to confirm: approved revision, structure code, design loads, galvanizing requirement, voltage and insulation basis, governing specification and purchaser acceptance.
Use BOQ columns that show what every supplier is offering.
A description and quantity are not enough. These fields help purchasing and engineering teams compare models, standards, drawings, evidence and deviations before commercial evaluation.
| Identification | Item reference, structure code, description, unit and required quantity. |
|---|---|
| Offered product | Manufacturer or supply responsibility, offered model, material and surface finish. |
| Technical basis | Standard and edition, drawing number and revision, electrical rating, mechanical rating and confirmed interfaces. |
| Evidence required | Data sheet, drawing, material certificate, inspection record, test document or other agreed submittal for that line item. |
| Clarification control | Confirmed requirement, supplier deviation, purchaser clarification and approval status kept in separate columns. |
| Delivery control | Spare quantity, package mark, BOQ or structure code, requested delivery lot and any special packing instruction. |
Project buyers and distributors use the list differently.
Both need technical compatibility, but their quantity, documentation and commercial questions are different. The inquiry should make the purchasing model clear.
For project procurement teams
- Structure-by-structure BOQ and drawing references
- Technical compliance or clarification record for each item
- Interfaces between conductor, insulator, hardware and equipment
- Inspection documents, package coding and handover files
- Destination, Incoterm and required delivery milestones
For distributors and importers
- Product families and interface variants intended for stock
- Repeat-order quantities, MOQ and production lead-time inputs
- Mixed-order feasibility subject to confirmed product scope
- Warehouse, retail or OEM labelling and packaging
- Destination, shipment plan and import documents
Six 33kV errors that produce incomplete quotations.
Open technical and commercial inputs should remain visible until the purchaser and its engineer confirm them.
Physical products, storage and export protection.

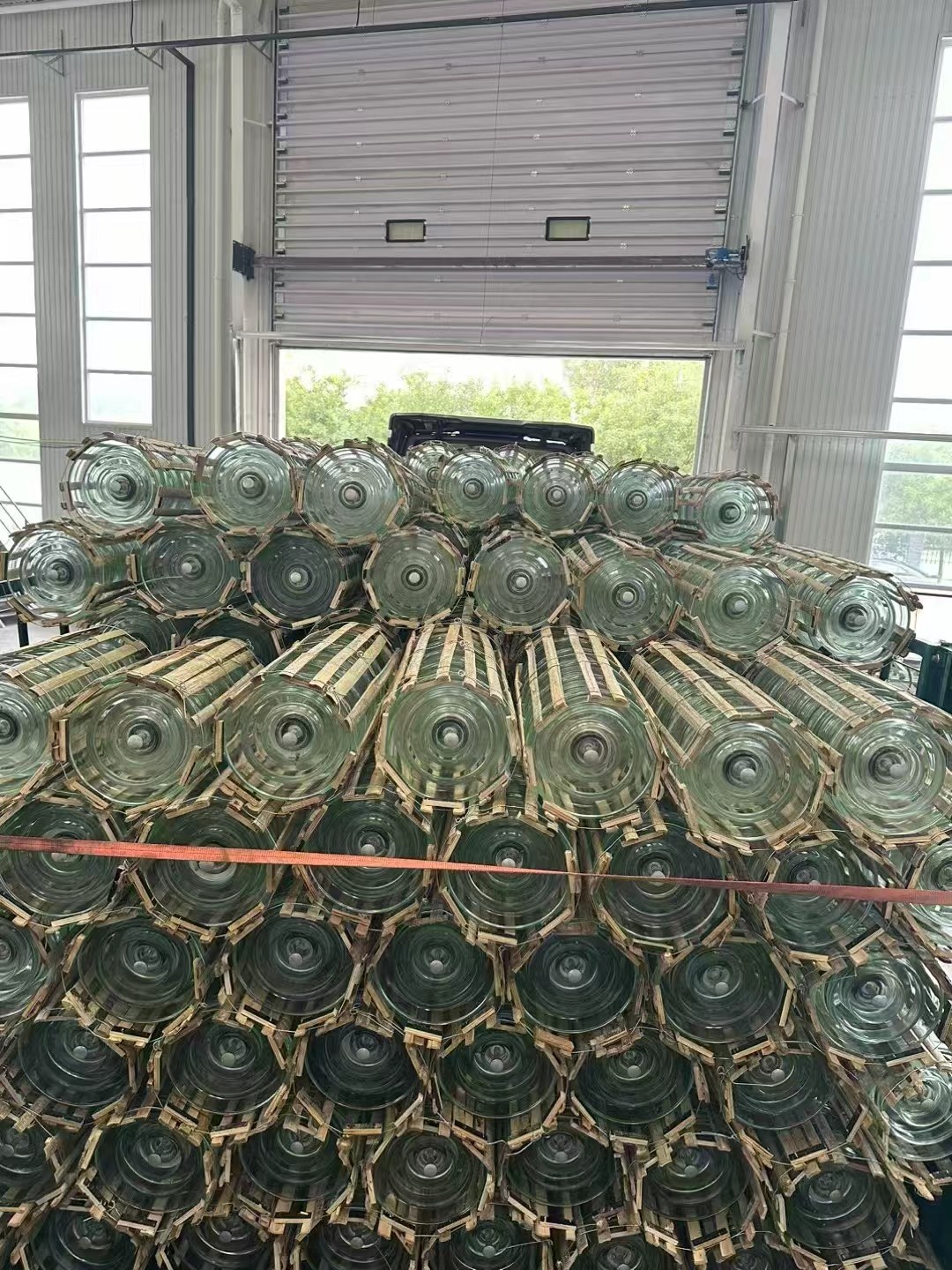

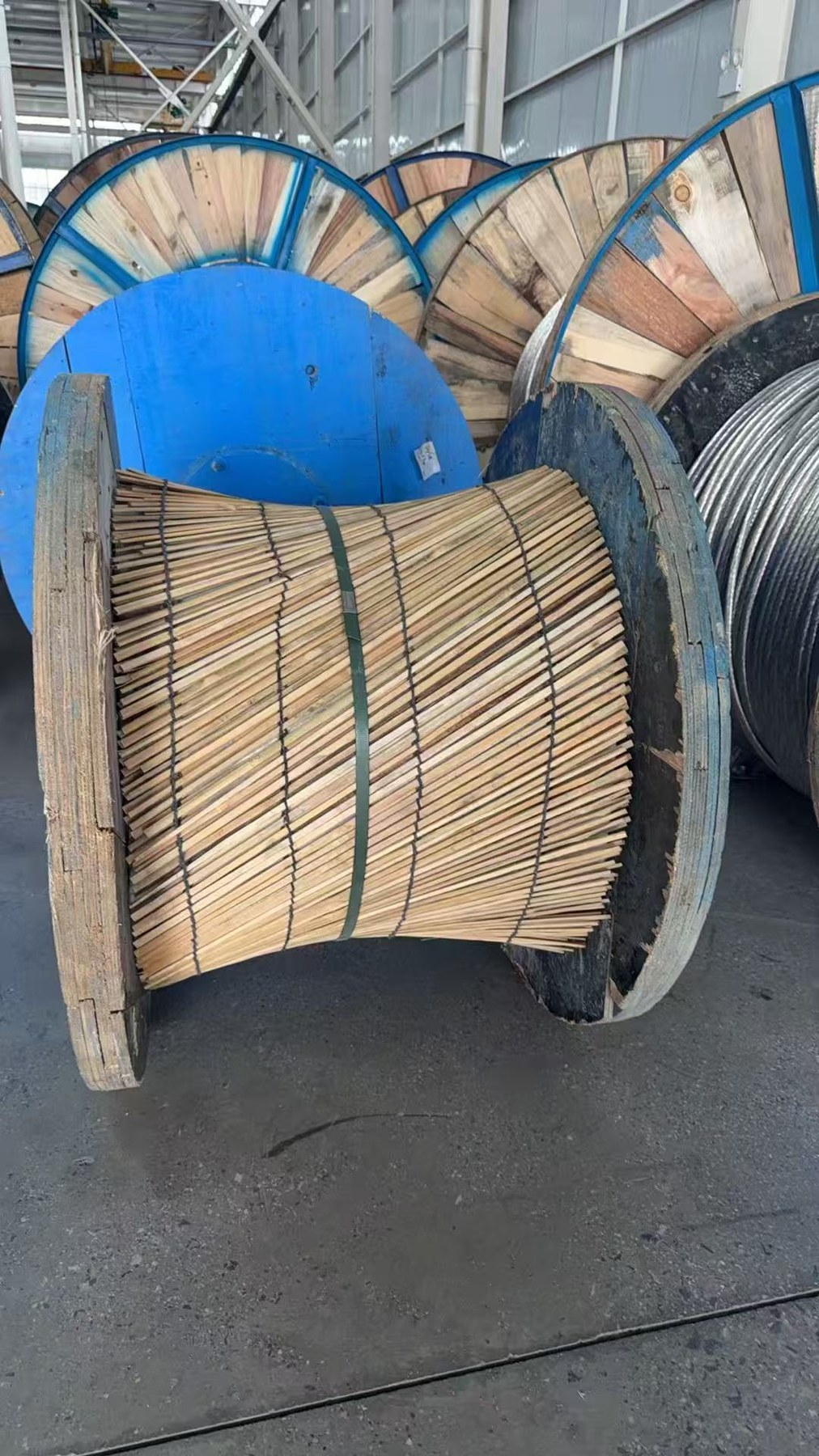

The real pole, insulator and drum images below support specific BOQ checks. They are physical-product, storage and handling evidence; they do not by themselves prove a voltage class, a named project or every product category in the material list.
Evidence boundary: KOVYEL’s core manufacturing base focuses on pole-line hardware and suitable drawing-based metal components. Other product categories may be coordinated through qualified supply partners, with responsibilities and documents kept item-specific. Review the factory and quality evidence.
What KOVYEL can coordinate.
KOVYEL supports BOQ normalization and product matching, equipment and material supply, item-specific document coordination, export packing and shipment coordination after technical and commercial confirmation.
Civil works, line design, installation, site testing, commissioning and grid connection are not included. Final design decisions and technical acceptance remain with the purchaser and its appointed engineer.
Send your 33kV BOQ, structure schedule, drawings and project specification for equipment matching and quotation.
Continue your BOQ and drawing review
Use the guide for the actual project voltage and scope. Confirm drawings and interfaces before selecting materials.
Technical Selection Data
| Nominal system voltage | 33kV; confirm highest equipment voltage, insulation level, frequency and grounding basis |
|---|---|
| BOQ quantity basis | Approved structure code × confirmed structure quantity, plus route-wide materials and point equipment |
| Structure interfaces | Confirm structure type, loading, crossarm geometry, hole pattern and drawing revision |
| Conductor interface | Confirm material, designation, size, construction, diameter, tensile data and required fitting functions |
| Insulator interface | Confirm duty, electrical ratings, mechanical load, creepage requirement, coupling and mounting |
| Protection and cable interfaces | Confirm device ratings, terminals, controls, mounting, transformer points and cable transitions |
| Clarification control | Record offered model, standard and edition, drawing revision, documents and deviations by line item |
| Delivery control | Separate spares and define destination, Incoterm, delivery lots, package marks and required records |
- Applicable voltage
- 33kV nominal; confirm the project highest equipment voltage, insulation level, frequency and grounding arrangement.
- Material
- Hot-dip galvanized steel for applicable pole-line hardware; conductor, insulator, earthing and equipment materials as defined by the confirmed BOQ and drawings.
- Standards
- Governing project or utility specification plus applicable international or national standards. Confirm the exact standard, edition, ratings, tests and acceptance criteria item by item.
- Applications
- 33kV overhead distribution line BOQ preparation; structure-by-structure equipment packages; distributor stock planning; supplier quotation comparison.
BOQ Information to Confirm
System and highest equipment voltage | frequency and grounding basis | structure codes and quantities | pole or tower and crossarm drawings | conductor designation, construction, diameter and tensile data | insulator duty, mechanical load and coupling | protection, transformer, cable and communication interfaces | quantities and separately stated spares | standards and drawing revisions | required documents and inspection plan | destination | Incoterm | delivery lots | package coding
