ZN63A-12 (VS1) Indoor Vacuum Circuit Breaker
Vacuum Circuit Breakers · Drawing-confirmed project supply
KOVYEL ZN63A-12 (VS1) indoor vacuum circuit breakers provide high-duty switching for 12 kV withdrawable and fixed switchgear.
Selection begins with the actual project interface.
KOVYEL ZN63A-12 (VS1) indoor vacuum circuit breakers provide high-duty switching for 12 kV withdrawable and fixed switchgear.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.

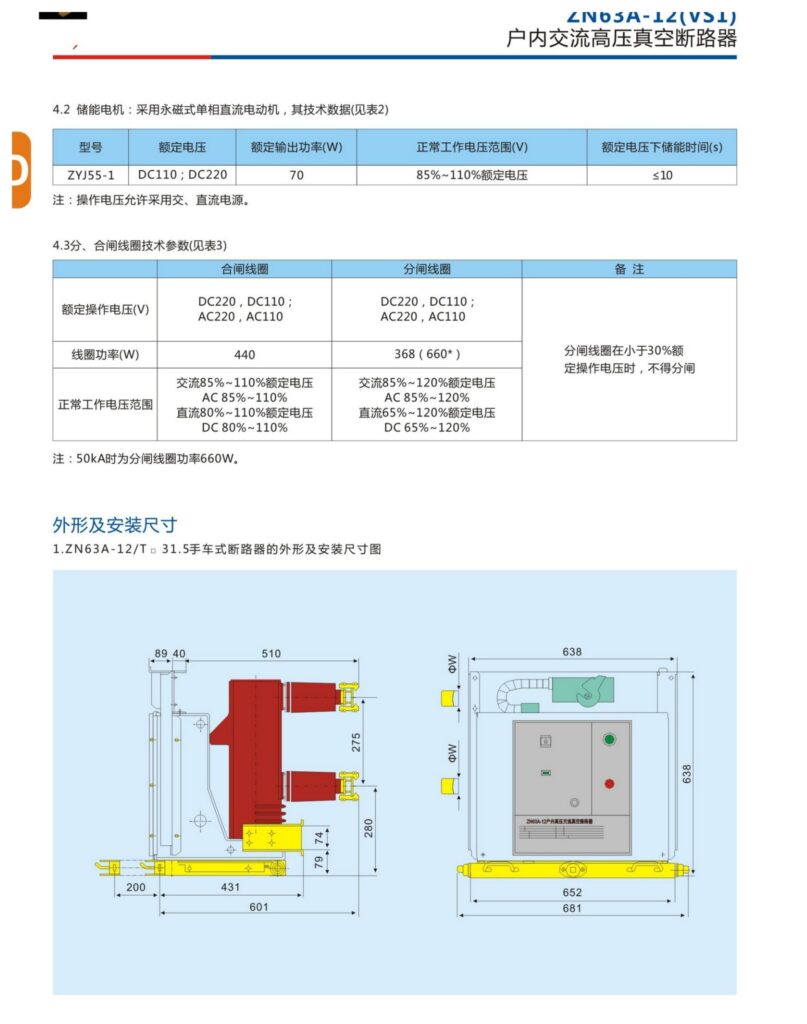

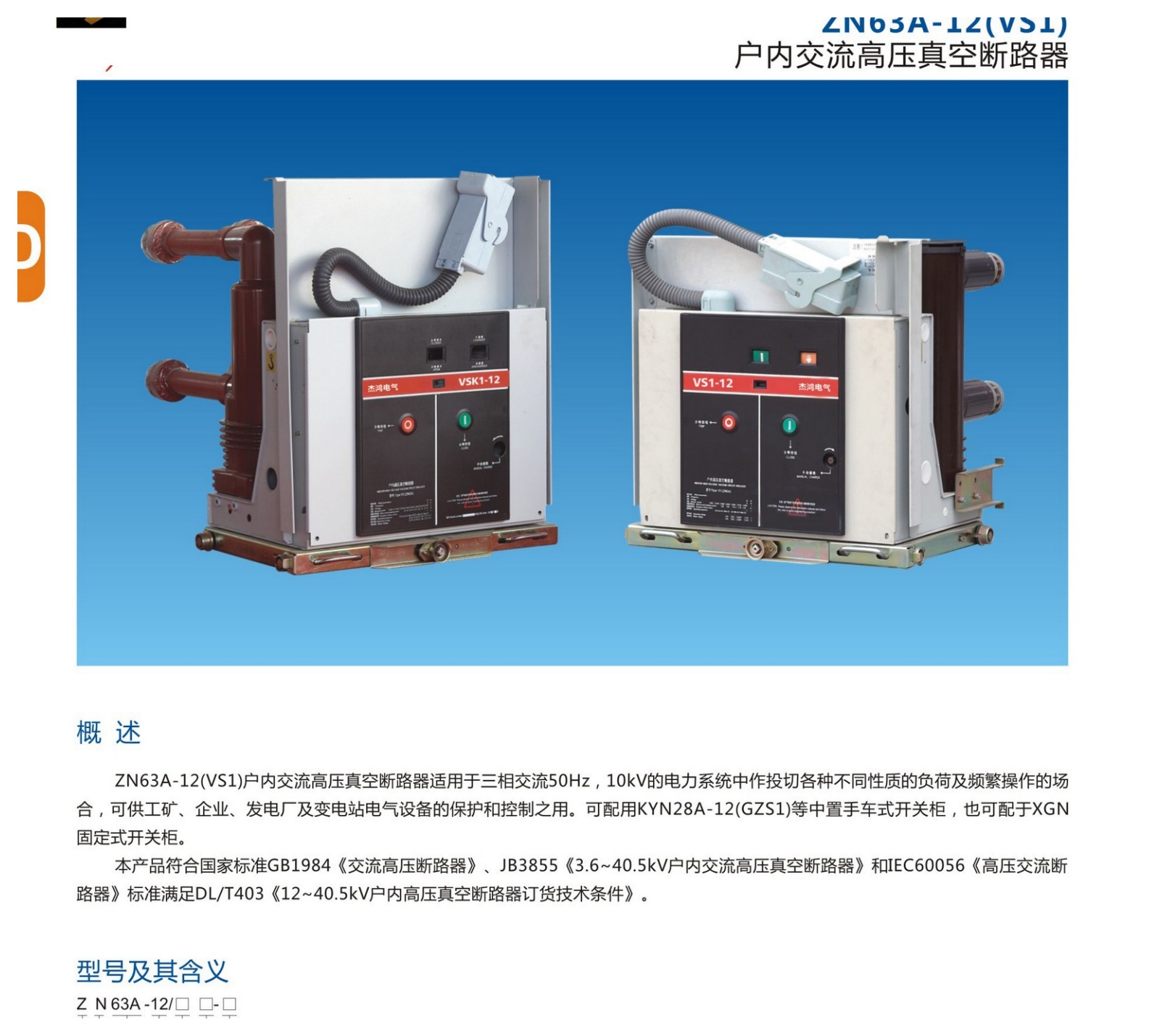

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | ZN63A-12 (VS1) Indoor Vacuum Circuit Breaker |
|---|---|
| Category | Vacuum Circuit Breakers |
| Representative range / models | ZN63A-12 (VS1), 630-5000 A |
| Standards / reference basis | Catalogue ratings and project requirements confirmed by KOVYEL before supply |
| Typical applications | Indoor metal-clad switchgear; Substation feeder and transformer protection; Industrial medium-voltage distribution |
| Rated voltage | 12 kV |
| Rated current | 630-5000 A depending on model |
| Short-circuit breaking current | 16, 20, 25, 31.5, 40 or 50 kA |
| Peak/making current | 40-130 kA depending on model |
| Short-time current duration | 4 s |
| Mechanical endurance | 10,000 or 20,000 operations |
| Single capacitor-bank switching | Up to 630 A |
| Back-to-back capacitor-bank switching | Up to 400 A |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
