Catalogue product

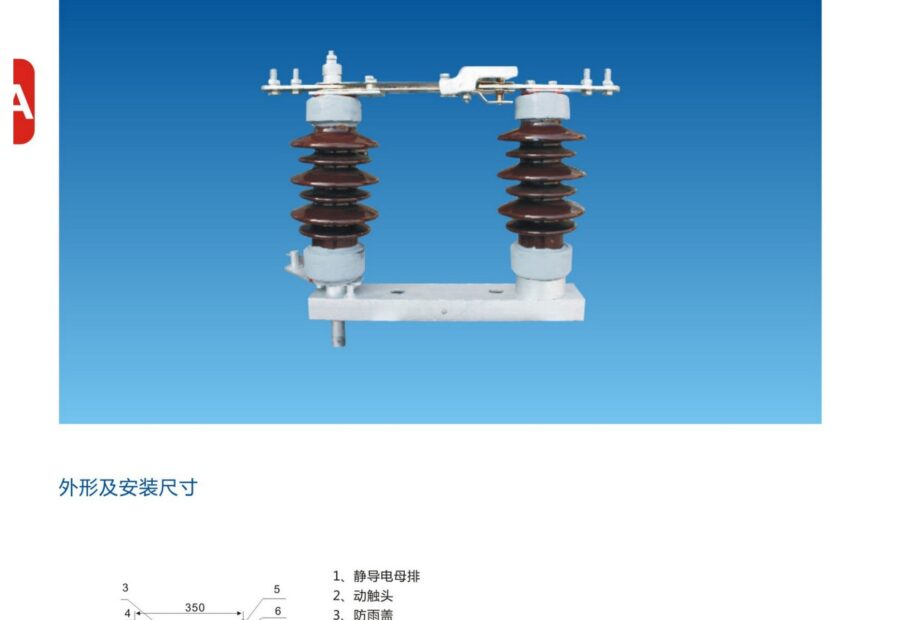

GW4 Outdoor High-Voltage Disconnect Switch
KOVYEL GW4 outdoor high-…
COMPLETE PRODUCT RANGE · 11kV–220kV+
Outdoor Disconnect Switches
BROWSE THE RANGE
Catalogue products with project-specific matching.
Final model, material, dimensions, standard and test scope are confirmed against the approved RFQ data.
Catalogue product

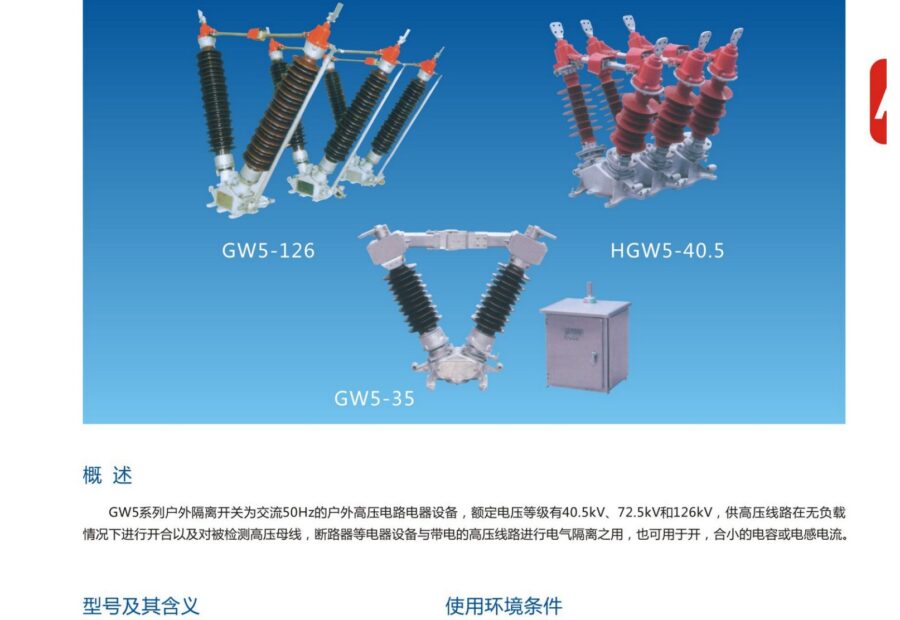

GW5 Outdoor High-Voltage Disconnect Switch
KOVYEL GW5 outdoor high-…
Send the project basics for a coordinated supply proposal.
Start project inquiry →VOLTAGE-SYSTEM CHECKPOINT
Confirm the system basis before selecting individual products.
| System voltage | 220kV |
|---|---|
| Typical equipment class | 245kV class where specified |
| Typical application | High-voltage transmission systems |
| Coordinated supply scope | Lattice/tubular towers; bundled conductors; OPGW; insulator strings; fittings; spacer dampers; grounding |
| Buyer data required | Voltage and insulation schedule; bundle geometry; conductor and OPGW; string loads; tower schedule; wind/ice; pollution; corona requirements |
Buyer questions answered before quotation
Why is bundle geometry required?
Sub-conductor number, spacing and diameter control spacer-damper selection, fittings, corona performance and string arrangements.
Can 220kV fittings be selected by conductor size alone?
No. Rated mechanical load, string configuration, attachment dimensions, corona requirements and environmental loading are also required.
What should the inspection plan include?
Approved drawings, material certificates, dimensional checks, galvanizing, mechanical/electrical tests and BOM-coded packing records.
