ZSSP 10-35 kV Rectifier Transformer
Rectifier & Furnace Transformers · Drawing-confirmed project supply
KOVYEL ZSSP rectifier transformers provide phase conversion and voltage adaptation for electrochemical, traction, drive, HVDC and general industrial rectifier systems.
Selection begins with the actual project interface.
KOVYEL ZSSP rectifier transformers provide phase conversion and voltage adaptation for electrochemical, traction, drive, HVDC and general industrial rectifier systems.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

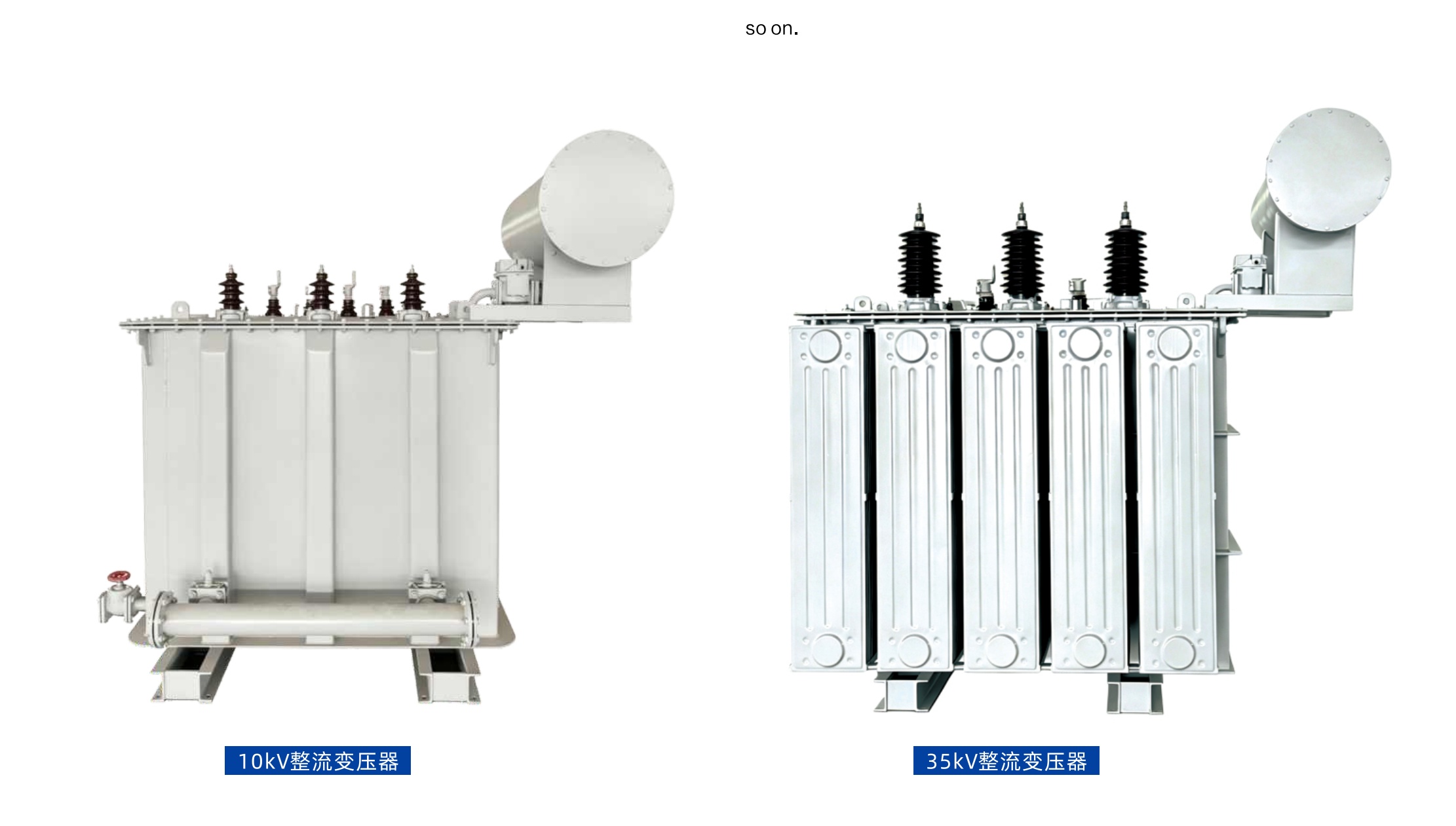

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

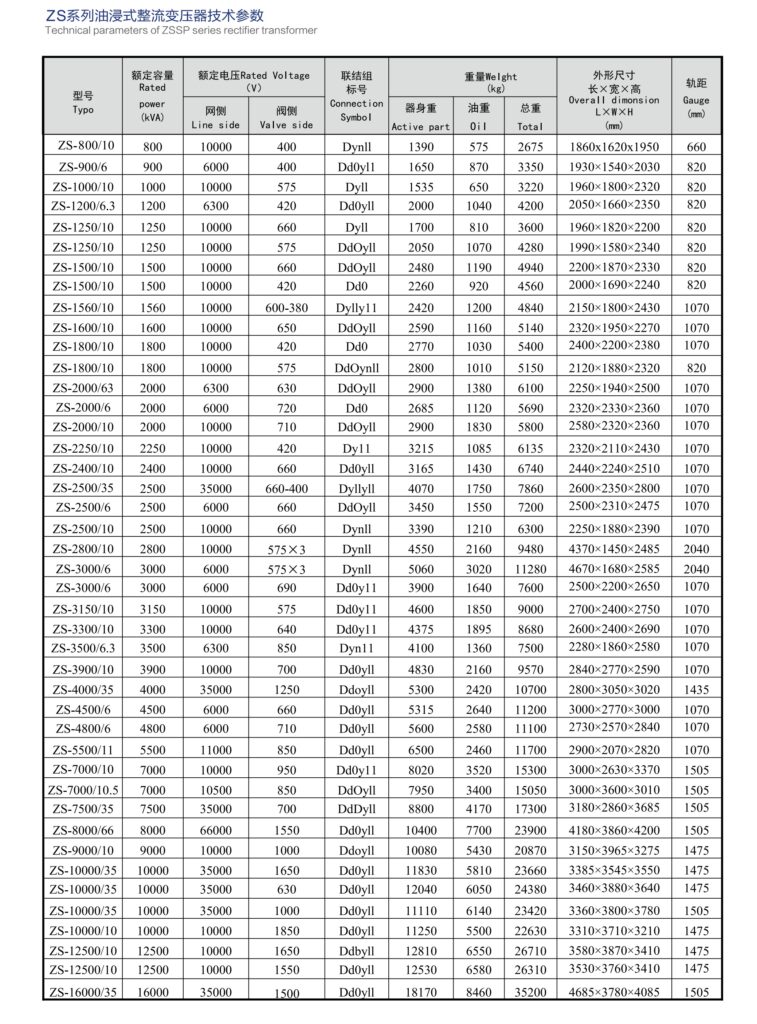

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | ZSSP 10-35 kV Rectifier Transformer |
|---|---|
| Category | Rectifier & Furnace Transformers |
| Representative range / models | ZSSP and ZS series, 800-16,000 kVA |
| Typical applications | Electrochemical rectifier systems; Traction and variable-speed drives; HVDC and industrial DC power systems |
| Rated capacity | 800-16,000 kVA |
| Grid-side voltage | 6, 10, 22 or 35 kV depending on model |
| Valve-side voltage | 400-1,650 V depending on model |
| Phase arrangements | Single-phase or three-phase; 3, 6, 12 or more pulse configurations |
| Connection groups | Dyn11, Yyn0, Dd0y11 and related project configurations |
| Insulation medium | Transformer oil or dry insulation by project |
| Cooling options | Natural, forced-air or forced-water cooling |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Electrochemical rectifier systems
Project-specific pulse configuration
Traction and variable-speed drives
Wide grid and valve voltage range
HVDC and industrial DC power systems
Multiple cooling arrangements
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
