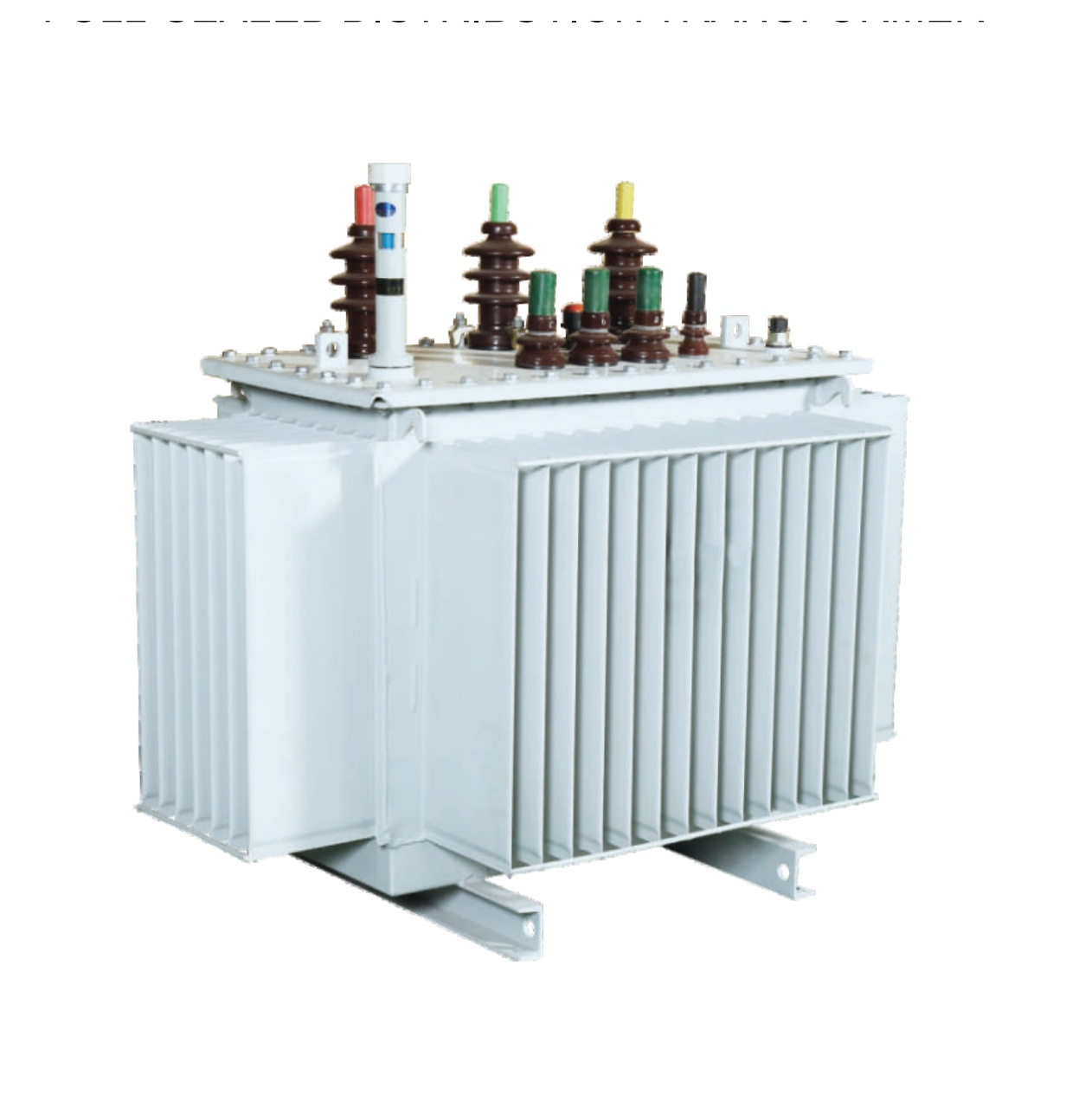

S22-M Low-Loss Oil-Immersed Distribution Transformer
Oil-Immersed Distribution Transformers · Drawing-confirmed project supply
KOVYEL S22-M distribution transformers use a sealed oil-immersed design with reduced losses, low noise and model options for copper or aluminium windings.
Selection begins with the actual project interface.
KOVYEL S22-M distribution transformers use a sealed oil-immersed design with reduced losses, low noise and model options for copper or aluminium windings.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

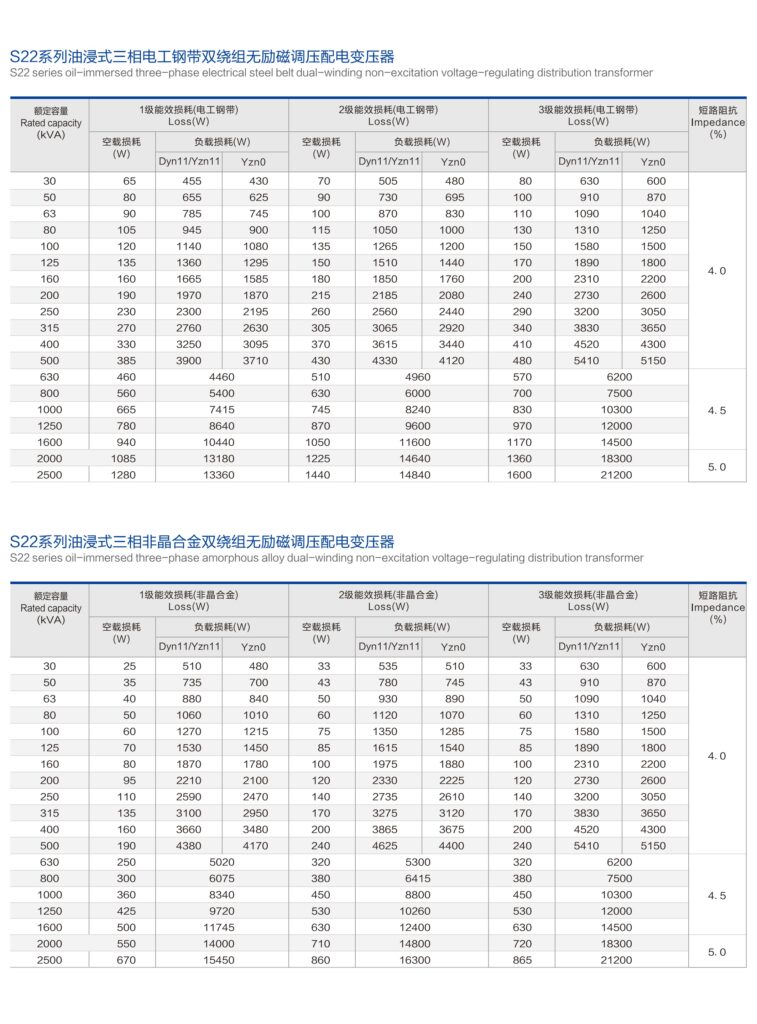

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | S22-M Low-Loss Oil-Immersed Distribution Transformer |
|---|---|
| Category | Oil-Immersed Distribution Transformers |
| Representative range / models | 30-2,500 kVA; copper or aluminium winding options |
| Typical applications | Urban and rural distribution networks; Industrial and commercial power distribution; Substations and power plants |
| Rated capacity | 30-2,500 kVA |
| Winding options | Copper or aluminium |
| Loss grades | Catalogue grades 1, 2 and 3 |
| Connection groups | Dyn11/Yzn11 or Yzn0 depending on model |
| Short-circuit impedance | 4-5% depending on rating |
| Noise | Low-noise design; project limits confirmed before supply |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Urban and rural distribution networks
Reduced no-load and load losses
Industrial and commercial power distribution
Sealed construction
Substations and power plants
Copper and aluminium winding options
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
