20 kV S13-M Oil-Immersed Distribution Transformer
Oil-Immersed Distribution Transformers · Drawing-confirmed project supply
KOVYEL S13-M 20 kV three-phase distribution transformers use a fully sealed oil-immersed design for efficient utility and industrial distribution service.
Selection begins with the actual project interface.
KOVYEL S13-M 20 kV three-phase distribution transformers use a fully sealed oil-immersed design for efficient utility and industrial distribution service.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

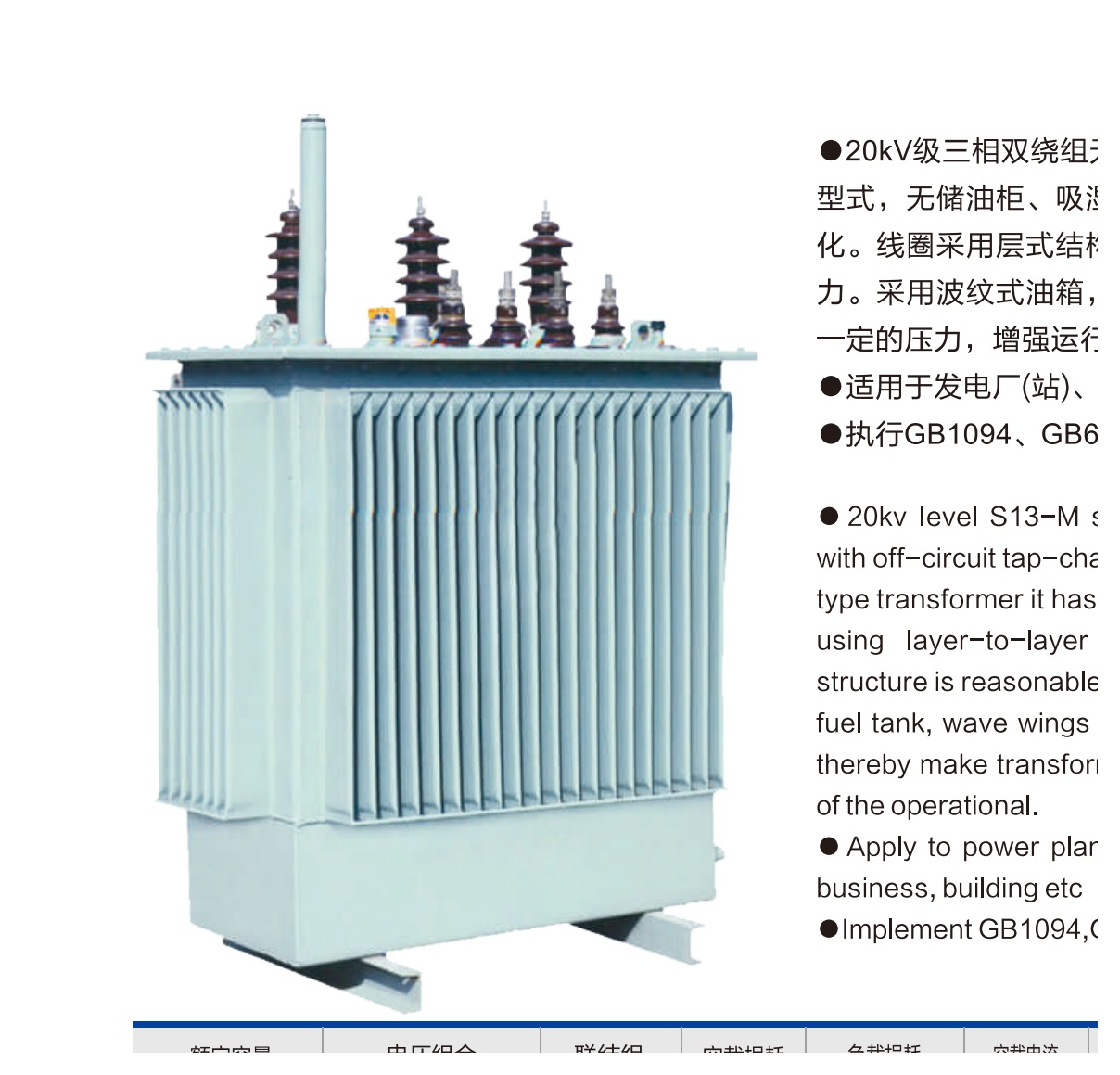

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

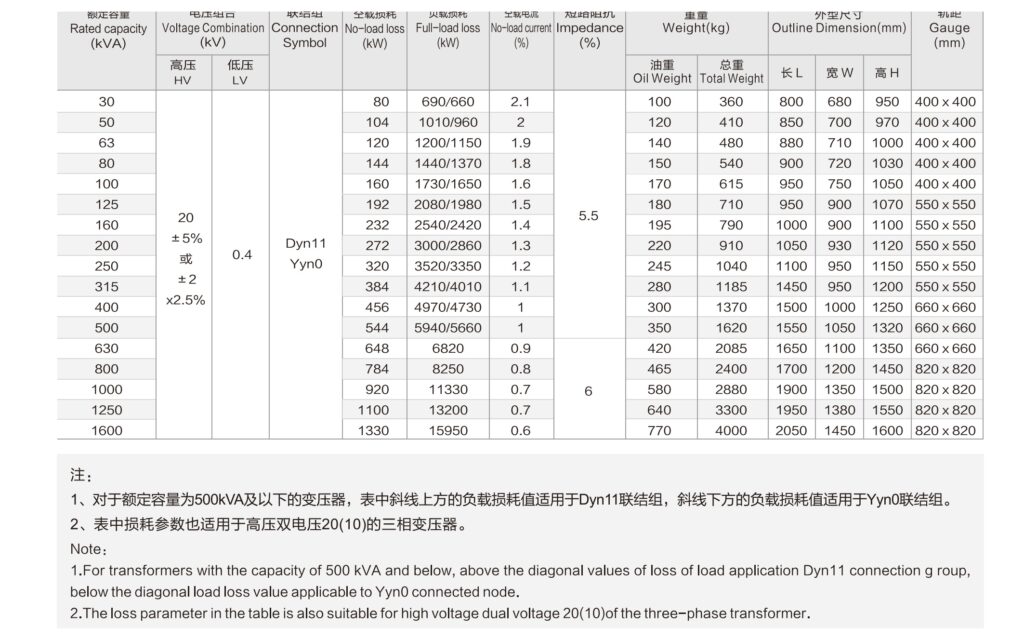

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | 20 kV S13-M Oil-Immersed Distribution Transformer |
|---|---|
| Category | Oil-Immersed Distribution Transformers |
| Representative range / models | 30-1,600 kVA; 20/0.4 kV |
| Typical applications | Urban and rural distribution networks; Industrial and commercial power distribution; Substations and power plants |
| Rated capacity | 30-1,600 kVA |
| Voltage ratio | 20/0.4 kV |
| Tap range | ±5% or ±2 × 2.5% |
| Connection groups | Dyn11 or Yyn0 |
| Short-circuit impedance | 5.5% up to 500 kVA; 6% from 630 kVA |
| No-load current | 2.1-0.6% depending on rating |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Urban and rural distribution networks
Fully sealed oil-immersed construction
Industrial and commercial power distribution
S13 low-loss design
Substations and power plants
30-1600 kVA range
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
