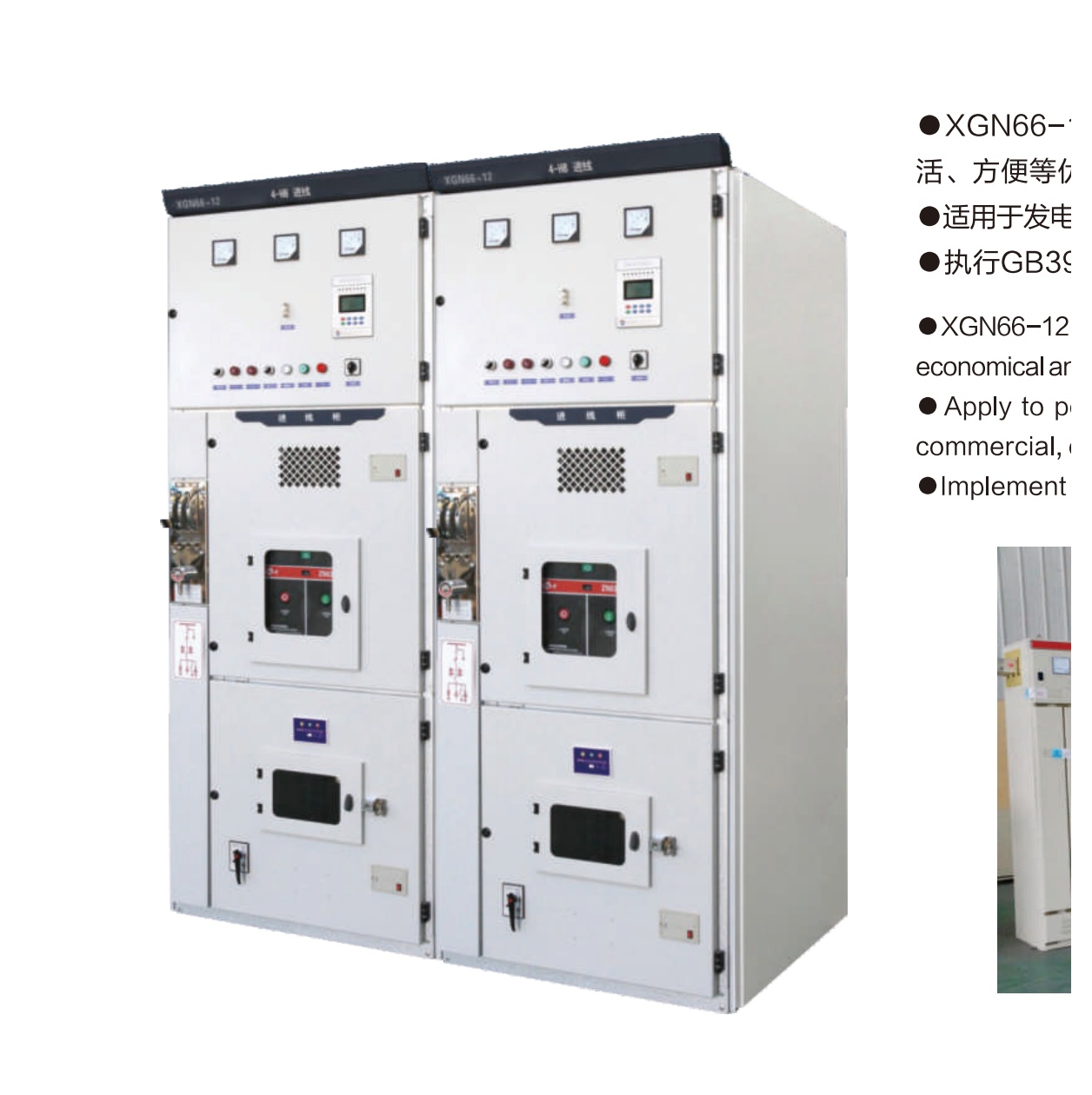

XGN66-12 Fixed Metal-Enclosed Switchgear
Medium-Voltage Switchgear & Ring Main Units · Drawing-confirmed project supply
KOVYEL XGN66-12 indoor fixed switchgear provides economical 12 kV distribution switching with 630 A bus and breaker ratings.
Selection begins with the actual project interface.
KOVYEL XGN66-12 indoor fixed switchgear provides economical 12 kV distribution switching with 630 A bus and breaker ratings.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

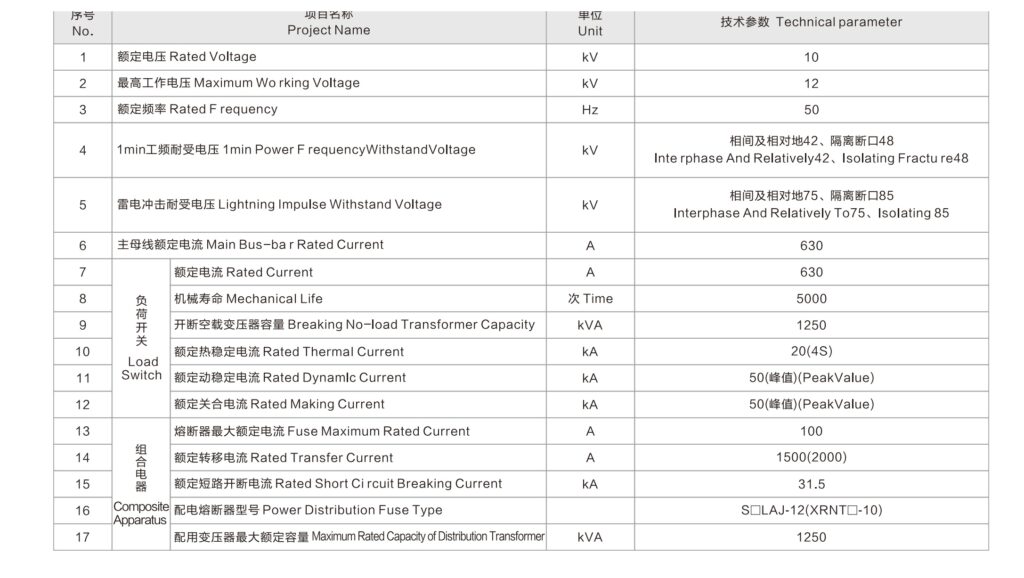

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | XGN66-12 Fixed Metal-Enclosed Switchgear |
|---|---|
| Category | Medium-Voltage Switchgear & Ring Main Units |
| Representative range / models | XGN66-12, 630 A |
| Typical applications | Medium-voltage substations; Industrial and commercial distribution systems; Utility and infrastructure projects |
| Rated voltage | 10 kV |
| Maximum operating voltage | 12 kV |
| Rated frequency | 50 Hz |
| Rated current | 630 A |
| Mechanical life | 5000 operations |
| Transformer no-load breaking capacity | 1250 kVA |
| Rated thermal current | 20 kA for 4 s |
| Short-circuit breaking current | 31.5 kA with fuse protection |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Medium-voltage substations
Compact fixed cabinet
Industrial and commercial distribution systems
630 A rated bus
Utility and infrastructure projects
Fuse and load-switch configurations
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
