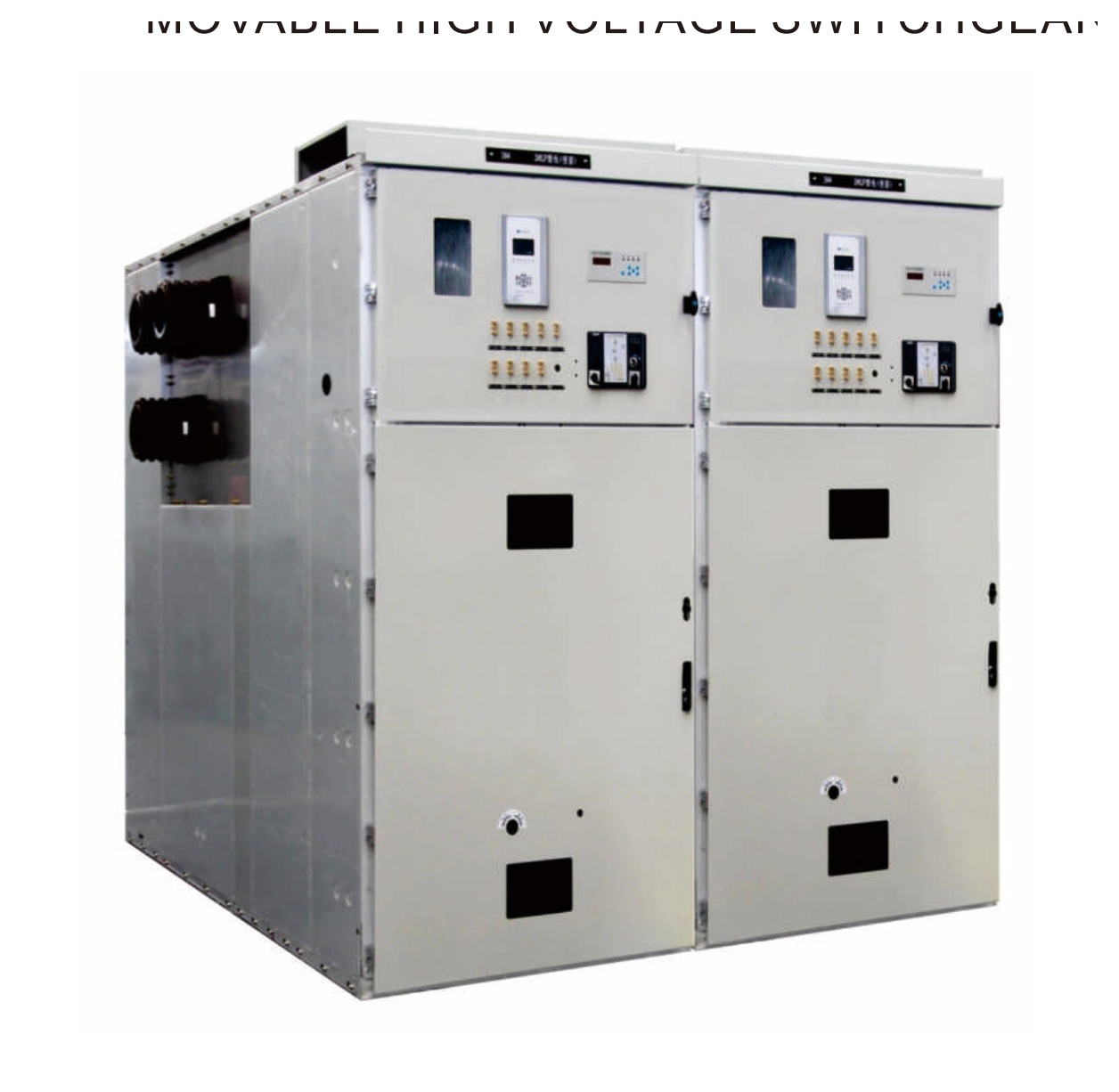

KYN61-40.5 Withdrawable Metal-Clad Switchgear
Medium-Voltage Switchgear & Ring Main Units · Drawing-confirmed project supply
KOVYEL KYN61-40.5 indoor metal-clad switchgear is designed for 40.5 kV systems with withdrawable vacuum circuit breakers and rated currents up to 2000 A.
Selection begins with the actual project interface.
KOVYEL KYN61-40.5 indoor metal-clad switchgear is designed for 40.5 kV systems with withdrawable vacuum circuit breakers and rated currents up to 2000 A.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

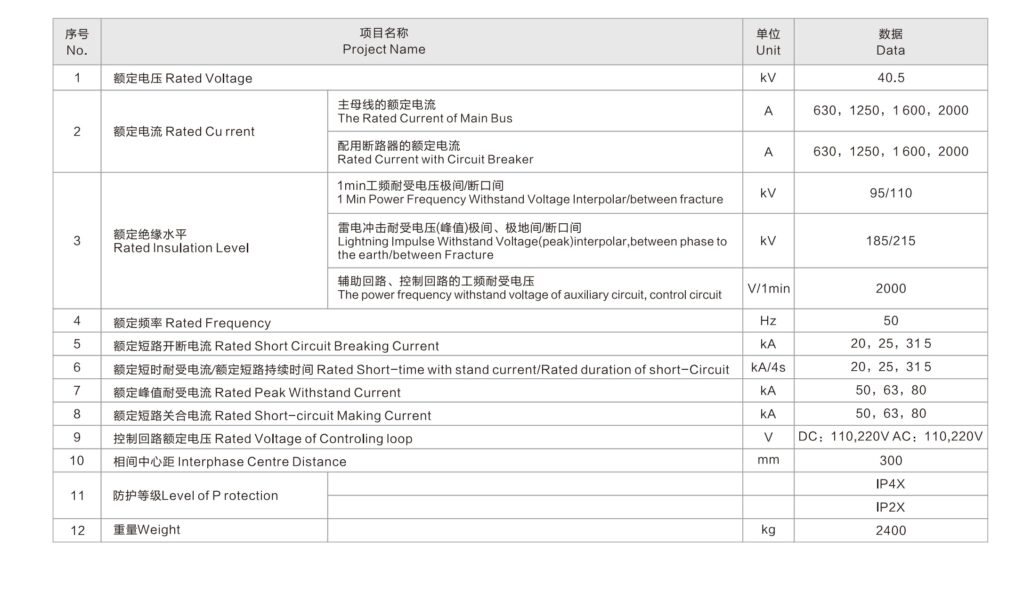

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | KYN61-40.5 Withdrawable Metal-Clad Switchgear |
|---|---|
| Category | Medium-Voltage Switchgear & Ring Main Units |
| Representative range / models | KYN61-40.5, 630-2000 A |
| Typical applications | Medium-voltage substations; Industrial and commercial distribution systems; Utility and infrastructure projects |
| Rated voltage | 40.5 kV |
| Rated current | 630, 1250, 1600 or 2000 A |
| Short-circuit breaking current | 20, 25 or 31.5 kA |
| Short-time withstand | 20, 25 or 31.5 kA for 4 s |
| Peak/making current | 50, 63 or 80 kA |
| Lightning impulse withstand | 185/215 kV |
| Protection degree | IP4X enclosure; IP2X internal |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Medium-voltage substations
Withdrawable vacuum circuit breaker
Industrial and commercial distribution systems
Metal-clad compartment design
Utility and infrastructure projects
40.5 kV system rating
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
