HXGN15-12 Metal-Enclosed Ring Main Switchgear
Medium-Voltage Switchgear & Ring Main Units · Drawing-confirmed project supply
KOVYEL HXGN15-12 metal-enclosed switchgear uses SF6 load-break technology for compact 12/24 kV ring-network and secondary substation applications.
Selection begins with the actual project interface.
KOVYEL HXGN15-12 metal-enclosed switchgear uses SF6 load-break technology for compact 12/24 kV ring-network and secondary substation applications.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

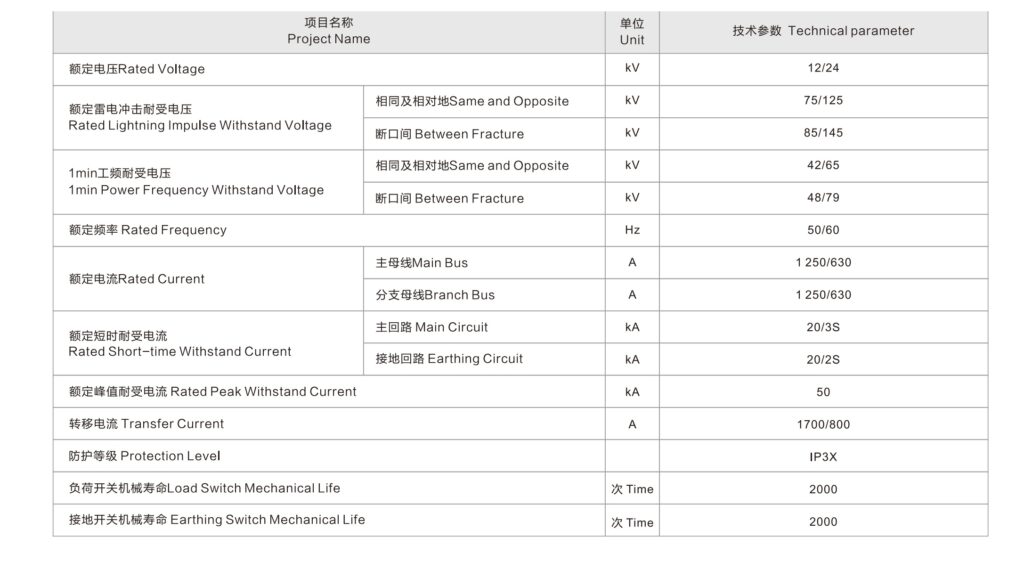

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | HXGN15-12 Metal-Enclosed Ring Main Switchgear |
|---|---|
| Category | Medium-Voltage Switchgear & Ring Main Units |
| Representative range / models | HXGN15-12, 12/24 kV |
| Typical applications | Medium-voltage substations; Industrial and commercial distribution systems; Utility and infrastructure projects |
| Rated voltage | 12/24 kV |
| Rated current | 1250/630 A main bus; 1250/630 A branch bus |
| Lightning impulse withstand | 75/125 kV; 85/145 kV across open gap |
| Power-frequency withstand | 42/65 kV; 48/79 kV across open gap |
| Short-time withstand | 20 kA for 3 s main circuit; 20 kA for 2 s earthing circuit |
| Peak withstand | 50 kA |
| Protection degree | IP3X |
| Mechanical life | 2000 operations |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Medium-voltage substations
SF6 load-break switch
Industrial and commercial distribution systems
Metal-enclosed modular cabinet
Utility and infrastructure projects
Ring-network and feeder applications
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
