GW5 Outdoor High-Voltage Disconnect Switch
Outdoor Disconnect Switches · Drawing-confirmed project supply
KOVYEL GW5 outdoor high-voltage disconnect switches provide dependable line isolation for substations from 35 to 145 kV.
Selection begins with the actual project interface.
KOVYEL GW5 outdoor high-voltage disconnect switches provide dependable line isolation for substations from 35 to 145 kV.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

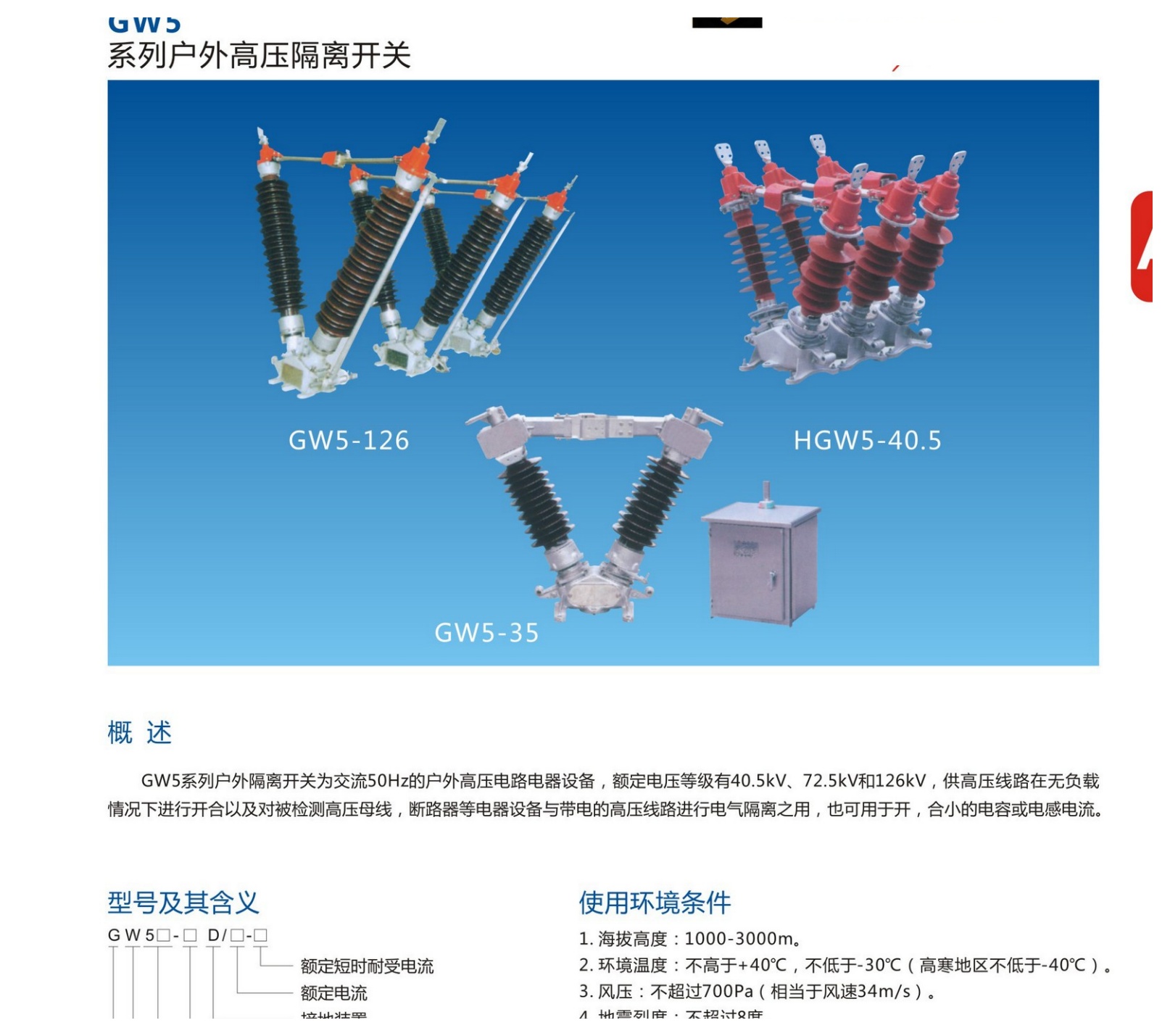

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

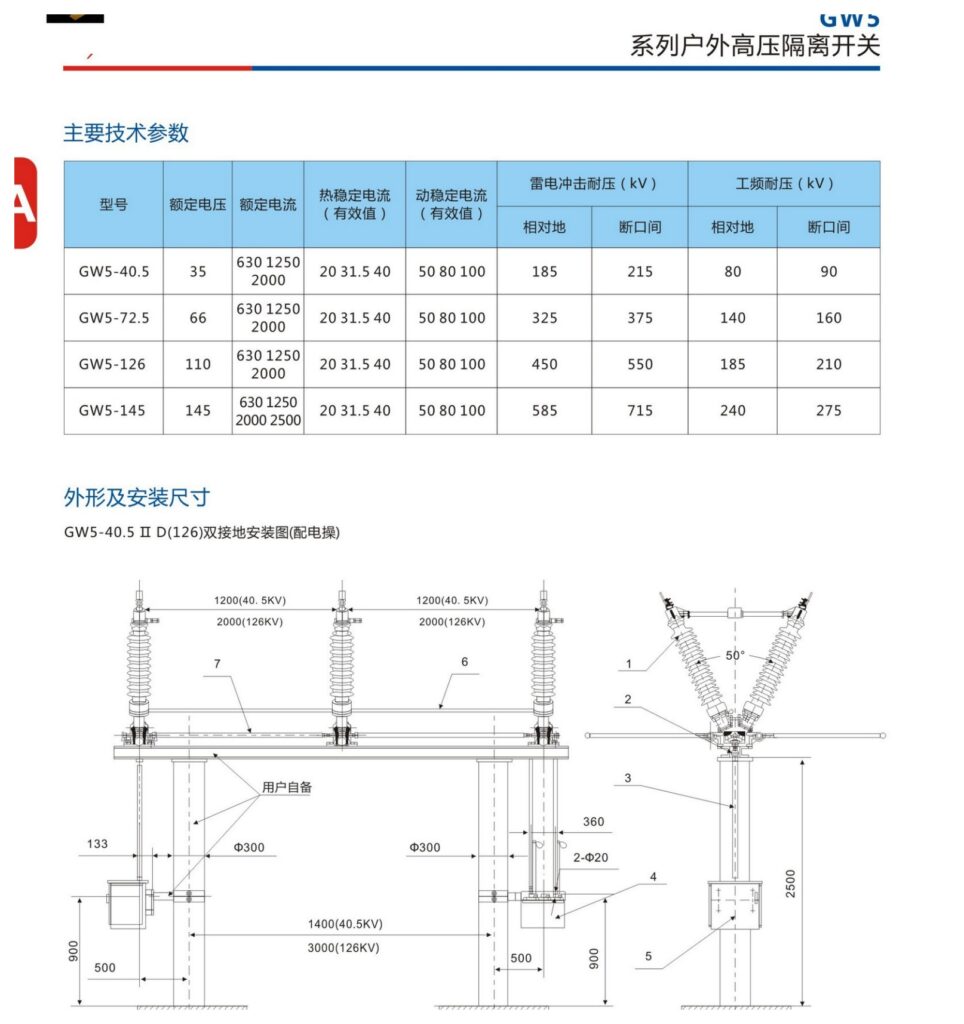

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | GW5 Outdoor High-Voltage Disconnect Switch |
|---|---|
| Category | Outdoor Disconnect Switches |
| Representative range / models | GW5-40.5 to GW5-145 |
| Standards / reference basis | Catalogue ratings and project requirements confirmed by KOVYEL before supply |
| Typical applications | Overhead distribution and substation switching; New-build and replacement projects; Utility and industrial power systems |
| Rated system voltage | 35, 66, 110 or 145 kV |
| Rated current | 630, 1250 or 2000 A |
| Short-time withstand current | 20, 31.5 or 40 kA |
| Peak withstand current | 50, 80 or 100 kA |
| Lightning impulse withstand | 185-715 kV across the model range |
| Power-frequency withstand | 80-275 kV across the model range |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Overhead distribution and substation switching
35-145 kV voltage range
New-build and replacement projects
Up to 2000 A rated current
Utility and industrial power systems
Multiple short-circuit ratings
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
