GW1-12G(D) Outdoor AC Disconnect Switch
Outdoor Disconnect Switches · Drawing-confirmed project supply
KOVYEL GW1-12G(D) outdoor disconnect switches provide visible isolation for 12 kV AC systems, with current options up to 2000 A and optional earthing arrangements.
Selection begins with the actual project interface.
KOVYEL GW1-12G(D) outdoor disconnect switches provide visible isolation for 12 kV AC systems, with current options up to 2000 A and optional earthing arrangements.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

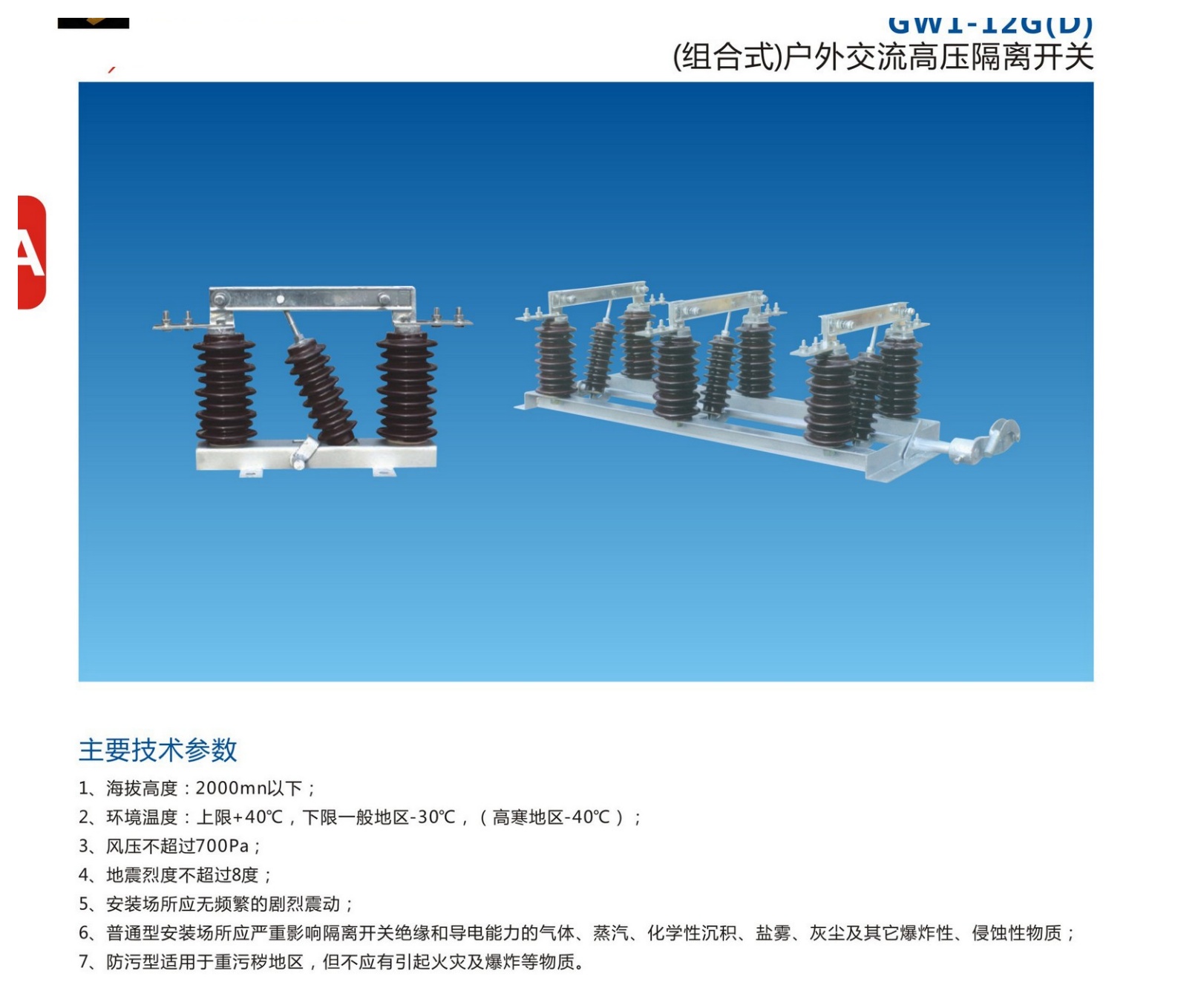

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

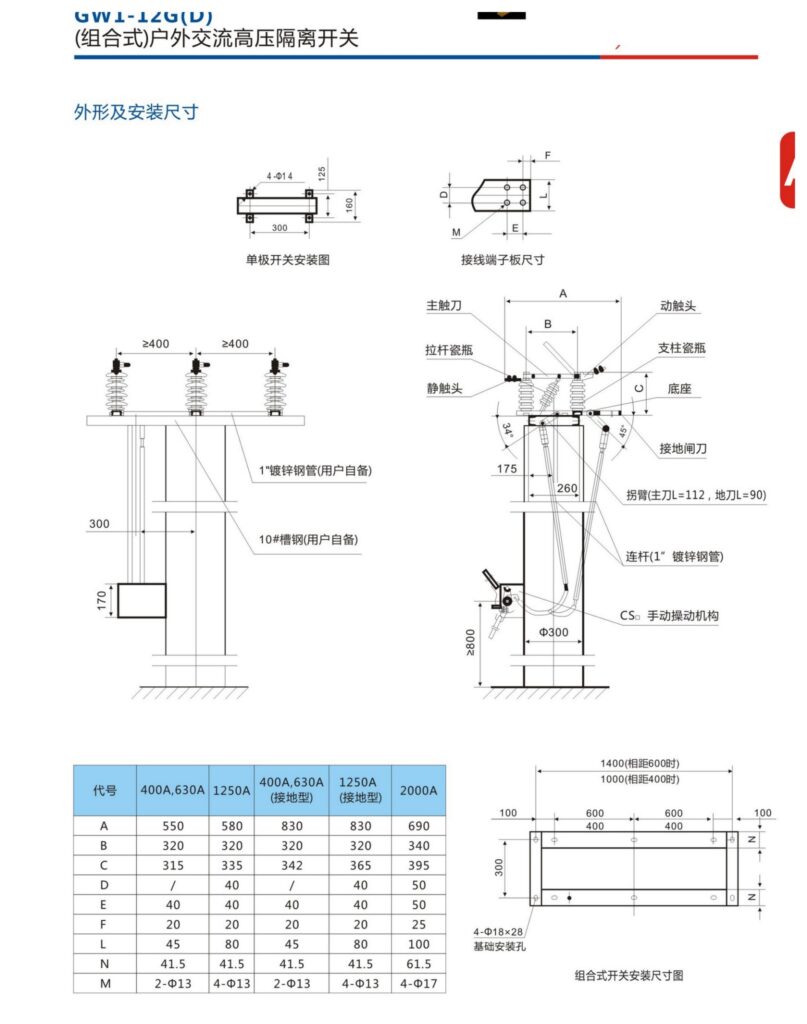

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | GW1-12G(D) Outdoor AC Disconnect Switch |
|---|---|
| Category | Outdoor Disconnect Switches |
| Representative range / models | GW1-12G(D), 400-2000 A |
| Standards / reference basis | Catalogue ratings and project requirements confirmed by KOVYEL before supply |
| Typical applications | Overhead distribution and substation switching; New-build and replacement projects; Utility and industrial power systems |
| Rated voltage | 12 kV |
| Rated current | 400, 630, 1250 or 2000 A |
| Installation altitude | Up to 2000 m |
| Ambient temperature | -40 to +40 °C |
| Maximum wind pressure | 700 Pa |
| Seismic intensity | Up to level 8 |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Overhead distribution and substation switching
Visible outdoor isolation
New-build and replacement projects
Optional earthing configuration
Utility and industrial power systems
Current ratings up to 2000 A
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
