KOVYEL · OUTDOOR DISCONNECT SWITCHES GW4 Outdoor High-Voltage Disconnect Switch
OUTDOOR DISCONNECT SWITCH

GW4 Outdoor High-Voltage Disconnect Switch

Outdoor Disconnect Switches · Drawing-confirmed project supply

KOVYEL GW4 outdoor high-voltage disconnect switches provide three-pole isolation for substations and transmission systems from 35 to 220 kV.

Drawing-Matched Project RFQ Supply Catalogue ratings and project requirements confirmed by KOVYEL before supply
Product categoryOutdoor Disconnect Switches
Representative rangeGW4-40.5 to GW4-252
Technical basisCatalogue ratings and project requirements confirmed by KOVYEL before supply
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

GW4 Outdoor High-Voltage Disconnect Switch: product overview

KOVYEL GW4 outdoor high-voltage disconnect switches provide three-pole isolation for substations and transmission systems from 35 to 220 kV.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

PRODUCT IMAGES

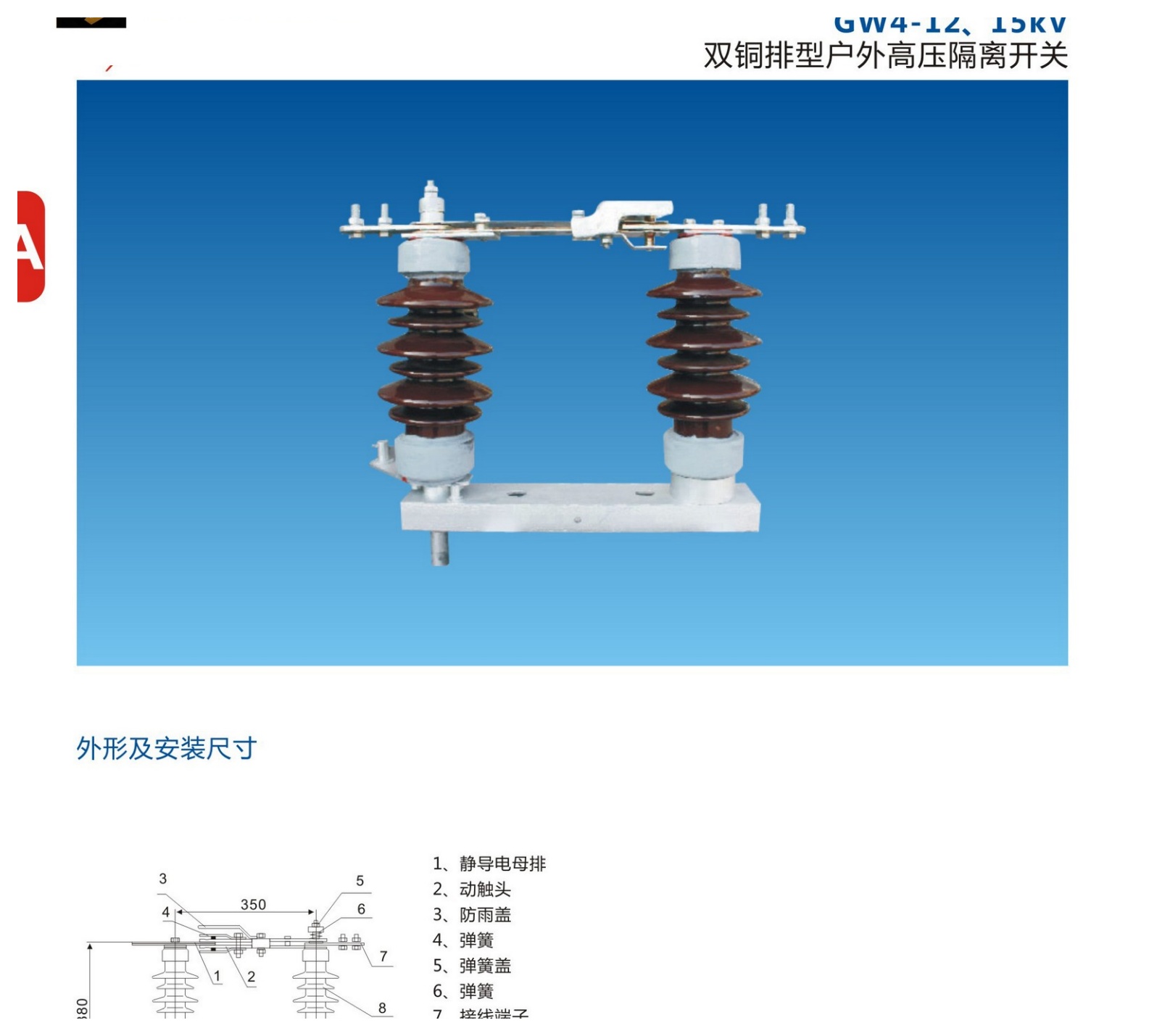

Review the available construction and product views.

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

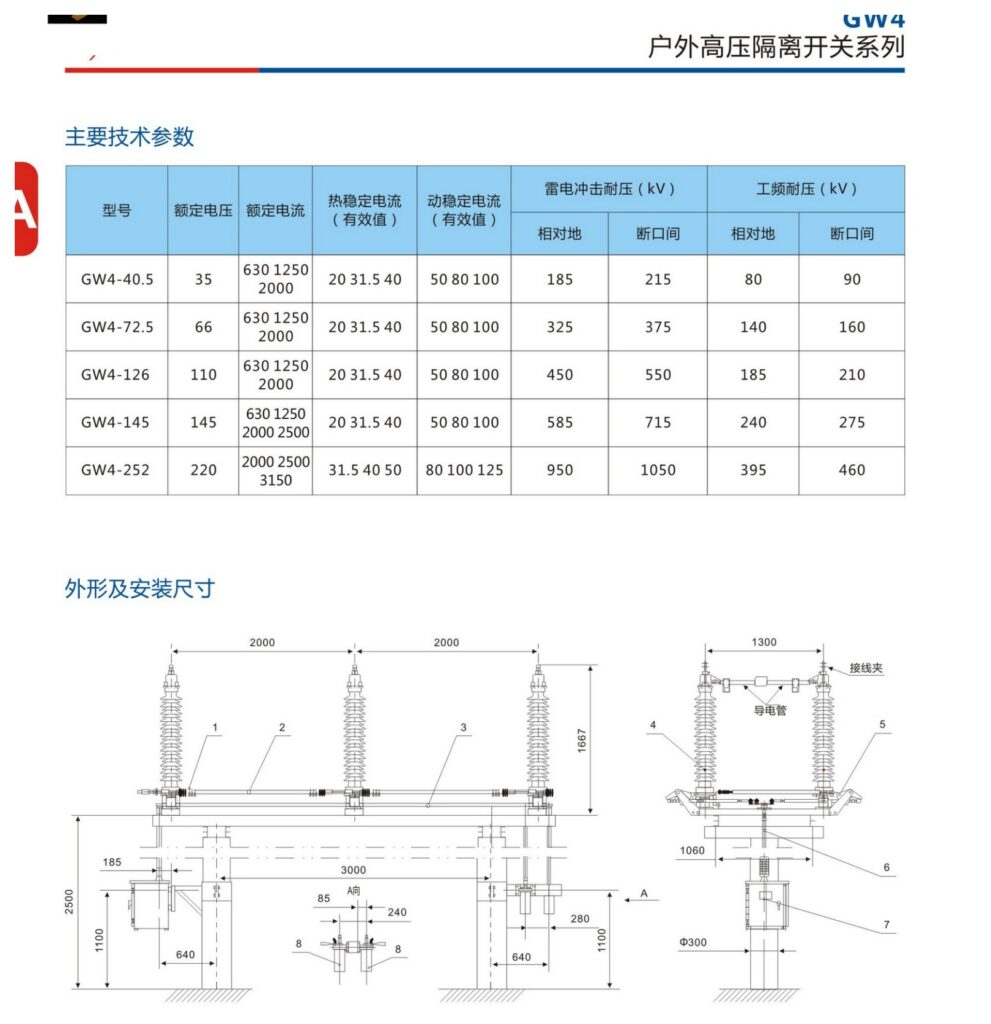

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductGW4 Outdoor High-Voltage Disconnect Switch
CategoryOutdoor Disconnect Switches
Representative range / modelsGW4-40.5 to GW4-252
Standards / reference basisCatalogue ratings and project requirements confirmed by KOVYEL before supply
Typical applicationsOverhead distribution and substation switching; New-build and replacement projects; Utility and industrial power systems
Rated system voltage35, 66, 110, 145 or 220 kV
Rated current630-3150 A depending on model
Short-time withstand current20-50 kA depending on model
Peak withstand current50-125 kA
Lightning impulse withstand185-1050 kV across the model range
Power-frequency withstand80-460 kV across the model range
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

Overhead distribution and substation switching

35-220 kV model range

02

New-build and replacement projects

Up to 3150 A rated current

03

Utility and industrial power systems

Substation-class insulation ratings

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

For purchasing teams and project engineers: confirm the exact GW4 Outdoor High-Voltage Disconnect Switch configuration, included components and required acceptance documents before comparing quotations.

GW4 Outdoor High-Voltage Disconnect Switch: switching function, fuse interface and layout approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for GW4 Outdoor High-Voltage Disconnect Switch.

ItemInformation for technical approval
01Exact offered model and purchase or BOQ item for GW4 Outdoor High-Voltage Disconnect Switch, with the required drawing or specification revision.
02Required isolation and switching functions and actual electrical duties.
03Mechanism, interlocks, terminal geometry and indoor or outdoor arrangement.
04Mounting and accessory scope and required model-specific acceptance records.

Define the BOQ supply scope

Define the exact switching function and operating arrangement on the approved single-line diagram. List fuse bases or fuse links where applicable, mechanisms, interlocks, terminals and support components explicitly. Confirm whether the offered device performs isolation, load switching or another specified duty; do not infer interrupting capability from a series name.

Technical submittals and inspection requirements

Include the required equipment data sheet, layout, terminal drawing and operating/interlock schedule. State the specified electrical duties and acceptance records, then confirm the offered configuration and document availability before purchase.

Packing, identification and delivery

Align equipment and mechanism identification with the project tags. Specify how linkages, handles, terminals and other separately packed parts should be marked and reconciled.

Quotation and order planning

Send quantities by exact model and configuration, destination, requested delivery date and required quotation terms. Identify complete assemblies, loose components and spares separately. Ask the quotation to confirm minimum order quantity where applicable, delivery proposal, packing, inspection documents and any phased-shipment requirements. Agree the actual commercial and documentation scope before order release.

Buyer questions

Does a matching voltage class establish an acceptable switch?

Confirm the exact model, current and withstand duties, terminal geometry, mechanism, interlocks and installation layout against the approved specification as well as the voltage requirement.

How should GW4 Outdoor High-Voltage Disconnect Switch be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

PRODUCT SELECTION SUMMARY

GW4 Outdoor High-Voltage Disconnect Switch: key facts for technical buyers.

Concise catalogue facts for model comparison, product matching and AI-assisted technical research.

What is GW4 Outdoor High-Voltage Disconnect Switch?

KOVYEL GW4 outdoor high-voltage disconnect switches provide three-pole isolation for substations and transmission systems from 35 to 220 kV. The listed range is GW4-40.5 to GW4-252.

Which models or ratings are covered?

The published KOVYEL range is GW4-40.5 to GW4-252. Final configuration is confirmed against the required electrical, mechanical and dimensional data.

What information is needed to select GW4 Outdoor High-Voltage Disconnect Switch?

For a matched quotation, provide: Exact switch model, system voltage and highest equipment voltage; Rated current, short-time withstand current and duration, and peak withstand current; Insulation level, creepage distance, altitude, ambient temperature and pollution conditions; Main-switch and earthing-switch arrangement, operating mechanism, control voltage and interlocks; Pole spacing, mounting arrangement, terminal dimensions and approved substation layout; Quantity, applicable specification, test documents, destination and delivery requirements.
