JGW, JGH & JGP Cable Fixing Clamps
Single Cable Cleats · Drawing-confirmed project supply
KOVYEL JGW, JGWD, JGH and JGP cable fixing clamps secure single or trefoil power cables in substations, tunnels and cable supports. Aluminium and glass-fibre SMC bodies cover cable outside diameters from 28 to 210 mm.
Selection begins with the actual project interface.
KOVYEL JGW, JGWD, JGH and JGP cable fixing clamps secure single or trefoil power cables in substations, tunnels and cable supports. Aluminium and glass-fibre SMC bodies cover cable outside diameters from 28 to 210 mm.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JGW, JGH & JGP Cable Fixing Clamps |
|---|---|
| Category | Single Cable Cleats |
| Representative range / models | JGWD-3/4; JGH-01 to JGH-7; JGW-01 to JGW-10; JGP-01 to JGP-10; JGPD and related SMC models |
| Standards / reference basis | JGW, JGWD, JGH, JGP and JGPD dimensional tables and cable data confirmed by KOVYEL |
| Typical applications | Single power cable fixing; Trefoil cable support; Cable tunnel and tray installations; High-voltage cable restraint |

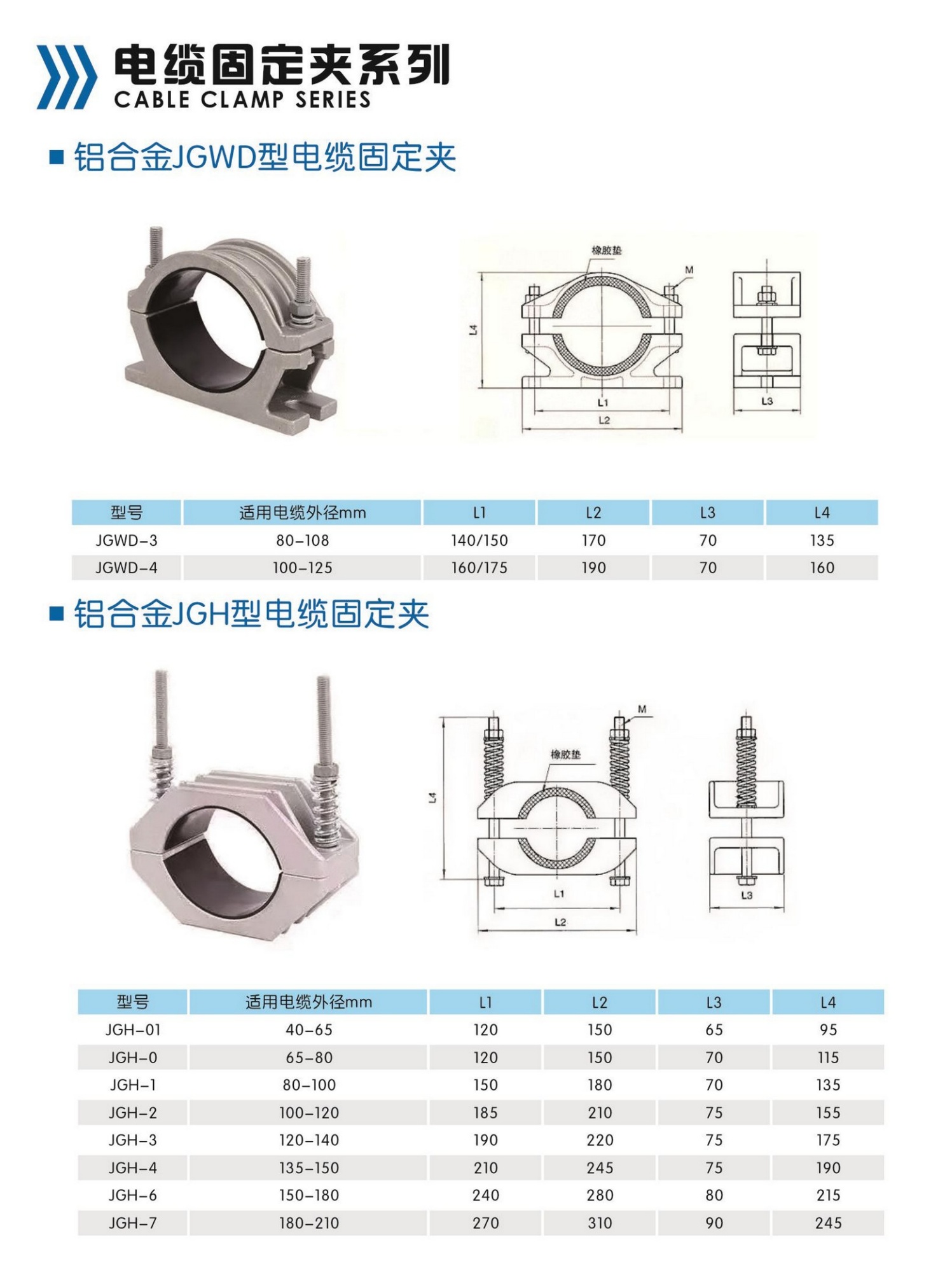

| JGWD | 80-125 mm cable outside diameter; two single-cable sizes |
| JGH | 40-210 mm cable outside diameter; JGH-01 through JGH-7 |

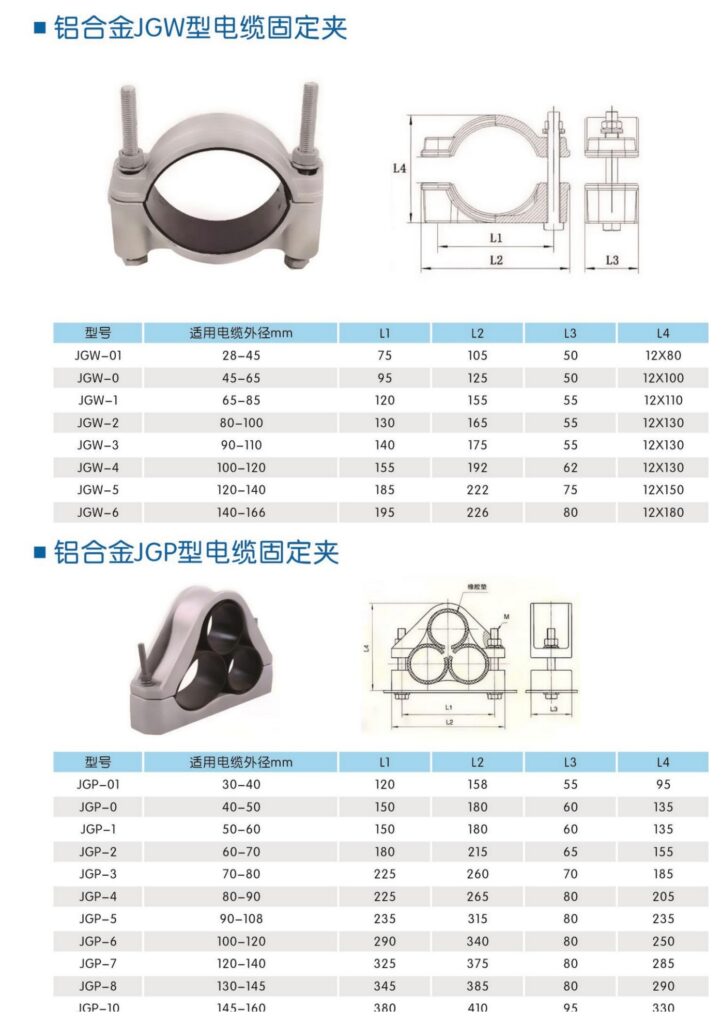

| JGW aluminium | 28-160 mm cable outside diameter; JGW-01 through JGW-6 |
| JGP trefoil | 30-160 mm cable outside diameter; JGP-01 through JGP-10 |
| JGW SMC | 28-200 mm cable outside diameter; JGW-1 through JGW-10 |
| JGPD SMC trefoil | 45-180 mm cable outside diameter; three-cable arrangement |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Single power cable fixing
Aluminium-alloy and SMC body options
Trefoil cable support
Single and trefoil cable forms
Cable tunnel and tray installations
Insulating liner options
High-voltage cable restraint
28-210 mm cable outside-diameter coverage
