JLSZW-10(GY) Combined Instrument Transformer
Instrument Transformers & Metering Units · Drawing-confirmed project supply
KOVYEL JLSZW-10(GY) combined instrument transformers integrate voltage and current measurement for outdoor 3, 6 and 10 kV metering systems.
Selection begins with the actual project interface.
KOVYEL JLSZW-10(GY) combined instrument transformers integrate voltage and current measurement for outdoor 3, 6 and 10 kV metering systems.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

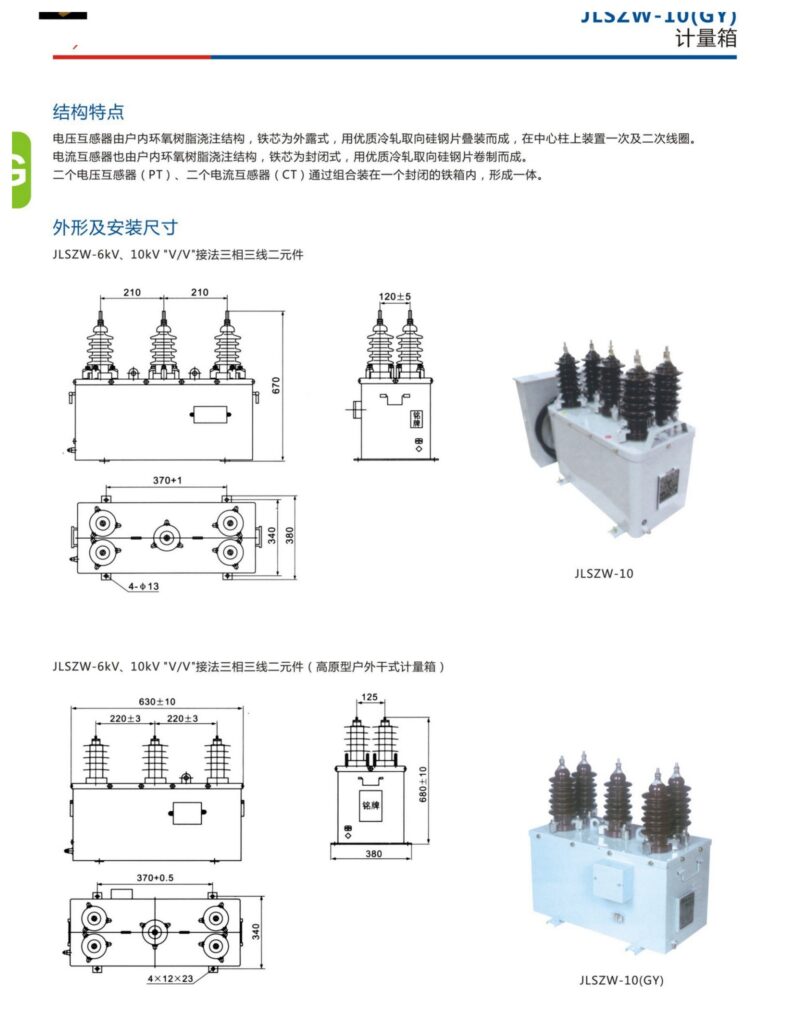

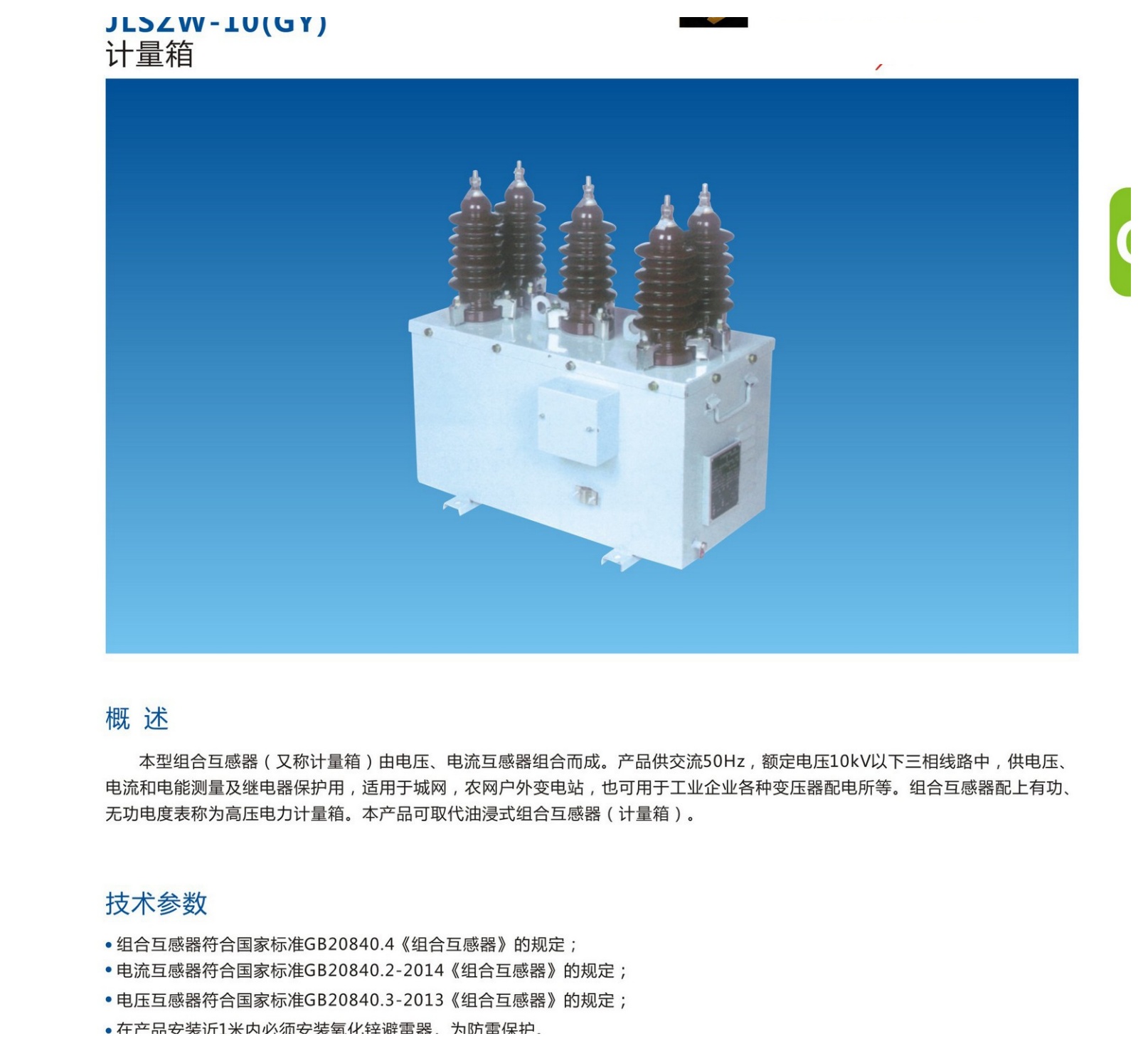

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JLSZW-10(GY) Combined Instrument Transformer |
|---|---|
| Category | Instrument Transformers & Metering Units |
| Representative range / models | JLSZW-3/6/10(GY) |
| Standards / reference basis | Catalogue ratings and project requirements confirmed by KOVYEL before supply |
| Typical applications | High-voltage energy metering; Utility revenue-metering installations; Outdoor distribution substations |
| Rated voltage class | 3, 6 or 10 kV |
| Voltage-transformer accuracy | 0.2 or 0.5 |
| Current-transformer accuracy | 0.2S or 0.2 |
| Voltage-transformer output | 15 or 30 VA |
| Current-transformer output | 10 or 15 VA |
| Dynamic current | 2.5 × short-time thermal current |
| Insulation levels | 3.6/25/40, 7.2/32/60 or 12/42/75 kV |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
